Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT100R-1000-VMFIXED IND 100UH 3.5A 80 MOHM TH |
4,729 |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 3.5 A | - | Unshielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.230" (31.24mm) |
|
|
PT150-1250-VMFIXED IND 150UH 5.7A 60 MOHM TH |
4,411 |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 5.7 A | - | Shielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" L x 0.700" W (31.75mm x 17.78mm) | 1.380" (35.05mm) |
|
|
PT150R-1250-VMFIXED IND 150UH 5.7A 60 MOHM TH |
2,869 |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 5.7 A | - | Unshielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" L x 0.700" W (31.75mm x 17.78mm) | 1.380" (35.05mm) |
|
|
PT150R-1500-VMFIXED IND 150UH 7.7A 50 MOHM TH |
4,113 |
|
Datasheet | PTR | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 7.7 A | - | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" L x 0.800" W (38.10mm x 20.32mm) | 1.630" (41.40mm) |
|
|
PT25-800-VMFIXED IND 25UH 6.6A 25 MOHM TH |
2,959 |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 25 µH | ±15% | 6.6 A | - | Shielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.08mm x 11.43mm) | 0.910" (23.11mm) |
|
|
PT25-900-VMFIXED IND 25UH 7A 20 MOHM TH |
1,455 |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 25 µH | ±15% | 7 A | - | Shielded | 20mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.010" (25.65mm) |
|
|
PT25R-680-VMFIXED IND 25UH 4.4A 35 MOHM TH |
1,397 |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 25 µH | ±15% | 4.4 A | - | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.650" L x 0.450" W (16.51mm x 11.43mm) | 0.790" (20.07mm) |
|

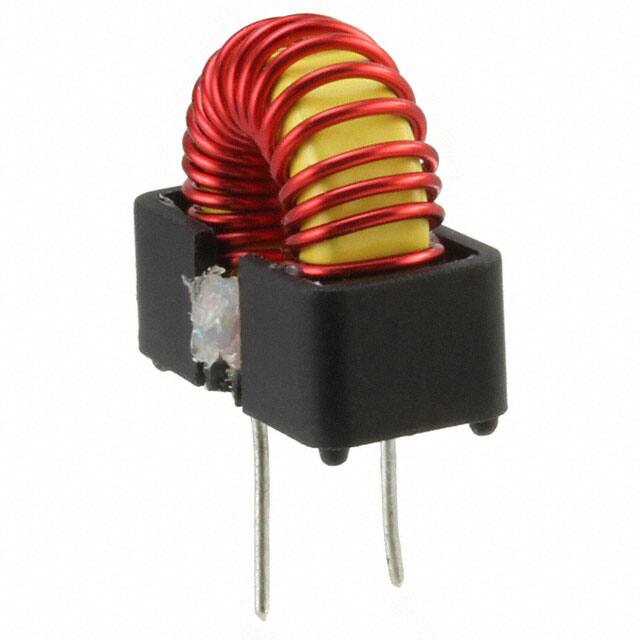

PT25R-800-VMFIXED IND 25UH 6.6A 25 MOHM TH |
1,622 |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 25 µH | ±15% | 6.6 A | - | Unshielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.08mm x 11.43mm) | 0.910" (23.11mm) |
|
|
PT300-1200-VMFIXED IND 300UH 3.3A 150 MOHM TH |
2,921 |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 300 µH | ±15% | 3.3 A | - | Shielded | 150mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" L x 0.700" W (31.75mm x 17.78mm) | 1.330" (33.78mm) |
|
|
PT300-1500-VMFIXED IND 300UH 5.5A 100 MOHM TH |
4,737 |
|
Datasheet | PT | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 300 µH | ±15% | 5.5 A | - | Shielded | 100mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" L x 0.800" W (38.10mm x 20.32mm) | 1.630" (41.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
