Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

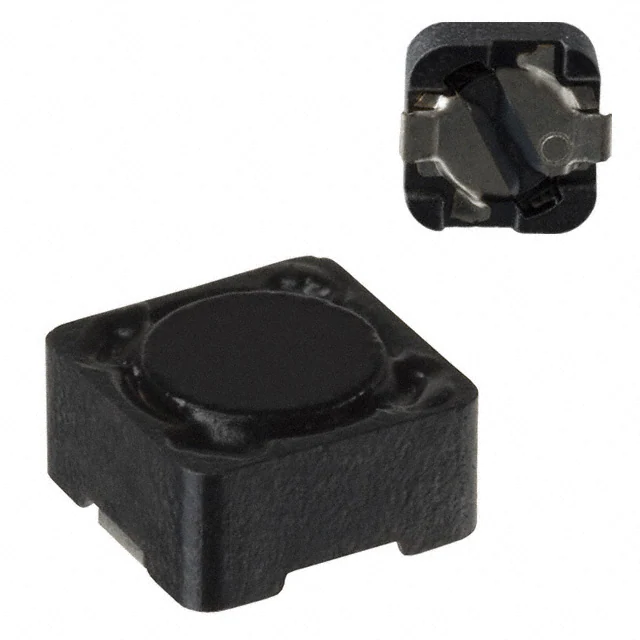

SPD73-563MFIXED IND 56UH 701MA 470MOHM SMD |
3,308 |
|
Datasheet | SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 701 mA | 701mA | Shielded | 470mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-564MFIXED IND 560UH 222MA 4.67OHM SM |
2,735 |
|
Datasheet | SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 222 mA | 222mA | Shielded | 4.67Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-682MFIXED IND 6.8UH 1.9A 65 MOHM SMD |
2,752 |
|
Datasheet | SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.9 A | 1.9A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-683MFIXED IND 68UH 1.05A 520MOHM SMD |
4,553 |
|
Datasheet | SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.05 A | 1.05A | Shielded | 520mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-684MFIXED IND 680UH 201MA 5.73OHM SM |
1,512 |
|
Datasheet | SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 201 mA | 201mA | Shielded | 5.73Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-823MFIXED IND 82UH 579MA 690MOHM SMD |
4,901 |
|
Datasheet | SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 579 mA | 579mA | Shielded | 690mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-824MFIXED IND 820UH 188MA 6.54OHM SM |
2,971 |
|
Datasheet | SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 188 mA | 188mA | Shielded | 6.54Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
105-121MFIXED IND 120NH 830MA 140MOHM SM |
4,523 |
|
Datasheet | 105 | Nonstandard, 2 Lead | Tape & Reel (TR) | Obsolete | - | Iron | 120 nH | ±20% | 830 mA | - | Unshielded | 140mOhm Max | 40 @ 25MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
105-151MFIXED IND 150NH 775MA 160MOHM SM |
1,720 |
|
Datasheet | 105 | Nonstandard, 2 Lead | Tape & Reel (TR) | Obsolete | - | Iron | 150 nH | ±20% | 775 mA | - | Unshielded | 160mOhm Max | 40 @ 25MHz | 440MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
105-181MFIXED IND 180NH 710MA 190MOHM SM |
2,033 |
|
Datasheet | 105 | Nonstandard, 2 Lead | Tape & Reel (TR) | Obsolete | - | Iron | 180 nH | ±20% | 710 mA | - | Unshielded | 190mOhm Max | 40 @ 25MHz | 405MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
