Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2727R-25FFIXED IND 1MH 84MA 27 OHM TH |
3,269 |
|
Datasheet | 2727R | Radial, Vertical | Bulk | Active | Toroidal | Iron | 1 mH | ±1% | 84 mA | - | Unshielded | 27Ohm Max | 50 @ 790kHz | 2.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.280" L x 0.160" W (7.11mm x 4.06mm) | 0.300" (7.62mm) |
|

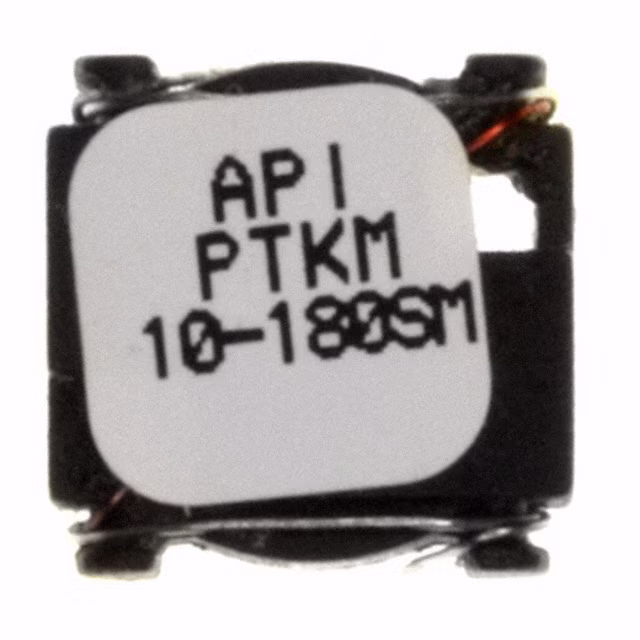

PTKM10-180SMFIXED IND 10UH 1.6A 100 MOHM SMD |
3,077 |
|
Datasheet | PTKM-SM | Nonstandard | Bulk | Active | Toroidal | Ferrite | 10 µH | ±10% | 1.6 A | 430mA | Shielded | 100mOhm Max | - | 35MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
|
|
PTKM25-180SMFIXED IND 25UH 1.33A 150MOHM SMD |
1,790 |
|
Datasheet | PTKM-SM | Nonstandard | Bulk | Active | Toroidal | Ferrite | 25 µH | ±10% | 1.33 A | 250mA | Shielded | 150mOhm Max | - | 30MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
|
SPD73-242MFIXED IND 2.4UH 2.69A 32MOHM SMD |
4,276 |
|
Datasheet | SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.4 µH | ±20% | 2.69 A | 2.69A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
LLST-125FIXED IND 125UH 1A 250 MOHM SMD |
2,923 |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 125 µH | ±15% | 1 A | 640mA | Shielded | 250mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-140FIXED IND 140UH 1A 250 MOHM SMD |
2,427 |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 140 µH | ±15% | 1 A | 560mA | Shielded | 250mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
LLST-200FIXED IND 200UH 795MA 400MOHM SM |
2,367 |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 200 µH | ±15% | 795 mA | 460mA | Shielded | 400mOhm Max | - | 3.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-350FIXED IND 350UH 650MA 625MOHM SM |
3,555 |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 350 µH | ±15% | 650 mA | 360mA | Shielded | 625mOhm Max | - | 1.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-400FIXED IND 400UH 280MA 700MOHM SM |
1,673 |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 400 µH | ±15% | 280 mA | 500mA | Shielded | 700mOhm Max | - | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
LLST-47FIXED IND 47UH 1.45A 120MOHM SMD |
4,699 |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 47 µH | ±15% | 1.45 A | 1A | Shielded | 120mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
