Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTHF100-40SMFIXED IND 100UH 1.6A 160MOHM SMD |
3,187 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 100 µH | ±10% | 1.6 A | - | Shielded | 160mOhm Max | - | 6MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF150-40SMFIXED IND 150UH 1.45A 190MOHM SM |
2,675 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 150 µH | ±10% | 1.45 A | - | Shielded | 190mOhm Max | - | 3.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF200-40SMFIXED IND 200UH 1.12A 320MOHM SM |
2,816 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 200 µH | ±10% | 1.12 A | - | Shielded | 320mOhm Max | - | 3MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF250-40SMFIXED IND 250UH 1.05A 360MOHM SM |
1,056 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 250 µH | ±10% | 1.05 A | - | Shielded | 360mOhm Max | - | 2.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF10-30SMFIXED IND 10UH 2.56A 50 MOHM SMD |
3,829 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 10 µH | ±10% | 2.56 A | - | Shielded | 50mOhm Max | - | 35MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W x 0.400" H (11.18mm x 11.18mm x 10.16mm) | - |
|
|
PTHF25-30SMFIXED IND 25UH 2.16A 70 MOHM SMD |
2,981 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 25 µH | ±10% | 2.16 A | - | Shielded | 70mOhm Max | - | 25MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|

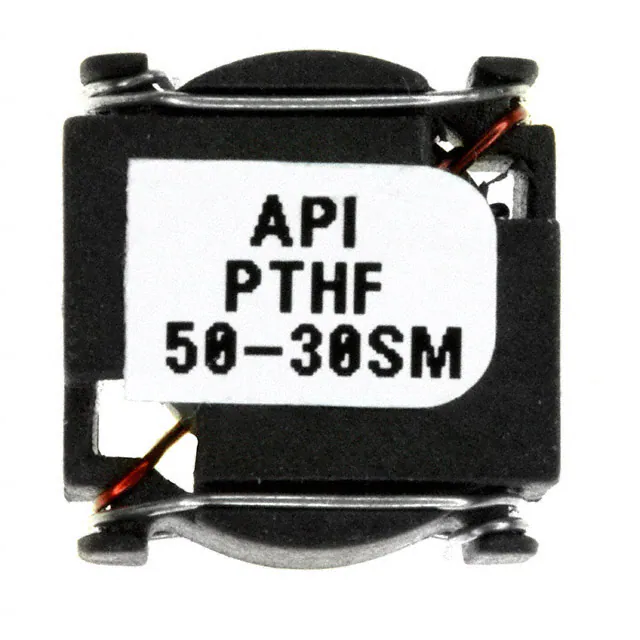

PTHF50-30SMFIXED IND 50UH 1.81A 100MOHM SMD |
2,418 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | - | 50 µH | ±10% | 1.81 A | - | Shielded | 100mOhm Max | - | 10MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF75-30SMFIXED IND 75UH 1.62A 130MOHM SMD |
2,148 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 75 µH | ±10% | 1.62 A | - | Shielded | 130mOhm Max | - | 7MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF100-30SMFIXED IND 100UH 1.5A 150MOHM SMD |
2,484 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 100 µH | ±10% | 1.5 A | - | Shielded | 150mOhm Max | - | 6MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF150-30SMFIXED IND 150UH 1.33A 190MOHM SM |
4,977 |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 150 µH | ±10% | 1.33 A | - | Shielded | 190mOhm Max | - | 3.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
