Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC630-394KFIXED IND 390UH 1.66A 342MOHM TH |
3,580 |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 390 µH | ±10% | 1.66 A | 3.4A | Unshielded | 342mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
|
DC630-474KFIXED IND 470UH 1.58A 377MOHM TH |
1,608 |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 470 µH | ±10% | 1.58 A | 3.1A | Unshielded | 377mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
|
DC630-564KFIXED IND 560UH 1.52A 408MOHM TH |
4,301 |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 560 µH | ±10% | 1.52 A | 2.9A | Unshielded | 408mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
|
DC630-684KFIXED IND 680UH 1.42A 468MOHM TH |
3,684 |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 680 µH | ±10% | 1.42 A | 2.6A | Unshielded | 468mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

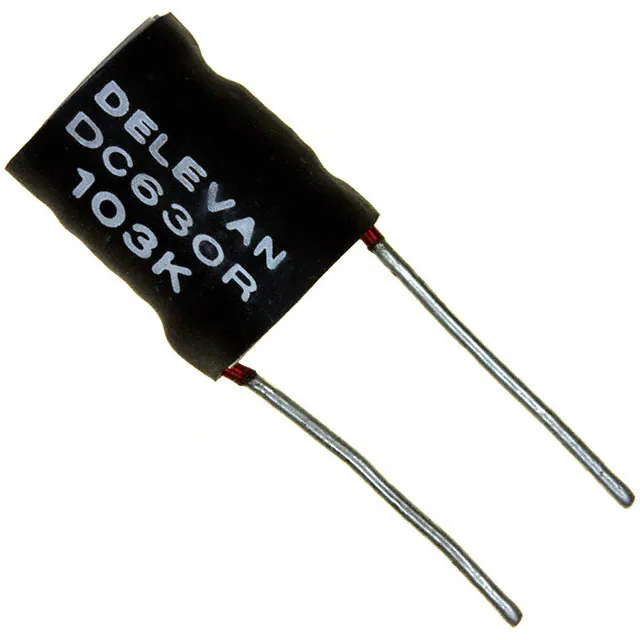

DC630R-103KFIXED IND 10UH 9.5A 10 MOHM TH |
4,515 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 9.5 A | 21.5A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

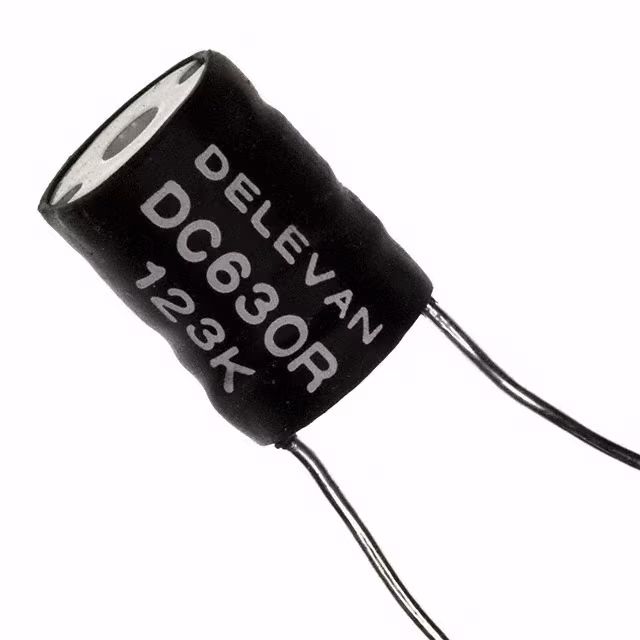

DC630R-123KFIXED IND 12UH 9.1A 11 MOHM TH |
2,524 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 9.1 A | 19.5A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

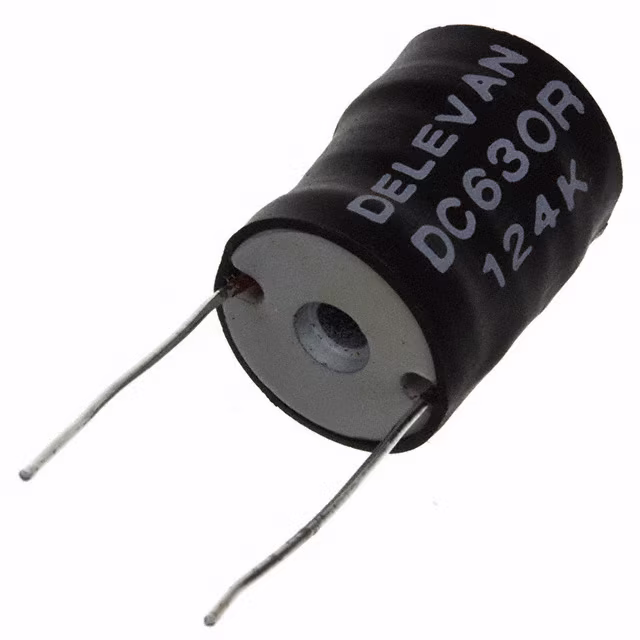

DC630R-124KFIXED IND 120UH 3.12A 100MOHM TH |
2,076 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 3.12 A | 6.2A | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

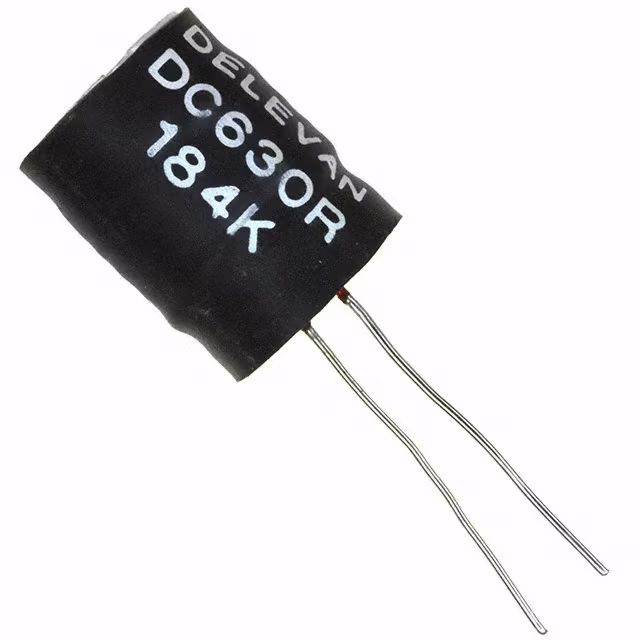

DC630R-184KFIXED IND 180UH 2.8A 125 MOHM TH |
1,808 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 2.8 A | 5.1A | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
DC630R-223KFIXED IND 22UH 6.26A 25 MOHM TH |
1,812 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 6.26 A | 14.5A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

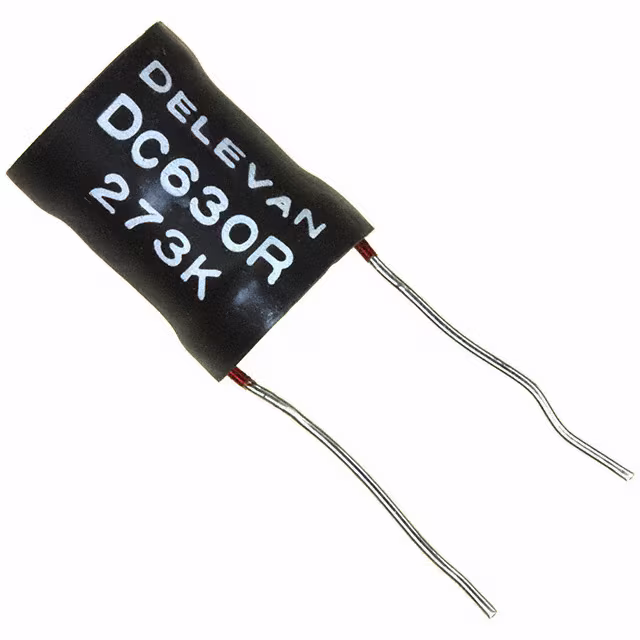

DC630R-273KFIXED IND 27UH 5.72A 30 MOHM TH |
2,638 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 5.72 A | 13.2A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
