Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC630-472MFIXED IND 4.7UH 11.7A 7 MOHM TH |
3,801 |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 4.7 µH | ±20% | 11.7 A | 31.5A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
|
DC630-562MFIXED IND 5.6UH 11.7A 7 MOHM TH |
1,856 |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 5.6 µH | ±20% | 11.7 A | 29A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
|
DC630-682MFIXED IND 6.8UH 10.5A 8 MOHM TH |
4,875 |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 6.8 µH | ±20% | 10.5 A | 26A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
|
DC630-822MFIXED IND 8.2UH 10A 9 MOHM TH |
1,809 |
|
Datasheet | DC630 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 8.2 µH | ±20% | 10 A | 24A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

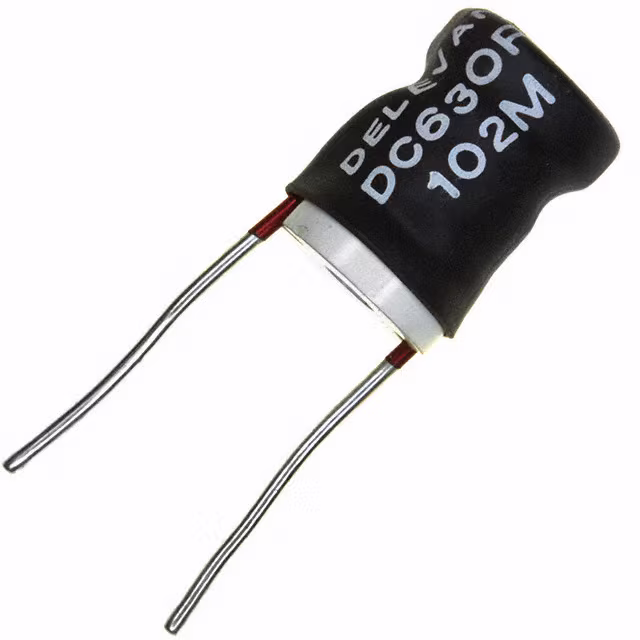

DC630R-102MFIXED IND 1UH 14A 3 MOHM TH |
1,422 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 14 A | 68A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
DC630R-152MFIXED IND 1.5UH 13.5A 4 MOHM TH |
4,682 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 13.5 A | 55.5A | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
DC630R-222MFIXED IND 2.2UH 12.8A 5 MOHM TH |
2,145 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 12.8 A | 46A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

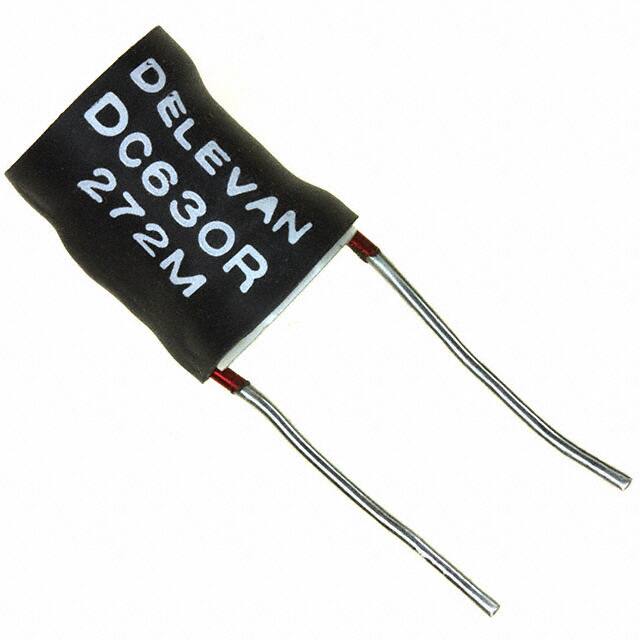

DC630R-272MFIXED IND 2.7UH 12.8A 5 MOHM TH |
3,680 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 12.8 A | 42A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

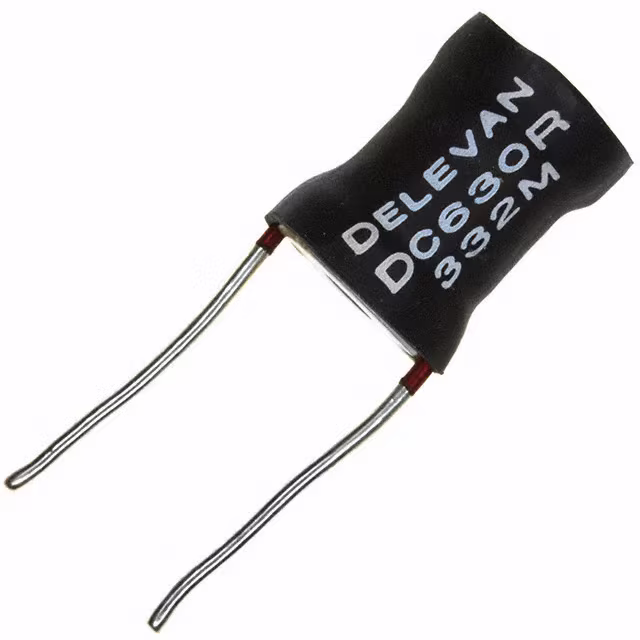

DC630R-332MFIXED IND 3.3UH 12.8A 5 MOHM TH |
2,963 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 12.8 A | 38A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

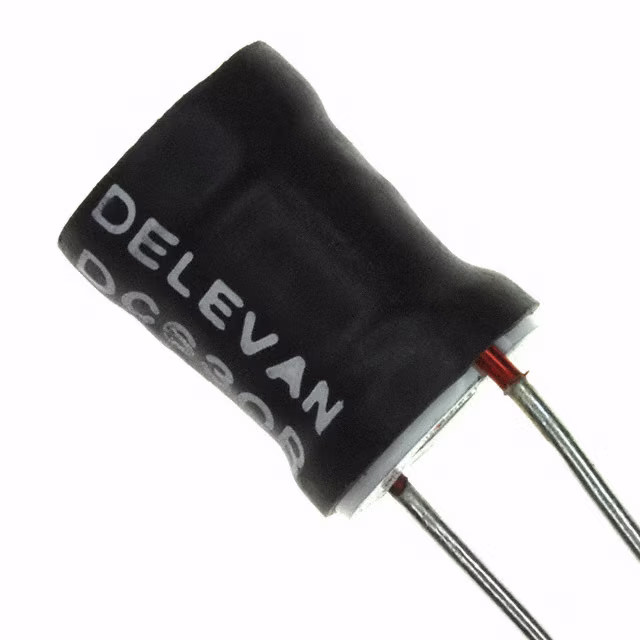

DC630R-392MFIXED IND 3.9UH 12.3A 6 MOHM TH |
2,778 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 12.3 A | 34.5A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
