Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP1008R-821HFIXED IND 820NH 824MA 167MOHM SM |
1,178 |
|
Datasheet | SP1008R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 nH | ±3% | 824 mA | - | Shielded | 167mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008R-822HFIXED IND 8.2UH 271MA 1.54OHM SM |
3,761 |
|
Datasheet | SP1008R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±3% | 271 mA | - | Shielded | 1.54Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008R-823HFIXED IND 82UH 107MA 9.9 OHM SMD |
2,269 |
|
Datasheet | SP1008R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±3% | 107 mA | - | Shielded | 9.9Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|

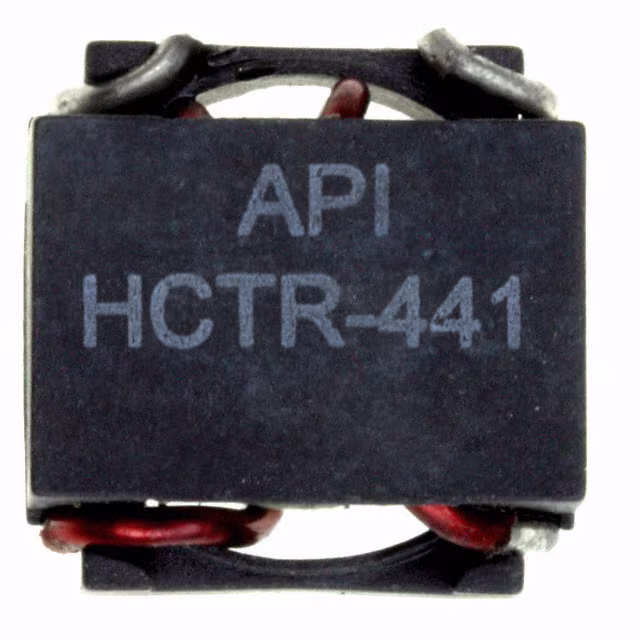

HCTR-441FIXED IND 2.8UH 15.6A 3.6MOHM SM |
4,978 |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 2.8 µH | ±25% | 15.6 A | - | Shielded | 3.6mOhm Max | 33 @ 100kHz | 110MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|

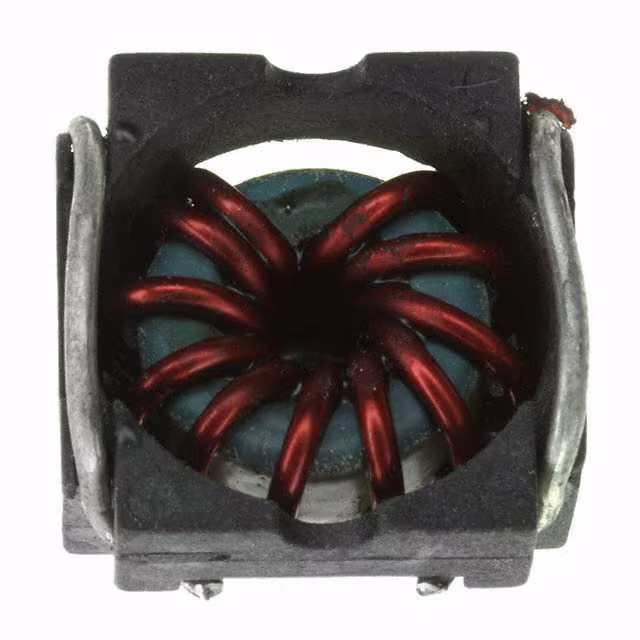

HCTR-442FIXED IND 4.2UH 12.8A 5.4MOHM SM |
1,078 |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 4.2 µH | ±25% | 12.8 A | - | Shielded | 5.4mOhm Max | 29 @ 100kHz | 85MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|

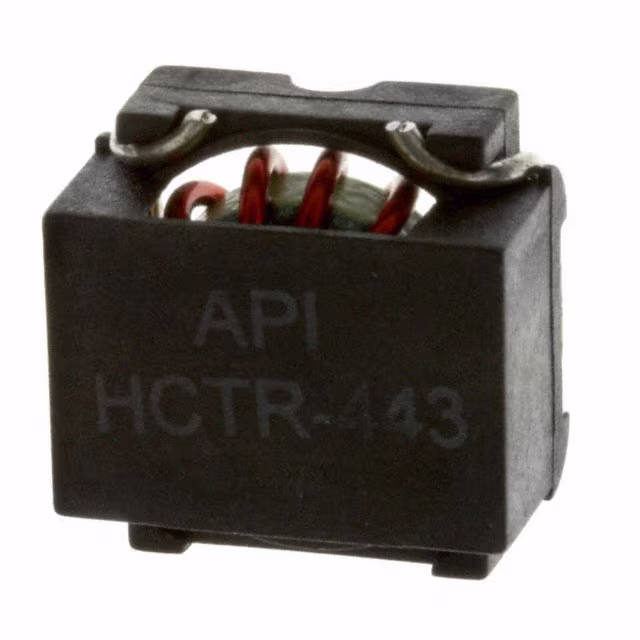

HCTR-443FIXED IND 5.7UH 10.9A 7.5MOHM SM |
1,458 |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 5.7 µH | ±25% | 10.9 A | - | Shielded | 7.5mOhm Max | 29 @ 100kHz | 65MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|
HCTR-444FIXED IND 9UH 6.28A 11.4MOHM SMD |
3,054 |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 9 µH | ±25% | 6.28 A | - | Shielded | 11.4mOhm Max | 26 @ 100kHz | 55MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|

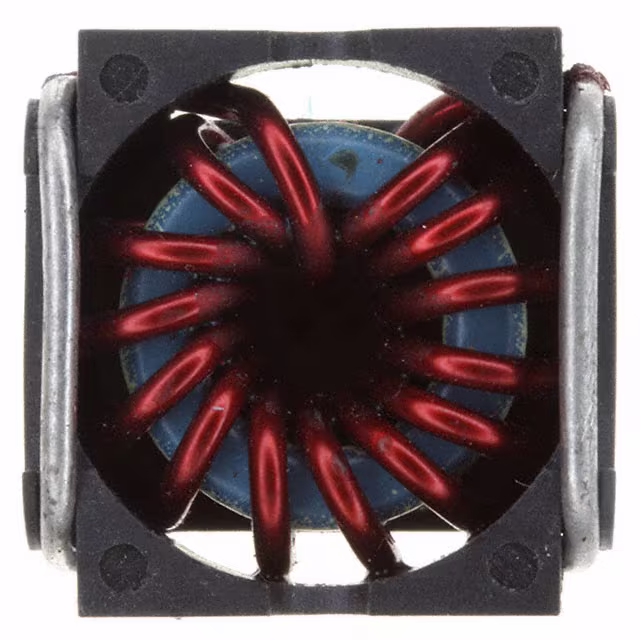

HCTR-501FIXED IND 6.5UH 12A 6.6 MOHM SMD |
1,898 |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 6.5 µH | ±25% | 12 A | - | Shielded | 6.6mOhm Max | 25 @ 100kHz | 55MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|

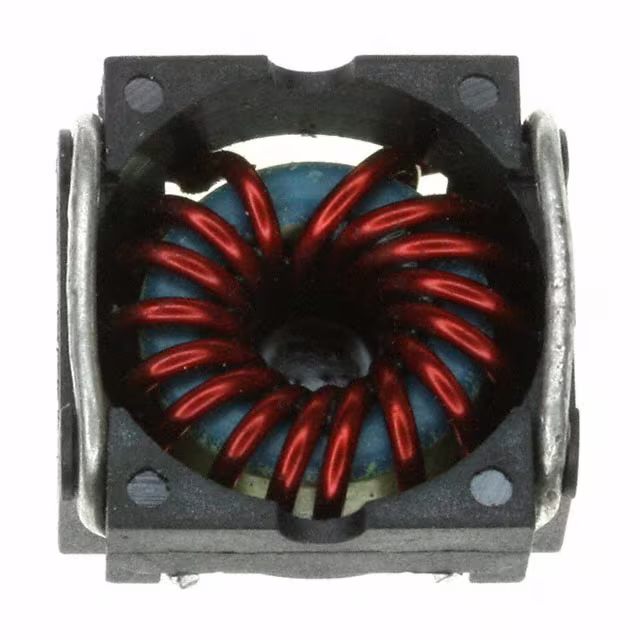

HCTR-502FIXED IND 8.4UH 10.8A 8.3MOHM SM |
3,330 |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 8.4 µH | ±25% | 10.8 A | - | Shielded | 8.3mOhm Max | 23 @ 100kHz | 45MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|

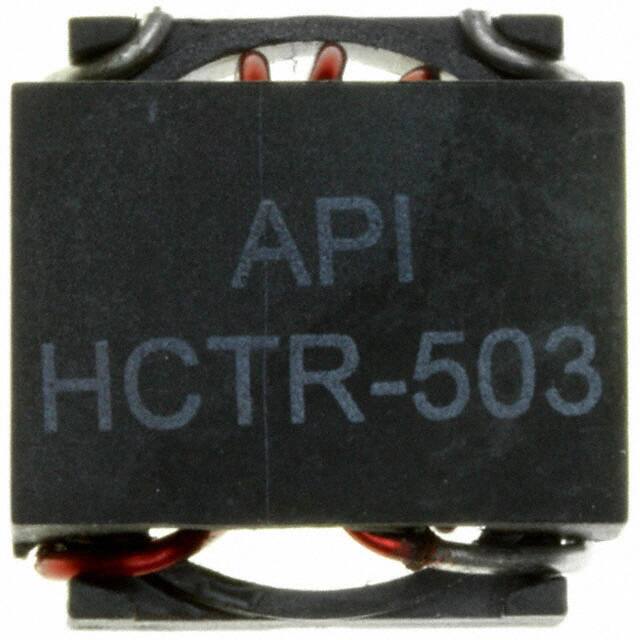

HCTR-503FIXED IND 12.5UH 9.25A 11.4 MOHM |
1,954 |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 12.5 µH | ±25% | 9.25 A | - | Shielded | 11.4mOhm Max | 23 @ 100kHz | 35MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
