Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1812R-391JFIXED IND 390NH 535MA 700MOHM SM |
3,794 |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 390 nH | ±5% | 535 mA | - | Unshielded | 700mOhm Max | 30 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-470KFIXED IND 47NH 870MA 200MOHM SMD |
3,600 |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 47 nH | ±10% | 870 mA | - | Unshielded | 200mOhm Max | 30 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-471JFIXED IND 470NH 501MA 800MOHM SM |
1,619 |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±5% | 501 mA | - | Unshielded | 800mOhm Max | 30 @ 25MHz | 190MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-560KFIXED IND 56NH 770MA 250MOHM SMD |
4,296 |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 56 nH | ±10% | 770 mA | - | Unshielded | 250mOhm Max | 30 @ 50MHz | 850MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-561JFIXED IND 560NH 409MA 1.2OHM SMD |
3,621 |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±5% | 409 mA | - | Unshielded | 1.2Ohm Max | 30 @ 25MHz | 170MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-680KFIXED IND 68NH 770MA 250MOHM SMD |
4,221 |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 68 nH | ±10% | 770 mA | - | Unshielded | 250mOhm Max | 25 @ 50MHz | 750MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-681JFIXED IND 680NH 379MA 1.4OHM SMD |
1,240 |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 680 nH | ±5% | 379 mA | - | Unshielded | 1.4Ohm Max | 30 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-820KFIXED IND 82NH 700MA 250MOHM SMD |
4,540 |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 82 nH | ±10% | 700 mA | - | Unshielded | 250mOhm Max | 25 @ 50MHz | 750MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-821JFIXED IND 820NH 354MA 1.6OHM SMD |
1,980 |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±5% | 354 mA | - | Unshielded | 1.6Ohm Max | 30 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|

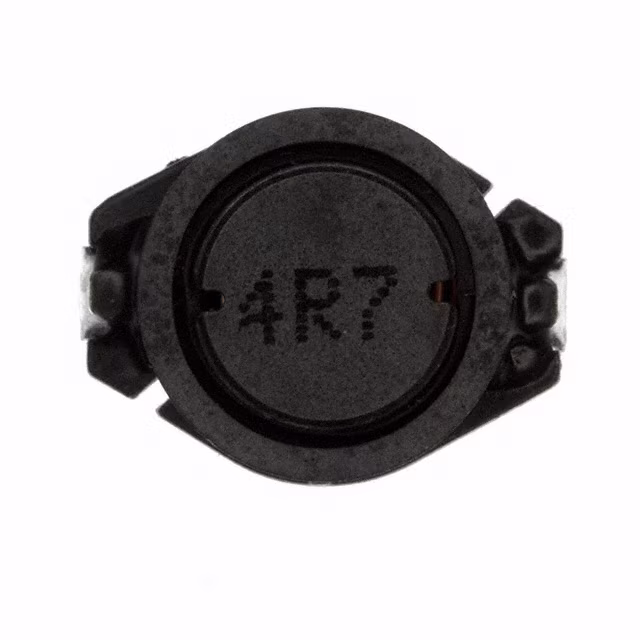

SDS130R-472NFIXED IND 4.7UH 2.5A 78 MOHM SMD |
2,791 |
|
Datasheet | SDS130R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.5 A | - | Shielded | 78mOhm Max | - | - | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
