Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402-2N0KFIXED IND 2NH 1.04A 70 MOHM SMD |
1,444 |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2 nH | ±10% | 1.04 A | - | Unshielded | 70mOhm Max | 16 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-2N2KFIXED IND 2.2NH 960MA 70MOHM SMD |
3,993 |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.2 nH | ±10% | 960 mA | - | Unshielded | 70mOhm Max | 19 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-3N6KFIXED IND 3.6NH 840MA 66MOHM SMD |
2,632 |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 3.6 nH | ±10% | 840 mA | - | Unshielded | 66mOhm Max | 19 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-10NKFIXED IND 10NH 680MA 195MOHM SMD |
4,185 |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 10 nH | ±10% | 680 mA | - | Unshielded | 195mOhm Max | 21 @ 250MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-12NKFIXED IND 12NH 640MA 120MOHM SMD |
4,027 |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 12 nH | ±10% | 640 mA | - | Unshielded | 120mOhm Max | 24 @ 250MHz | 3.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-15NKFIXED IND 15NH 560MA 172MOHM SMD |
2,579 |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 15 nH | ±10% | 560 mA | - | Unshielded | 172mOhm Max | 24 @ 250MHz | 3.28GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|

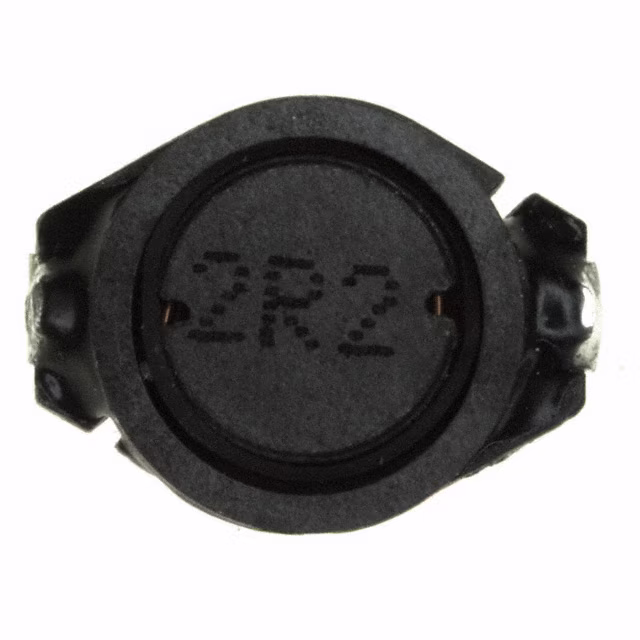

SDS130R-222NFIXED IND 2.2UH 3.5A 45 MOHM SMD |
1,462 |
|
Datasheet | SDS130R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | - | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
|
SDS130-224MFIXED IND 220UH 400MA 2.7OHM SMD |
4,917 |
|
Datasheet | SDS130 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | - | Shielded | 2.7Ohm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
3225R-182KFIXED IND 1.8UH 454MA 900MOHM SM |
3,160 |
|
Datasheet | 3225R | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.8 µH | ±10% | 454 mA | - | Unshielded | 900mOhm Max | 25 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.094" W (3.20mm x 2.40mm) | 0.094" (2.40mm) |
|
|
3225R-682KFIXED IND 6.8UH 321MA 1.8OHM SMD |
3,217 |
|
Datasheet | 3225R | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 6.8 µH | ±10% | 321 mA | - | Unshielded | 1.8Ohm Max | 25 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.094" W (3.20mm x 2.40mm) | 0.094" (2.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
