Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5500R-566KFIXED IND 56MH 160MA 38 OHM SMD |
1,540 |
|
Datasheet | 5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 mH | ±10% | 160 mA | 70mA | Unshielded | 38Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
DC780R-103KFIXED IND 10UH 11.4A 9 MOHM TH |
177 |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 11.4 A | 34.5A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
1025R-16KFIXED IND 680NH 500MA 600MOHM TH |
1,930 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Phenolic | 680 nH | ±10% | 500 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-94KFIXED IND 100NH 1.38A 80 MOHM TH |
372,763 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Phenolic | 100 nH | ±10% | 1.38 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

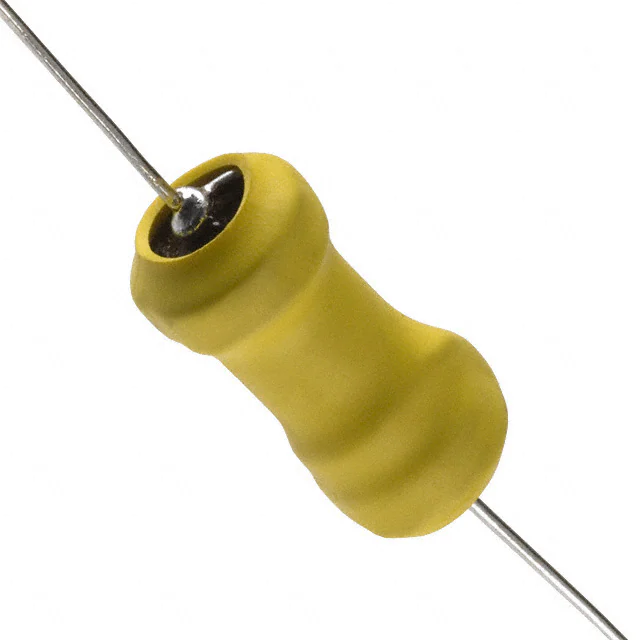

4590R-562KFIXED IND 5.6UH 7.77A 11 MOHM TH |
1,716 |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 7.77 A | 6.9A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
1025R-10KFIXED IND 390NH 710MA 300MOHM TH |
4,089 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Phenolic | 390 nH | ±10% | 710 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 365MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-14KFIXED IND 560NH 550MA 500MOHM TH |
3,961 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Phenolic | 560 nH | ±10% | 550 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-24KFIXED IND 1.5UH 560MA 220MOHM TH |
2,417 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 1.5 µH | ±10% | 560 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-94KFIXED IND 100NH 1.38A 80 MOHM TH |
1,171 |
|
Datasheet | Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±10% | 1.38 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-40KFIXED IND 6.8UH 185MA 2 OHM TH |
950 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 6.8 µH | ±10% | 185 mA | - | Unshielded | 2Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
