Fixed Inductors

Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
4379R-824JS FIXED IND 820UH 53MA 17 OHM SMD Delevan	2,036	22.50	RFQ	Datasheet	4379R	2-SMD	Tape & Reel (TR)	Active	-	Ferrite	820 µH	±5%	53 mA	-	Shielded	17Ohm Max	95 @ 790kHz	2.1MHz	-	-55°C ~ 125°C	790 kHz	-	Surface Mount	-	0.163" L x 0.133" W (4.14mm x 3.38mm)	0.140" (3.56mm)
4379R-825JS FIXED IND 8.2MH 22MA 100 OHM SMD Delevan	1,304	22.50	RFQ	Datasheet	4379R	2-SMD	Tape & Reel (TR)	Active	-	Ferrite	8.2 mH	±5%	22 mA	-	Shielded	100Ohm Max	75 @ 250kHz	700kHz	-	-55°C ~ 125°C	250 kHz	-	Surface Mount	-	0.163" L x 0.133" W (4.14mm x 3.38mm)	0.140" (3.56mm)
ER1025-72KR FIXED IND 150UH 61MA 15 OHM TH Delevan	3,411	13.67	RFQ	Datasheet	Military, MIL-PRF-39010/10, ER1025	Axial	Tape & Reel (TR)	Active	-	Ferrite	150 µH	±10%	61 mA	-	Unshielded	15Ohm Max	30 @ 790kHz	11MHz	-	-55°C ~ 105°C	790 kHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-
ER1025-76KR FIXED IND 220UH 52MA 21 OHM TH Delevan	4,143	13.67	RFQ	Datasheet	Military, MIL-PRF-39010/10, ER1025	Axial	Tape & Reel (TR)	Active	-	Ferrite	220 µH	±10%	52 mA	-	Unshielded	21Ohm Max	30 @ 790kHz	9MHz	-	-55°C ~ 105°C	790 kHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-
ER1025-80KR FIXED IND 330UH 45MA 28 OHM TH Delevan	1,483	13.67	RFQ	Datasheet	Military, MIL-PRF-39010/10, ER1025	Axial	Tape & Reel (TR)	Active	-	Ferrite	330 µH	±10%	45 mA	-	Unshielded	28Ohm Max	30 @ 790kHz	7MHz	-	-55°C ~ 105°C	790 kHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-
1539M24 FIXED IND 2.5MH 2.2A 499 MOHM TH Hammond Manufacturing	1,985	24.18	RFQ	Datasheet	1539	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	2.5 mH	±10%	2.2 A	-	Unshielded	499mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	1.500" Dia (38.10mm)	1.110" (28.19mm)

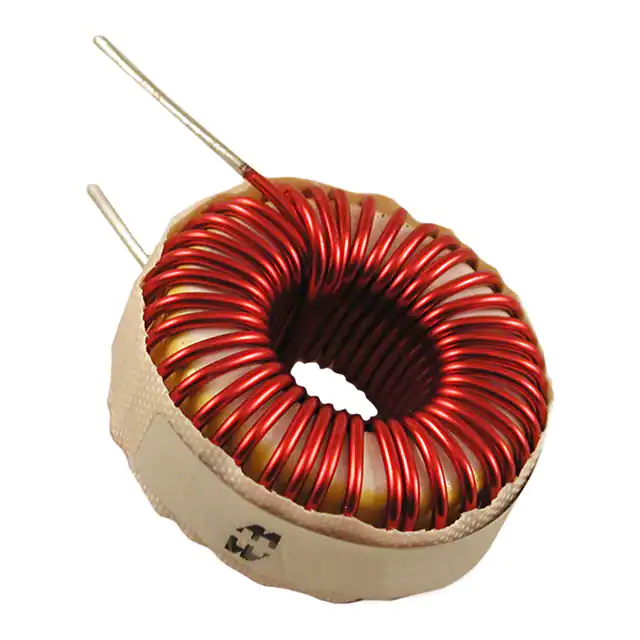

1540M25 FIXED IND 8MH 1A 3.34 OHM TH Hammond Manufacturing	4,476	23.31	RFQ	Datasheet	1540	Radial, Vertical (Open)	Bulk	Active	Toroidal	-	8 mH	±15%	1 A	-	Unshielded	3.34Ohm Max	-	-	-	-	-	-	Through Hole	-	2.125" Dia x 0.937" W (53.97mm x 23.80mm)	-
CPEX3231L-450MC THT HIGH CURRENT POWER INDUCTOR CODACA	3,428	0.00	RFQ	Datasheet	CPEX3231L	Vertical, 2 PC Pin		Active	Wirewound	Metal Composite	45 µH	±20%	30 A	34A	Shielded	3.73mOhm Max	-	-	AEC-Q200	-55°C ~ 150°C	100 kHz	Low Loss, Soft Saturation	Through Hole	Vertical, 2 PC Pin	1.268" L x 1.240" W (32.20mm x 31.50mm)	1.201" (30.50mm)
GT20-502-7 VERTICAL MOUNT TOROIDAL CHOKE Gowanda Electronics	2,714	0.00	RFQ	Datasheet	GT20	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	50 µH	±20%	-	14A	Unshielded	13mOhm	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Radial, Vertical (Open)	1.500" Dia x 0.650" L (38.10mm x 16.51mm)	-
PFC183209B-471K PFC CHOKE 470.0UH 18.3A 68.0 M ITG Electronics, Inc.	1,328	0.00	RFQ	Datasheet	PFC183209B	Vertical, 4 PC Pin	Bulk	Active	Toroidal	Alloy Powder	470 µH	±20%	9.4 A	9.5A	Unshielded	68mOhm Max	-	-	-	-55°C ~ 130°C	100 kHz	-	Through Hole	-	1.811" L x 1.063" W (46.00mm x 27.00mm)	2.067" (52.50mm)
C750FL2220C6 BROADBAND CONICAL INDUCTOR Gowanda Electronics	2,283	0.00	RFQ	Datasheet	C750FL	Radial, Horizontal Cylinder	Bulk	Active	-	Iron Powder	2.5 µH	-	8.1 A	-	Unshielded	20mOhm Max	50 @ 10MHz	-	-	-55°C ~ 125°C	10 MHz	-	Through Hole	Radial	0.370" Dia x 0.750" L (9.40mm x 19.05mm)	-
C750FL5328G6 BROADBAND CONICAL INDUCTOR Gowanda Electronics	2,275	0.00	RFQ	Datasheet	C750FL	Radial, Horizontal Cylinder	Bulk	Active	-	Iron Powder	16 µH	-	2.2 A	-	Unshielded	265mOhm Max	60 @ 10MHz	-	-	-55°C ~ 125°C	10 MHz	-	Through Hole	Radial	0.370" Dia x 0.750" L (9.40mm x 19.05mm)	-
C225SM4338G6 BROADBAND CONICAL SMT INDUCTOR Gowanda Electronics	3,527	0.00	RFQ	Datasheet	C225SM	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	1.3 µH	-	428 mA	-	Unshielded	470mOhm	-	-	-	-55°C ~ 125°C	10 MHz	-	Surface Mount	-	0.250" L x 0.144" W (6.35mm x 3.65mm)	0.250" (6.35mm)
2534R-50J FIXED IND 12MH 41MA 100 OHM TH Delevan	1,809	22.20	RFQ	Datasheet	2534R	Radial, Vertical Cylinder	Bulk	Obsolete	Molded	Ferrite	12 mH	±5%	41 mA	-	Unshielded	100Ohm Max	40 @ 79kHz	410kHz	-	-55°C ~ 125°C	79 kHz	-	Through Hole	-	0.250" Dia (6.35mm)	0.345" (8.76mm)
2534R-52J FIXED IND 15MH 40MA 105 OHM TH Delevan	1,464	22.20	RFQ	Datasheet	2534R	Radial, Vertical Cylinder	Bulk	Obsolete	Molded	Ferrite	15 mH	±5%	40 mA	-	Unshielded	105Ohm Max	45 @ 79kHz	320kHz	-	-55°C ~ 125°C	79 kHz	-	Through Hole	-	0.250" Dia (6.35mm)	0.345" (8.76mm)
2534R-54J FIXED IND 18MH 37MA 120 OHM TH Delevan	4,895	22.20	RFQ	Datasheet	2534R	Radial, Vertical Cylinder	Bulk	Obsolete	Molded	Ferrite	18 mH	±5%	37 mA	-	Unshielded	120Ohm Max	45 @ 79kHz	300kHz	-	-55°C ~ 125°C	79 kHz	-	Through Hole	-	0.250" Dia (6.35mm)	0.345" (8.76mm)
2534R-56J FIXED IND 22MH 34MA 145 OHM TH Delevan	3,082	22.20	RFQ	Datasheet	2534R	Radial, Vertical Cylinder	Bulk	Obsolete	Molded	Ferrite	22 mH	±5%	34 mA	-	Unshielded	145Ohm Max	45 @ 79kHz	250kHz	-	-55°C ~ 125°C	79 kHz	-	Through Hole	-	0.250" Dia (6.35mm)	0.345" (8.76mm)
2534R-58J FIXED IND 27MH 29MA 195 OHM TH Delevan	3,726	22.20	RFQ	Datasheet	2534R	Radial, Vertical Cylinder	Bulk	Obsolete	Molded	Ferrite	27 mH	±5%	29 mA	-	Unshielded	195Ohm Max	45 @ 79kHz	240kHz	-	-55°C ~ 125°C	79 kHz	-	Through Hole	-	0.250" Dia (6.35mm)	0.345" (8.76mm)
2534R-60J FIXED IND 33MH 26MA 250 OHM TH Delevan	4,386	22.20	RFQ	Datasheet	2534R	Radial, Vertical Cylinder	Bulk	Obsolete	Molded	Ferrite	33 mH	±5%	26 mA	-	Unshielded	250Ohm Max	45 @ 79kHz	210kHz	-	-55°C ~ 125°C	79 kHz	-	Through Hole	-	0.250" Dia (6.35mm)	0.345" (8.76mm)
2534R-62J FIXED IND 39MH 23MA 295 OHM TH Delevan	1,752	22.20	RFQ	Datasheet	2534R	Radial, Vertical Cylinder	Bulk	Obsolete	Molded	Ferrite	39 mH	±5%	23 mA	-	Unshielded	295Ohm Max	40 @ 79kHz	200kHz	-	-55°C ~ 125°C	79 kHz	-	Through Hole	-	0.250" Dia (6.35mm)	0.345" (8.76mm)

FAQ

Frequently Asked Questions

What are Fixed Inductors components used for?

Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Fixed Inductors part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
