Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1944R-14FFIXED IND 1.2UH 1A 280 MOHM TH |
1,262 |
|
Datasheet | 1944R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±1% | 1 A | - | Unshielded | 280mOhm Max | 45 @ 20MHz | 176MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
PL8505FIXED IND 100UH 1.2A 285MOHM SMD |
2,423 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8505NLFIXED IND 100UH 1.2A 285MOHM SMD |
3,329 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8502NLFIXED IND 25UH 2.4A 74 MOHM SMD |
4,378 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 25 µH | ±10% | 2.4 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
IHM2EB1R2KFIXED IND 1.2UH 17A 5 MOHM TH |
2,902 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1.2 µH | ±10% | 17 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2EB1R8KFIXED IND 1.8UH 15.6A 6 MOHM TH |
4,376 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1.8 µH | ±10% | 15.6 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2EB2R2KFIXED IND 2.2UH 15A 7 MOHM TH |
4,173 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 2.2 µH | ±10% | 15 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM1R0KFIXED IND 1UH 17.8A 5 MOHM TH |
2,741 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1 µH | ±10% | 17.8 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM1R2KFIXED IND 1.2UH 17A 5 MOHM TH |
4,187 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1.2 µH | ±10% | 17 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM1R8KFIXED IND 1.8UH 15.6A 6 MOHM TH |
3,710 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1.8 µH | ±10% | 15.6 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM2R2KFIXED IND 2.2UH 15A 7 MOHM TH |
4,990 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 2.2 µH | ±10% | 15 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM2R7KFIXED IND 2.7UH 14.5A 8 MOHM TH |
4,821 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 2.7 µH | ±10% | 14.5 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM3R9KFIXED IND 3.9UH 13.5A 9 MOHM TH |
4,137 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 3.9 µH | ±10% | 13.5 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM4R7KFIXED IND 4.7UH 13A 10 MOHM TH |
1,223 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 4.7 µH | ±10% | 13 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM5R6KFIXED IND 5.6UH 12.75A 11MOHM TH |
4,702 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 5.6 µH | ±10% | 12.75 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM6R8KFIXED IND 6.8UH 12.5A 12 MOHM TH |
2,840 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 6.8 µH | ±10% | 12.5 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM8R2KFIXED IND 8.2UH 11.25A 13MOHM TH |
3,098 |
|
Datasheet | IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 8.2 µH | ±10% | 11.25 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
CLB1108-3-50TR-RFIXED IND 200NH 0.00028OHM SMD |
1,968 |
|
Datasheet | CLB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±20% | - | 25A | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 3 Phase | Surface Mount | - | 1.063" L x 0.433" W (27.00mm x 11.00mm) | 0.315" (8.00mm) |
|

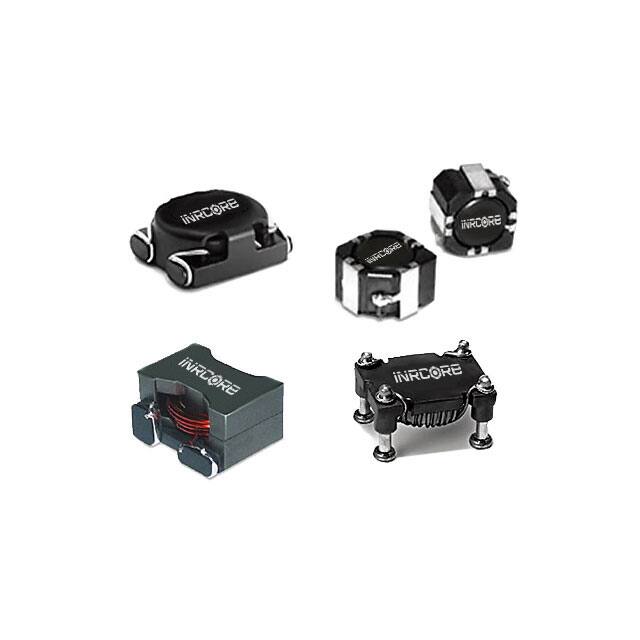

PL8507FIXED IND 220UH 820MA 673MOHM SM |
3,547 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8507NLFIXED IND 220UH 820MA 673MOHM SM |
2,833 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
