Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT150-1040FIXED IND 150UH 3.4A 100 MOHM TH |
4,291 |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 3.4 A | - | Shielded | 100mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.040" Dia x 0.500" W (26.42mm x 12.70mm) | - |
|
|
PT150-1250FIXED IND 150UH 5.7A 60 MOHM TH |
4,060 |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 5.7 A | - | Shielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" Dia x 0.700" W (31.75mm x 17.78mm) | - |
|
|
PT150-1500FIXED IND 150UH 7.7A 50 MOHM TH |
2,426 |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 7.7 A | - | Shielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 0.620" W (38.10mm x 15.75mm) | - |
|
|
PT150-2050FIXED IND 150UH 12.3A 40 MOHM TH |
2,950 |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 12.3 A | - | Shielded | 40mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 2.050" Dia x 0.920" W (52.07mm x 23.37mm) | - |
|
|
PT150R-1040FIXED IND 150UH 3.4A 100 MOHM TH |
2,473 |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 3.4 A | - | Unshielded | 100mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.040" Dia x 0.500" W (26.42mm x 12.70mm) | - |
|
|
PT150R-1250FIXED IND 150UH 5.7A 60 MOHM TH |
2,516 |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 5.7 A | - | Unshielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" Dia x 0.580" W (31.75mm x 14.73mm) | - |
|
|
PT150R-1500FIXED IND 150UH 7.7A 50 MOHM TH |
4,163 |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 7.7 A | - | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 0.620" W (38.10mm x 15.75mm) | - |
|
|
PT150R-2050FIXED IND 150UH 12.3A 40 MOHM TH |
4,265 |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 12.3 A | - | Unshielded | 40mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 2.050" Dia x 0.920" W (52.07mm x 23.37mm) | - |
|
|
050KM5002HHORIZONTAL TOROIDAL INDUCTOR |
3,838 |
|
Datasheet | KM | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 3.93 A | 1.3A | Shielded | 35mOhm Max | - | 7MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.300" (7.62mm) |
|
|
SMG8527-471MLFMOLDED NON-MAGNETIC SMT INDUCTOR |
1,394 |
|
Datasheet | SMG8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 4.7 µH | ±20% | 810 mA | - | Unshielded | 648mOhm Max | 35 @ 7.9MHz | 87MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.870" L x 0.270" W (22.10mm x 6.86mm) | 0.290" (7.37mm) |
|
PL8300FIXED IND 38UH 9.5A 19.3MOHM SMD |
2,457 |
|
Datasheet | HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8300NLFIXED IND 38UH 9.5A 19.3MOHM SMD |
3,106 |
|
Datasheet | HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

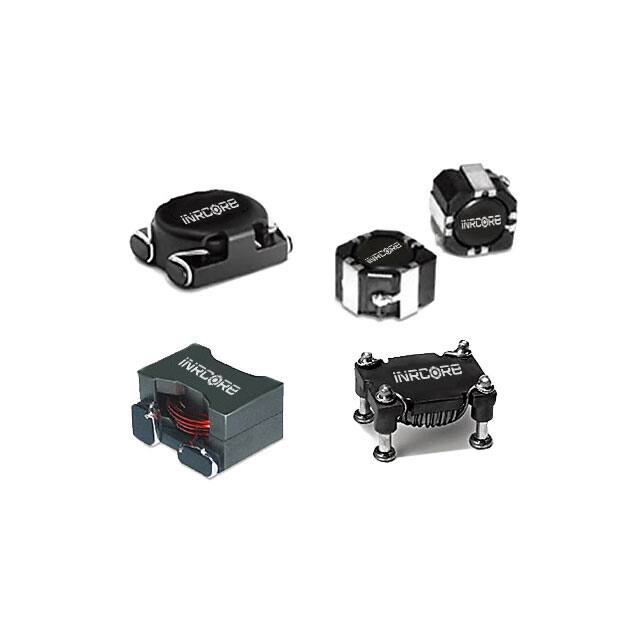

PL8304FIXED IND 8.4UH 19A 5.1 MOHM SMD |
3,156 |
|
Datasheet | HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8304NLFIXED IND 8.4UH 19A 5.1 MOHM SMD |
1,464 |
|
Datasheet | HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
SP1008-102GFIXED IND 1UH 705MA 228 MOHM SMD |
4,851 |
|
Datasheet | SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±2% | 705 mA | - | Shielded | 228mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-103GFIXED IND 10UH 258MA 1.7 OHM SMD |
2,865 |
|
Datasheet | SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±2% | 258 mA | - | Shielded | 1.7Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-104GFIXED IND 100UH 102MA 10.9OHM SM |
2,772 |
|
Datasheet | SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±2% | 102 mA | - | Shielded | 10.9Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-122GFIXED IND 1.2UH 671MA 252MOHM SM |
4,265 |
|
Datasheet | SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±2% | 671 mA | - | Shielded | 252mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-123GFIXED IND 12UH 246MA 1.87OHM SMD |
4,008 |
|
Datasheet | SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±2% | 246 mA | - | Shielded | 1.87Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-152GFIXED IND 1.5UH 627MA 288MOHM SM |
2,246 |
|
Datasheet | SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±2% | 627 mA | - | Shielded | 288mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
