Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1026R-04FFIXED IND 33NH 2A 35 MOHM TH |
2,863 |
|
Datasheet | 1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 33 nH | ±1% | 2 A | - | Unshielded | 35mOhm Max | 40 @ 25MHz | 850MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-06FFIXED IND 39NH 1.9A 40 MOHM TH |
1,087 |
|
Datasheet | 1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 39 nH | ±1% | 1.9 A | - | Unshielded | 40mOhm Max | 40 @ 25MHz | 825MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-08FFIXED IND 47NH 1.8A 45 MOHM TH |
3,848 |
|
Datasheet | 1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 47 nH | ±1% | 1.8 A | - | Unshielded | 45mOhm Max | 40 @ 25MHz | 800MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-10FFIXED IND 56NH 1.7A 50 MOHM TH |
2,981 |
|
Datasheet | 1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 56 nH | ±1% | 1.7 A | - | Unshielded | 50mOhm Max | 40 @ 25MHz | 775MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-12FFIXED IND 68NH 1.5A 60 MOHM TH |
2,361 |
|
Datasheet | 1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 68 nH | ±1% | 1.5 A | - | Unshielded | 60mOhm Max | 40 @ 25MHz | 750MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-14FFIXED IND 82NH 1.4A 70 MOHM TH |
1,863 |
|
Datasheet | 1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 82 nH | ±1% | 1.4 A | - | Unshielded | 70mOhm Max | 40 @ 25MHz | 725MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
3B502WW HIGH CURRENT POWER CHOKE |
1,233 |
|
Datasheet | 3B | Axial | Bulk | Active | Toroidal | - | 50 µH | ±10% | 3 A | - | Unshielded | 75mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 0.850" L (12.70mm x 21.59mm) | - |
|

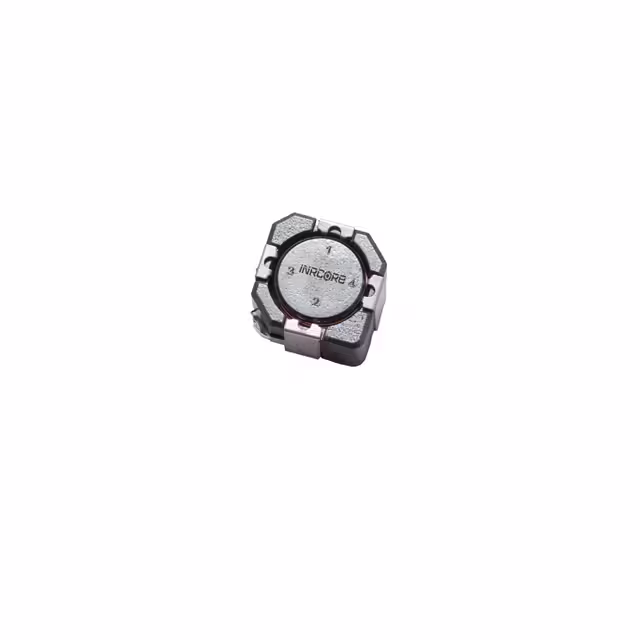

PL9402TFIXED IND 1.5UH 6.1A 6.4MOHM SMD |
3,577 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 6.1 A | 6.1A | Shielded | 6.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
|
SMRF3013S-391JMOLDED SHIELDED INDUCTOR |
1,186 |
|
Datasheet | SMRF3013S | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.9 µH | ±5% | 367 mA | 367mA | Shielded | 750mOhm Max | 55 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.120" W (7.94mm x 3.05mm) | 0.145" (3.68mm) |
|
5022-301JFIXED IND 300NH 2.14A 80MOHM SMD |
2,200 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 300 nH | ±5% | 2.14 A | - | Unshielded | 80mOhm Max | 45 @ 25MHz | 380MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-361JFIXED IND 360NH 1.935A 98MOHM SM |
2,442 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 360 nH | ±5% | 1.935 A | - | Unshielded | 98mOhm Max | 45 @ 25MHz | 345MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-122JFIXED IND 1.2UH 930MA 420MOHM SM |
4,609 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 1.2 µH | ±5% | 930 mA | - | Unshielded | 420mOhm Max | 33 @ 7.9MHz | 180MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-132JFIXED IND 1.3UH 875MA 480MOHM SM |
2,721 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 1.3 µH | ±5% | 875 mA | - | Unshielded | 480mOhm Max | 33 @ 7.9MHz | 170MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-242JFIXED IND 2.4UH 575MA 1.1OHM SMD |
2,776 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 2.4 µH | ±5% | 575 mA | - | Unshielded | 1.1Ohm Max | 33 @ 7.9MHz | 130MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-362JFIXED IND 3.6UH 415MA 2.15OHM SM |
4,720 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 3.6 µH | ±5% | 415 mA | - | Unshielded | 2.15Ohm Max | 33 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-512JFIXED IND 5.1UH 1.04A 300MOHM SM |
2,271 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 5.1 µH | ±5% | 1.04 A | - | Unshielded | 300mOhm Max | 35 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-622JFIXED IND 6.2UH 830MA 470MOHM SM |
4,198 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 6.2 µH | ±5% | 830 mA | - | Unshielded | 470mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-752JFIXED IND 7.5UH 765MA 550MOHM SM |
1,176 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 7.5 µH | ±5% | 765 mA | - | Unshielded | 550mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-113JFIXED IND 11UH 565MA 1.05OHM SMD |
4,285 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 11 µH | ±5% | 565 mA | - | Unshielded | 1.05Ohm Max | 60 @ 2.5MHz | 44MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-123JFIXED IND 12UH 555MA 1.1 OHM SMD |
4,898 |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 12 µH | ±5% | 555 mA | - | Unshielded | 1.1Ohm Max | 65 @ 2.5MHz | 42MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
