Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLP22-824LMOLDED AXL UNSHIELDED INDUCTOR |
4,076 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 8.2 mH | ±15% | 77 mA | 77mA | Unshielded | 66Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-104LMOLDED AXL UNSHIELDED INDUCTOR |
3,404 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±15% | 240 mA | 240mA | Unshielded | 6.9Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-274LMOLDED AXL UNSHIELDED INDUCTOR |
3,792 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 2.7 mH | ±15% | 131 mA | 131mA | Unshielded | 23Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-125LMOLDED AXL UNSHIELDED INDUCTOR |
3,748 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 12 mH | ±15% | 65 mA | 65mA | Unshielded | 93Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-564LMOLDED AXL UNSHIELDED INDUCTOR |
2,365 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 5.6 mH | ±15% | 100 mA | 100mA | Unshielded | 40Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-184LMOLDED AXL UNSHIELDED INDUCTOR |
3,581 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 mH | ±15% | 157 mA | 157mA | Unshielded | 16Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-155LMOLDED AXL UNSHIELDED INDUCTOR |
1,811 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 15 mH | ±15% | 61 mA | 61mA | Unshielded | 105Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
CC4H1008-018GCERAMIC SMT CHIP INDUCTOR |
1,311 |
|
Datasheet | CC4H1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 18 nH | ±2% | 1.6 A | - | Unshielded | 110mOhm | 65 @ 350MHz | 2.6GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.120" L x 0.110" W (3.05mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC4H1008-010GCERAMIC SMT CHIP INDUCTOR |
4,122 |
|
Datasheet | CC4H1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±2% | 1.84 A | - | Unshielded | 90mOhm | 50 @ 500MHz | 3.1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.120" L x 0.110" W (3.05mm x 2.79mm) | 0.090" (2.29mm) |
|
HC8-R15-RFIXED IND 150NH 39A 0.8 MOHM SMD |
3,677 |
|
Datasheet | HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 150 nH | ±20% | 39 A | 76A | Unshielded | 0.8mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|

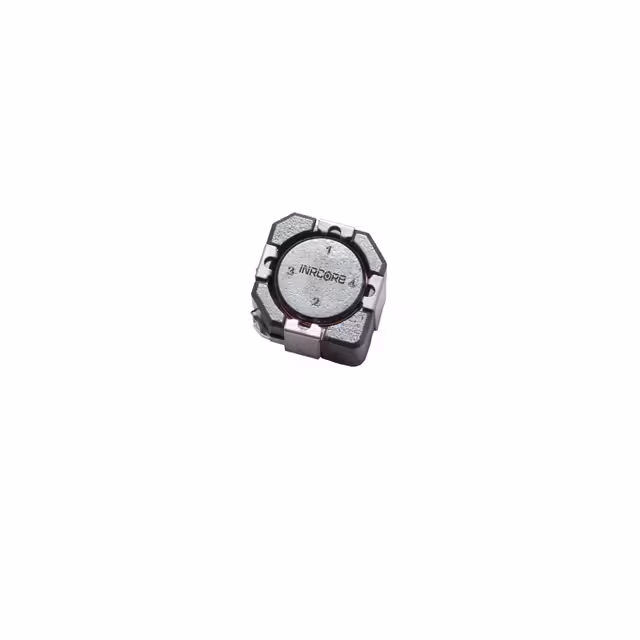

PL9515TFIXED IND 47UH 600MA 230MOHM SMD |
1,022 |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 600 mA | 600mA | Shielded | 230mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
|
CLA1108-2-50TR-RFIXED IND 50NH 80A 0.00028OHM SM |
1,080 |
|
Datasheet | CLA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.315" (8.00mm) |
|
|
SMRF5025S-821KMOLDED SHIELDED INDUCTOR |
1,336 |
|
Datasheet | SMRF5025S | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 8.2 µH | ±10% | 535 mA | 535mA | Shielded | 1.32Ohm Max | 40 @ 7.9MHz | 43MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
SWC-2.70-77FIXED IND 77UH 2.7A 90 MOHM TH |
2,437 |
|
Datasheet | SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 77 µH | ±20% | 2.7 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
SH150C-2.70-77FIXED IND 77UH 2.7A 90 MOHM TH |
3,179 |
|
Datasheet | SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 77 µH | ±20% | 2.7 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
S34547FIXED IND 150UH 180 MOHM TH |
3,583 |
|
Datasheet | - | Radial, Horizontal, 8 Leads | Bulk | Active | - | - | 150 µH | - | - | - | Unshielded | 180mOhm Max | - | 950kHz | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 0.500" L x 0.470" W (12.70mm x 11.94mm) | 0.450" (11.43mm) |
|
|
DB1-471RADIAL POWR LINE CHOKE |
3,378 |
|
Datasheet | DB1 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 9 A | 32A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.650" Dia (16.51mm) | 0.712" (18.08mm) |
|
|
MIL8532-26LFIXED IND 120UH 1.12A 283MOHM SM |
1,144 |
|
Datasheet | MIL8532 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±15% | 1.12 A | 580mA | Unshielded | 283mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
MIL8532-27LFIXED IND 150UH 1.04A 330MOHM SM |
2,584 |
|
Datasheet | MIL8532 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±15% | 1.04 A | 520mA | Unshielded | 330mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
MIL8532-28LFIXED IND 180UH 990MA 362MOHM SM |
4,488 |
|
Datasheet | MIL8532 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±15% | 990 mA | 480mA | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
