Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

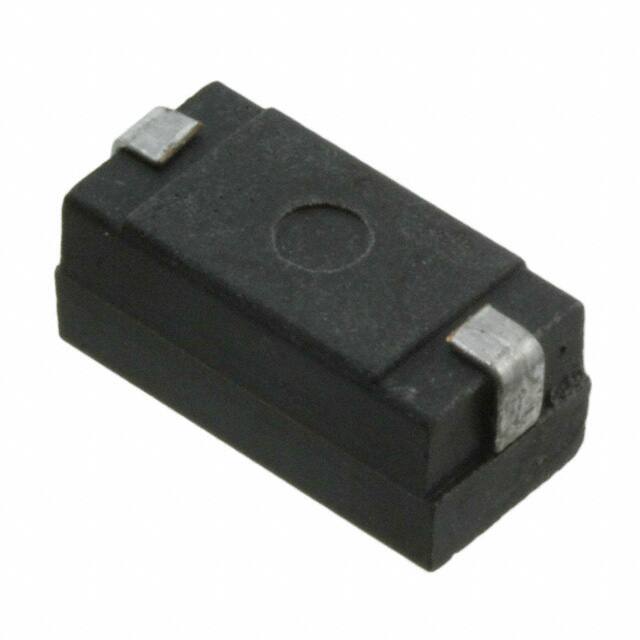

S4924-185KFIXED IND 1.8MH 110MA 29.9OHM SM |
4,862 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 mH | ±10% | 110 mA | 24mA | Shielded | 29.9Ohm Max | 50 @ 250kHz | 2.6MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
S4924-225KFIXED IND 2.2MH 104MA 33.8OHM SM |
2,649 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 mH | ±10% | 104 mA | 22mA | Shielded | 33.8Ohm Max | 50 @ 250kHz | 2.4MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-275KFIXED IND 2.7MH 88MA 47.3OHM SMD |
1,657 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 mH | ±10% | 88 mA | 20mA | Shielded | 47.3Ohm Max | 50 @ 250kHz | 2.2MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-335KFIXED IND 3.3MH 85MA 53 OHM SMD |
3,341 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 mH | ±10% | 85 mA | 19mA | Shielded | 53Ohm Max | 50 @ 250kHz | 2MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|

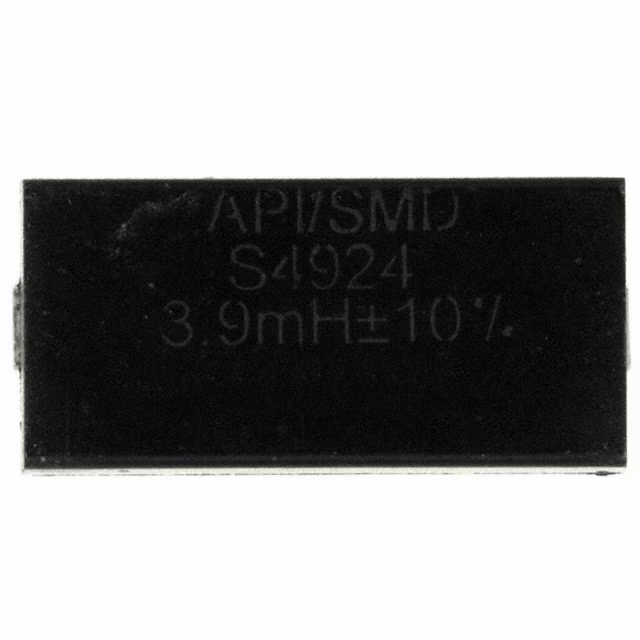

S4924-395KFIXED IND 3.9MH 72MA 73.8OHM SMD |
2,734 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 mH | ±10% | 72 mA | 17mA | Shielded | 73.8Ohm Max | 50 @ 250kHz | 1.9MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-475KFIXED IND 4.7MH 68MA 81.6OHM SMD |
2,647 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 mH | ±10% | 68 mA | 15mA | Shielded | 81.6Ohm Max | 50 @ 250kHz | 1.7MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-565KFIXED IND 5.6MH 61MA 98.9OHM SMD |
4,034 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.6 mH | ±10% | 61 mA | 14mA | Shielded | 98.9Ohm Max | 50 @ 250kHz | 1.6MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-685KFIXED IND 6.8MH 59MA 111 OHM SMD |
3,231 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 mH | ±10% | 59 mA | 13mA | Shielded | 111Ohm Max | 50 @ 250kHz | 1.4MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-825KFIXED IND 8.2MH 57MA 119 OHM SMD |
3,053 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 mH | ±10% | 57 mA | 12mA | Shielded | 119Ohm Max | 50 @ 250kHz | 1.2MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-106KFIXED IND 10MH 54MA 137 OHM SMD |
4,573 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 mH | ±10% | 54 mA | 11mA | Shielded | 137Ohm Max | 50 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|

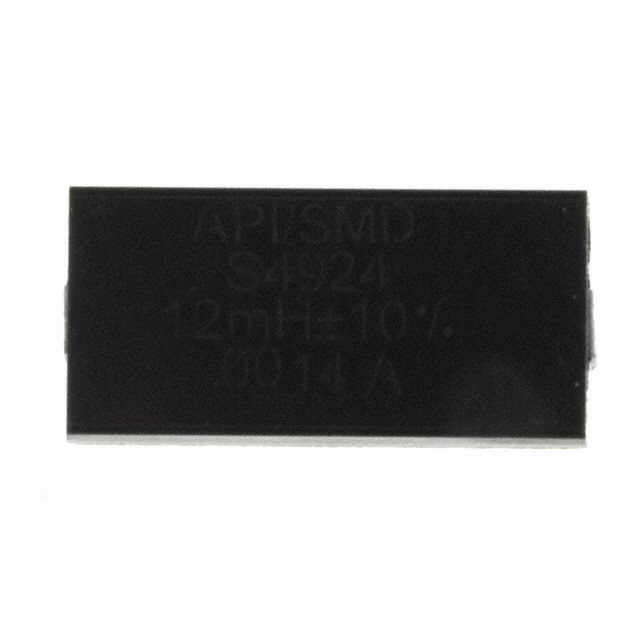

S4924-126KFIXED IND 12MH 50MA 143 OHM SMD |
4,707 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 mH | ±10% | 50 mA | 9mA | Shielded | 143Ohm Max | 30 @ 79kHz | 800kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-156KFIXED IND 15MH 48MA 157 OHM SMD |
4,814 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 mH | ±10% | 48 mA | 8mA | Shielded | 157Ohm Max | 30 @ 79kHz | 600kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-186KFIXED IND 18MH 46MA 225 OHM SMD |
4,951 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 mH | ±10% | 46 mA | 7mA | Shielded | 225Ohm Max | 30 @ 79kHz | 550kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-226KFIXED IND 22MH 37MA 274 OHM SMD |
1,314 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 mH | ±10% | 37 mA | 7mA | Shielded | 274Ohm Max | 27 @ 79kHz | 500kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-276KFIXED IND 27MH 35MA 308 OHM SMD |
2,717 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 mH | ±10% | 35 mA | 7mA | Shielded | 308Ohm Max | 27 @ 79kHz | 400kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924R-106KFIXED IND 10MH 54MA 137 OHM SMD |
4,642 |
|
Datasheet | S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 mH | ±10% | 54 mA | 11mA | Shielded | 137Ohm Max | 50 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-125KFIXED IND 1.2MH 120MA 22.1OHM SM |
2,059 |
|
Datasheet | S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 mH | ±10% | 120 mA | 28mA | Shielded | 22.1Ohm Max | 50 @ 250kHz | 3MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-126KFIXED IND 12MH 50MA 143 OHM SMD |
3,373 |
|
Datasheet | S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 mH | ±10% | 50 mA | 9mA | Shielded | 143Ohm Max | 30 @ 79kHz | 800kHz | - | -55°C ~ 125°C | 70 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-155KFIXED IND 1.5MH 115MA 26.5OHM SM |
1,685 |
|
Datasheet | S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 mH | ±10% | 115 mA | 27mA | Shielded | 26.5Ohm Max | 50 @ 250kHz | 2.8MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-156KFIXED IND 15MH 48MA 157 OHM SMD |
1,307 |
|
Datasheet | S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 mH | ±10% | 48 mA | 8mA | Shielded | 157Ohm Max | 30 @ 79kHz | 600kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
