Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4564-101KFIXED IND 100UH 200MA 2 OHM TH |
1,763 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 100 µH | ±10% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 5.3MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-121KFIXED IND 120UH 200MA 2 OHM TH |
2,778 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 120 µH | ±10% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 4.5MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|

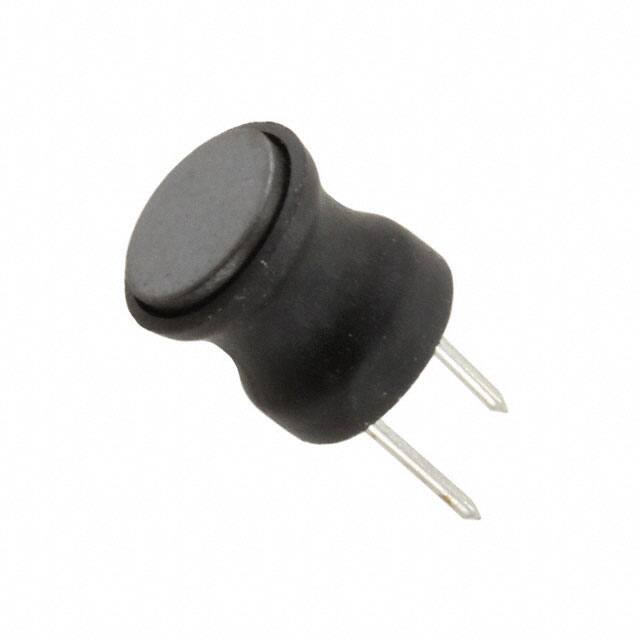

4564-151KFIXED IND 150UH 200MA 2 OHM TH |
3,605 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 150 µH | ±10% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 3.8MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-181KFIXED IND 180UH 200MA 3 OHM TH |
4,689 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 180 µH | ±10% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 3.3MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-221KFIXED IND 220UH 200MA 3 OHM TH |
3,629 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 220 µH | ±10% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 2.9MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-271KFIXED IND 270UH 200MA 3 OHM TH |
3,081 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 270 µH | ±10% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 2.6MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-331KFIXED IND 330UH 200MA 4 OHM TH |
3,517 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 330 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 2.3MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-391KFIXED IND 390UH 200MA 4 OHM TH |
3,343 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 390 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 2.1MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-471KFIXED IND 470UH 200MA 4 OHM TH |
1,163 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 470 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.9MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-561KFIXED IND 560UH 200MA 4 OHM TH |
2,787 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 560 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.7MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-681KFIXED IND 680UH 200MA 4 OHM TH |
1,446 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 680 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.6MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-821KFIXED IND 820UH 200MA 6 OHM TH |
1,872 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 820 µH | ±10% | 200 mA | - | Unshielded | 6Ohm Max | 80 @ 796kHz | 1.4MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-102KFIXED IND 1MH 150MA 6 OHM TH |
4,021 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1 mH | ±10% | 150 mA | - | Unshielded | 6Ohm Max | 90 @ 252kHz | 1.3MHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-122KFIXED IND 1.2MH 150MA 9 OHM TH |
1,488 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1.2 mH | ±10% | 150 mA | - | Unshielded | 9Ohm Max | 90 @ 252kHz | 1.2MHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-152KFIXED IND 1.5MH 150MA 9 OHM TH |
2,379 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1.5 mH | ±10% | 150 mA | - | Unshielded | 9Ohm Max | 90 @ 252kHz | 1.1MHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-182KFIXED IND 1.8MH 100MA 9 OHM TH |
2,430 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1.8 mH | ±10% | 100 mA | - | Unshielded | 9Ohm Max | 90 @ 252kHz | 1MHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-222KFIXED IND 2.2MH 100MA 13 OHM TH |
4,015 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.2 mH | ±10% | 100 mA | - | Unshielded | 13Ohm Max | 90 @ 252kHz | 900kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-272KFIXED IND 2.7MH 100MA 13 OHM TH |
3,786 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.7 mH | ±10% | 100 mA | - | Unshielded | 13Ohm Max | 90 @ 252kHz | 800kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-332KFIXED IND 3.3MH 100MA 13 OHM TH |
1,883 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 3.3 mH | ±10% | 100 mA | - | Unshielded | 13Ohm Max | 90 @ 252kHz | 700kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-392KFIXED IND 3.9MH 50MA 13 OHM TH |
1,060 |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 3.9 mH | ±10% | 50 mA | - | Unshielded | 13Ohm Max | 90 @ 252kHz | 700kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
