Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLP22-391LMOLDED AXL UNSHIELDED INDUCTOR |
1,091 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 3.9 µH | ±15% | 3.07 A | 3.07A | Unshielded | 42mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-681LMOLDED AXL UNSHIELDED INDUCTOR |
4,675 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 µH | ±15% | 2.61 A | 2.61A | Unshielded | 58mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
SWS-5.0-15FIXED IND 15UH 5A 27 MOHM SMD |
3,103 |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 15 µH | ±20% | 5 A | - | Unshielded | 27mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.400" (10.16mm) |
|
|
SH260S-5.0-15FIXED IND 15UH 5A 27 MOHM SMD |
4,492 |
|
Datasheet | SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 15 µH | ±20% | 5 A | - | Unshielded | 27mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.451" (11.45mm) |
|
LGJ7045TC-101M-HFIXED IND 100UH 750MA 330MOHM SM |
3,583 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 750 mA | 900mA | Shielded | 330mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
CSBX1275-100MSMD HIGH CURRENT POWER INDUCTOR |
4,149 |
|
Datasheet | CSBX1275 | Nonstandard | Active | Wirewound | Metal Composite | 10 µH | ±20% | 11 A | 21A | Shielded | 10.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) | |
|
|
CSBL1265-150MSMD HIGH CURRENT POWER INDUCTOR |
2,271 |
|
Datasheet | CSBL1265 | Nonstandard | Active | Wirewound | Metal Composite | 15 µH | ±20% | 9 A | 9.5A | Shielded | 14.1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CC0805-150GSCERAMIC SMT CHIP INDUCTOR |
1,909 |
|
Datasheet | CC0805 | Nonstandard | Tape & Reel (TR) | Active | - | Ceramic | 150 nH | ±2% | 400 mA | - | Unshielded | 700mOhm Max | 45 @ 250MHz | 920MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CC0603-180GSCERAMIC SMT CHIP INDUCTOR |
1,734 |
|
Datasheet | CC0603 | Nonstandard | Tape & Reel (TR) | Active | - | Ceramic | 180 nH | ±2% | 235 mA | - | Unshielded | 1.28Ohm Max | 25 @ 150MHz | 990MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
CC0603-100GSCERAMIC SMT CHIP INDUCTOR |
1,941 |
|
Datasheet | CC0603 | Nonstandard | Tape & Reel (TR) | Active | - | Ceramic | 100 nH | ±2% | 308 mA | - | Unshielded | 747mOhm Max | 34 @ 150MHz | 1.4GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
CC0805-0047GSCERAMIC SMT CHIP INDUCTOR |
3,506 |
|
Datasheet | CC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.7 nH | ±2% | 1 A | - | Unshielded | 80mOhm | 60 @ 1.5GHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CC0805-120GSCERAMIC SMT CHIP INDUCTOR |
2,708 |
|
Datasheet | CC0805 | Nonstandard | Tape & Reel (TR) | Active | - | Ceramic | 120 nH | ±2% | 470 mA | - | Unshielded | 510mOhm Max | 45 @ 250MHz | 1.1GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
VLM10555T-R33M180-3FIXED IND 330NH 18A 1.2 MOHM SMD |
3,189 |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 18 A | 34A | Shielded | 1.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|

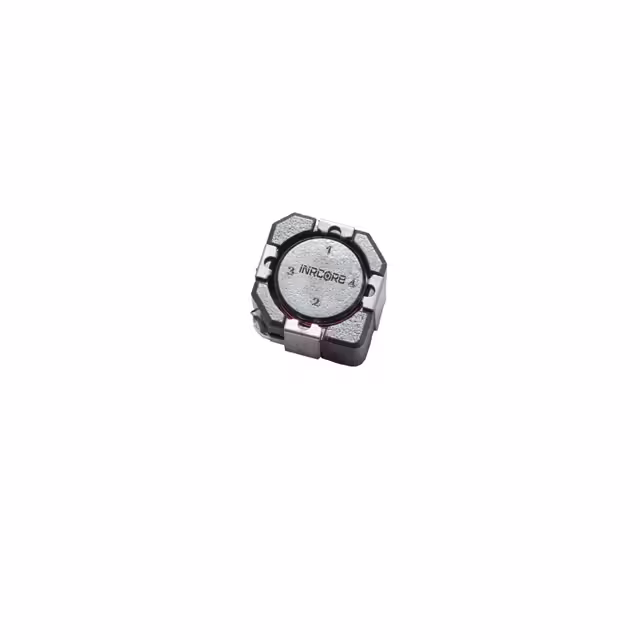

PL9509TFIXED IND 15UH 1.1A 82 MOHM SMD |
2,020 |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.1 A | 1.1A | Shielded | 82mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
|
FPV1507-500-RFIXED IND 500NH 25A SMD |
4,979 |
|
Datasheet | FPV1507 | Nonstandard | Tape & Reel (TR) | Active | - | - | 500 nH | - | 25 A | - | - | - | - | - | - | - | - | - | Surface Mount | - | 0.575" L x 0.327" W (14.60mm x 8.30mm) | 0.260" (6.60mm) |
|
|
1537-30GFIXED IND 5.6UH 565MA 320MOHM TH |
1,833 |
|
Datasheet | 1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.6 µH | ±2% | 565 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-32GFIXED IND 6.8UH 450MA 500MOHM TH |
1,231 |
|
Datasheet | 1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 µH | ±2% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-34GFIXED IND 8.2UH 410MA 600MOHM TH |
3,656 |
|
Datasheet | 1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 8.2 µH | ±2% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-36GFIXED IND 10UH 335MA 900 MOHM TH |
1,587 |
|
Datasheet | 1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 10 µH | ±2% | 335 mA | - | Unshielded | 900mOhm Max | 55 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-38GFIXED IND 12UH 305MA 1.1 OHM TH |
3,966 |
|
Datasheet | 1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 12 µH | ±2% | 305 mA | - | Unshielded | 1.1Ohm Max | 65 @ 2.5MHz | 42MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
