Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C-40XFIXED IND 320MH 600MA 10 OHM |
143 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 320 mH | -20%, +50% | 600 mA | - | Unshielded | 10Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.312" L x 2.000" W (84.12mm x 50.80mm) | 1.940" (49.28mm) |
|
Z14EFIXED IND 44UH 680MA 2.6 OHM |
152 |
|
Datasheet | Z | - | Bulk | Active | - | - | 44 µH | - | 680 mA | - | - | 2.6Ohm | - | - | - | - | 1 kHz | - | - | - | 0.437" Dia x 1.992" L (11.11mm x 50.60mm) | - |
|
506WLSM0R70KT619TFIXED IND 700NH 619MA 320MOHM SM |
3,934 |
|
Datasheet | 506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 700 nH | ±10% | 619 mA | - | Unshielded | 320mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
506WLSM1R10KT438TFIXED IND 1.1UH 438MA 640MOHM SM |
1,078 |
|
Datasheet | 506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.1 µH | ±10% | 438 mA | - | Unshielded | 640mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
IHXL1500VZEB2R2M51FIXED IND 2.2UH 168A 0.34MOHM TH |
140 |
|
Datasheet | IHXL-1500VZ-51 | Nonstandard | Bulk | Active | - | - | 2.2 µH | ±20% | 168 A | - | Shielded | 0.34mOhm Max | - | - | - | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|

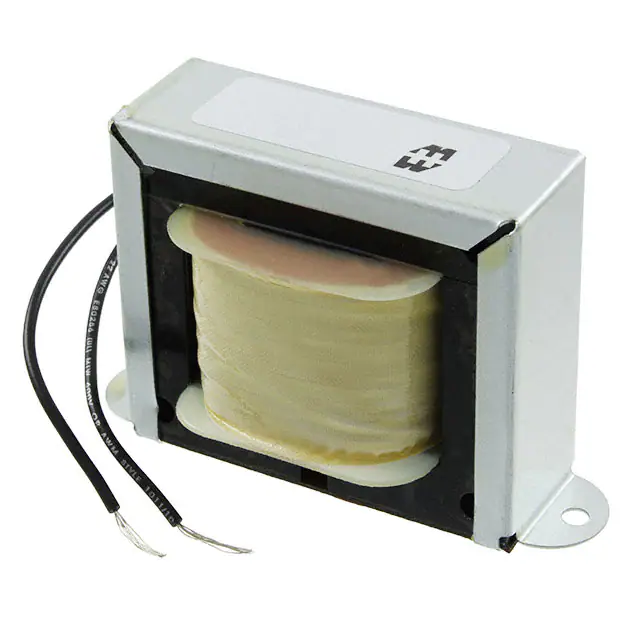

159ZJFIXED IND 10MH 5A 160 MOHM CHASS |
101 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 5 A | - | Unshielded | 160mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
750343810FIXED IND 340UH 15A 50 MOHM TH |
100 |
|
Datasheet | MID-FLT | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 340 µH | ±20% | 15 A | 24A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 2.657" Dia (67.50mm) | 1.570" (39.88mm) |
|
195C20FIXED IND 1MH 20A 13 MOHM CHASS |
4,999 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 20 A | - | Unshielded | 13mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.000" L x 3.060" W (76.20mm x 77.72mm) | 2.500" (63.50mm) |
|
|
195G10FIXED IND 5MH 10A 40 MOHM CHASS |
4,431 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 10 A | - | Unshielded | 40mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 3.600" W (95.25mm x 91.44mm) | 3.130" (79.50mm) |
|
|
195E20FIXED IND 2.5MH 20A 22 MOHM CHAS |
3,423 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 20 A | - | Unshielded | 22mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 4.200" W (95.25mm x 106.68mm) | 3.130" (79.50mm) |
|
193VFIXED IND 150MH 3A 1OHM CHAS MNT |
2,432 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 150 mH | ±15% | 3 A | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) |
|

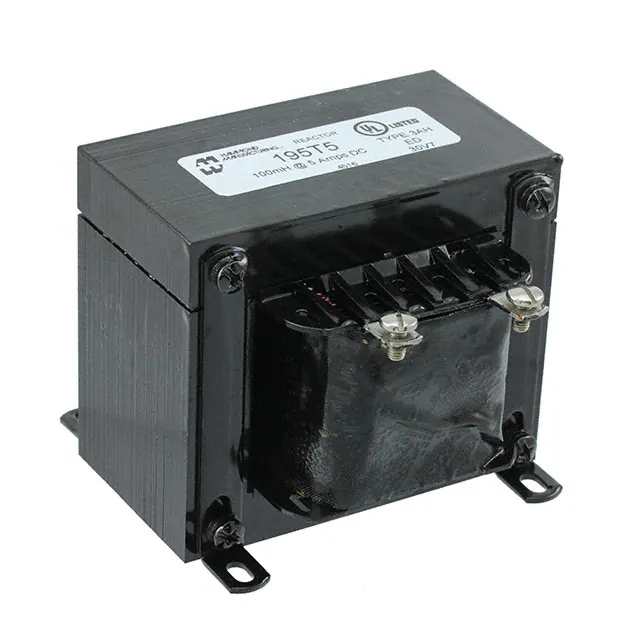

195T5FIXED IND 100MH 5A 640 MOHM CHAS |
1,556 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 100 mH | ±15% | 5 A | - | Unshielded | 640mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 5.250" W (114.30mm x 133.35mm) | 3.750" (95.25mm) |
|
CLF6045NIT-3R3N-DFIXED IND 3.3UH 3.5A 25 MOHM SMD |
3,437 |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.5 A | 3.5A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
LRC0402CJ33NGV001TFIXED IND 33NH 200MA 1 OHM SMD |
1,478,243 |
|
Datasheet | - | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±5% | 200 mA | - | Unshielded | 1Ohm Max | 8 @ 100MHz | 1.6GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LRC0402CJ22NGV001TFIXED IND 22NH 200MA 800MOHM SMD |
1,283,176 |
|
Datasheet | - | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 200 mA | - | Unshielded | 800mOhm Max | 8 @ 100MHz | 2.1GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LRC0402CS3N3GV001TFIXED IND 3.3NH 300MA 190MOHM SM |
1,244,287 |
|
Datasheet | - | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 300 mA | - | Unshielded | 190mOhm Max | 8 @ 100MHz | 8.5GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LRC0201BS1N8GV001TFIXED IND 1.8NH 300MA 220MOHM SM |
920,804 |
|
Datasheet | - | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 220mOhm Max | 4 @ 100MHz | 10.5GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LRC0402CJ10NGV001TFIXED IND 10NH 250MA 450MOHM SMD |
803,584 |
|
Datasheet | - | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 250 mA | - | Unshielded | 450mOhm Max | 8 @ 100MHz | 3.7GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
.jpg "LQP03TN5N1H02D")
|
LQP03TN5N1H02DFIXED IND 5.1NH 350MA 400MOHM SM |
533,301 |
|
Datasheet | LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 5.1 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 14 @ 500MHz | 4.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LRC0201BS3N9GV001TFIXED IND 3.9NH 300MA 450MOHM SM |
522,347 |
|
Datasheet | - | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 450mOhm Max | 4 @ 100MHz | 6.8GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
