Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX1275-6R8MSMD HIGH CURRENT POWER INDUCTOR |
600 |
|
Datasheet | CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 14 A | 25.5A | Shielded | 6.95mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-2R2MSMD HIGH CURRENT POWER INDUCTOR |
501 |
|
Datasheet | CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 24 A | 45A | Shielded | 2.45mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
CSBL1265-220MSMD HIGH CURRENT POWER INDUCTOR |
330 |
|
Datasheet | CSBL1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 8A | Shielded | 21.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|

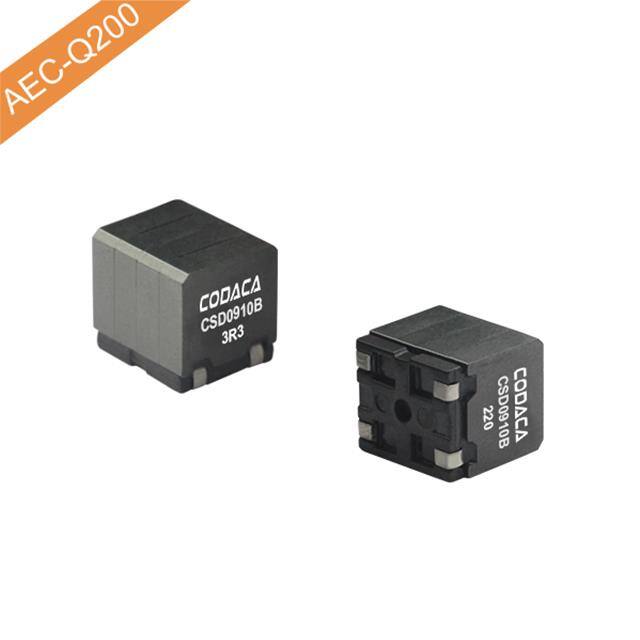

CSD0910B-6R8MCLASS D INDUCTOR FOR DIGITAL AMP |
300 |
|
Datasheet | CSD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 5 A | 8.7A | Shielded | 18.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
|
CSD0910B-150MCLASS D INDUCTOR FOR DIGITAL AMP |
300 |
|
Datasheet | CSD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 4.6A | Shielded | 39.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
CSBX1275-270MFIX IND 27UH 7A 26.5MOHM SMD |
300 |
|
Datasheet | CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 27 µH | ±20% | 7 A | 11.4A | Shielded | 26.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
CSBL1275-5R6MSMD HIGH CURRENT POWER INDUCTOR |
298 |
|
Datasheet | CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 17 A | 22A | Shielded | 5.29mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-5R6MSMD HIGH CURRENT POWER INDUCTOR |
289 |
|
Datasheet | CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 17 A | 27A | Shielded | 5.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBL1275-100MSMD HIGH CURRENT POWER INDUCTOR |
289 |
|
Datasheet | CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 11 A | 16A | Shielded | 10.1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSD0910B-100MCLASS D INDUCTOR FOR DIGITAL AMP |
283 |
|
Datasheet | CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 5 A | 5.6A | Shielded | 18.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
