Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSEB0630H-1R2MCAUTOMOTIVE SMD MOLDING POWER CHK |
496 |
|
Datasheet | VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.2 µH | ±20% | 16.5 A | 16.6A | Shielded | 6.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
|
|
CSBX1060-220MSMD HIGH CURRENT POWER INDUCTOR |
397 |
|
Datasheet | CSBX1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 4.5 A | 8.8A | Shielded | 36.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.224" (5.70mm) |
|
|
CSBL1060-220MSMD HIGH CURRENT POWER INDUCTOR |
385 |
|
Datasheet | CSBL1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 4.5 A | 6.5A | Shielded | 36.3mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.224" (5.70mm) |
|
|
CSBX1060-8R2MSMD HIGH CURRENT POWER INDUCTOR |
379 |
|
Datasheet | CSBX1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 7.8 A | 15A | Shielded | 15.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.224" (5.70mm) |
|
|
VSEB0630H-2R2MCAUTOMOTIVE SMD MOLDING POWER CHK |
375 |
|
Datasheet | VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 12 A | 12.2A | Shielded | 9.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
|

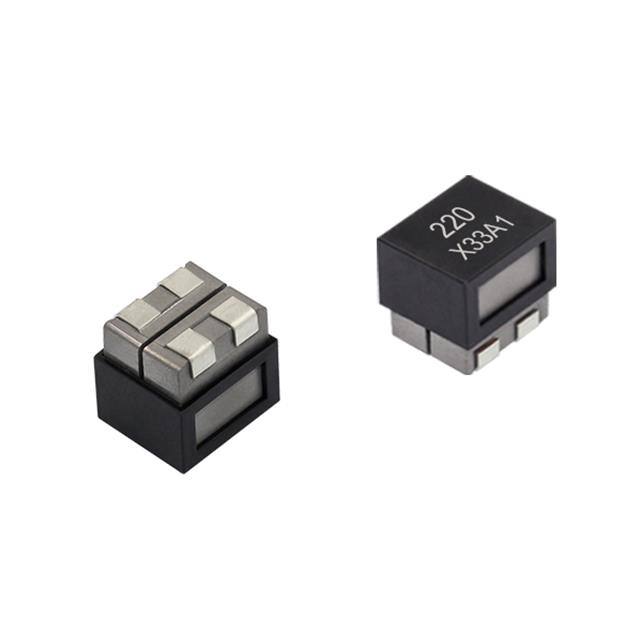

CSAD1010-100MSMD MOLDING POWER CHOKE |
370 |
|
Datasheet | CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 7.6 A | 9.5A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.433" L x 0.378" W (11.00mm x 9.60mm) | 0.429" (10.90mm) |
|
|
CSBX1060-150MSMD HIGH CURRENT POWER INDUCTOR |
192 |
|
Datasheet | CSBX1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 5.6 A | 10.5A | Shielded | 24mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.224" (5.70mm) |
|
|
CSBL1060-150MSMD HIGH CURRENT POWER INDUCTOR |
398 |
|
Datasheet | CSBL1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 5.6 A | 8.7A | Shielded | 24mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.244" (6.20mm) |
|
|
CSEB0420H-R68MSMD MOLDING POWER CHOKE |
2,000 |
|
Datasheet | CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 680 nH | ±20% | 10.7 A | 8.6A | Shielded | 9.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
|
CSEB0420H-R22MSMD MOLDING POWER CHOKE |
2,000 |
|
Datasheet | CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 220 nH | ±20% | 15.5 A | 16A | Shielded | 3.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
