Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1330R-96JFIXED IND 120NH 1.3A 90 MOHM SMD |
4,913 |
|
Datasheet | 1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 120 nH | ±5% | 1.3 A | - | Unshielded | 90mOhm Max | 40 @ 25MHz | 640MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
ASPI-1367-8R2M-TFIXED IND 8.2UH 10.5A 16.6 MOHM |
1,446 |
|
Datasheet | ASPI-1367 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 10.5 A | 16A | Shielded | 16.6mOhm Max | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.551" L x 0.508" W (14.00mm x 12.90mm) | 0.264" (6.70mm) |
|
|
IHD1NA102LFIXED IND 1MH 330MA 2.3 OHM TH |
3,489 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±15% | 330 mA | 230mA | Unshielded | 2.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1NA152LFIXED IND 1.5MH 290MA 3 OHM TH |
4,109 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±15% | 290 mA | 190mA | Unshielded | 3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1NA182LFIXED IND 1.8MH 250MA 4 OHM TH |
1,078 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±15% | 250 mA | 180mA | Unshielded | 4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1NA222LFIXED IND 2.2MH 240MA 4.4 OHM TH |
4,065 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±15% | 240 mA | 160mA | Unshielded | 4.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1NA332LFIXED IND 3.3MH 200MA 6.56OHM TH |
4,092 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±15% | 200 mA | 130mA | Unshielded | 6.56Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1NA471LFIXED IND 470UH 490MA 1.03OHM TH |
3,265 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±15% | 490 mA | 340mA | Unshielded | 1.03Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1NA561LFIXED IND 560UH 470MA 1.14OHM TH |
3,049 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±15% | 470 mA | 310mA | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1NA821LFIXED IND 820UH 360MA 1.98OHM TH |
4,449 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±15% | 360 mA | 260mA | Unshielded | 1.98Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1RR102LFIXED IND 1MH 330MA 2.3 OHM TH |
4,101 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±15% | 330 mA | 230mA | Unshielded | 2.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1RR152LFIXED IND 1.5MH 290MA 3 OHM TH |
2,159 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±15% | 290 mA | 190mA | Unshielded | 3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1RR182LFIXED IND 1.8MH 250MA 4 OHM TH |
1,492 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±15% | 250 mA | 180mA | Unshielded | 4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1RR222LFIXED IND 2.2MH 240MA 4.4 OHM TH |
3,982 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±15% | 240 mA | 160mA | Unshielded | 4.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1RR332LFIXED IND 3.3MH 200MA 6.56OHM TH |
2,434 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±15% | 200 mA | 130mA | Unshielded | 6.56Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1RR471LFIXED IND 470UH 490MA 1.03OHM TH |
3,225 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±15% | 490 mA | 340mA | Unshielded | 1.03Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1RR561LFIXED IND 560UH 470MA 1.14OHM TH |
3,822 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±15% | 470 mA | 310mA | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1RR821LFIXED IND 820UH 360MA 1.98OHM TH |
4,438 |
|
Datasheet | IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±15% | 360 mA | 260mA | Unshielded | 1.98Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
PL9416TFIXED IND 68UH 1.05A 279MOHM SMD |
1,723 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.05 A | 1.05A | Shielded | 279mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|

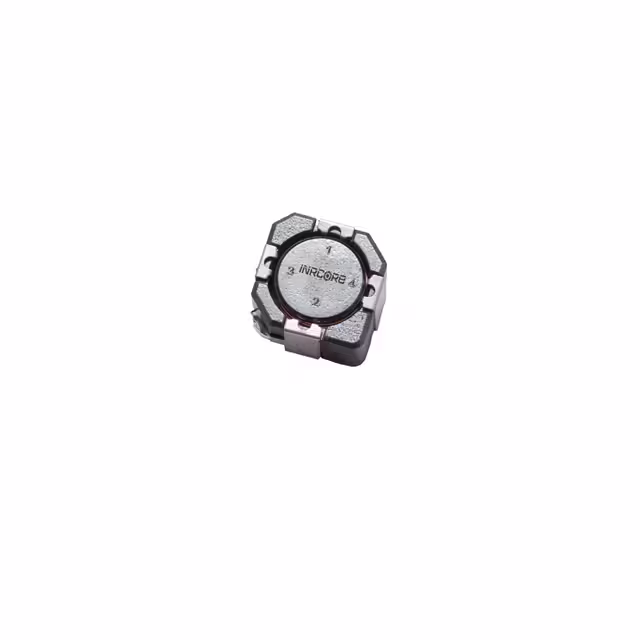

PL9417TFIXED IND 82UH 940MA 317MOHM SMD |
2,300 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 940 mA | 940mA | Shielded | 317mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
