Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMRF2510-123KMOLDED UNSHIELDED INDUCTOR |
1,564 |
|
Datasheet | SMRF2510 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±10% | 52 mA | - | Unshielded | 17Ohm Max | 15 @ 790kHz | 8.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 2512 | 0.245" L x 0.095" W (6.22mm x 2.41mm) | 0.110" (2.79mm) |
|

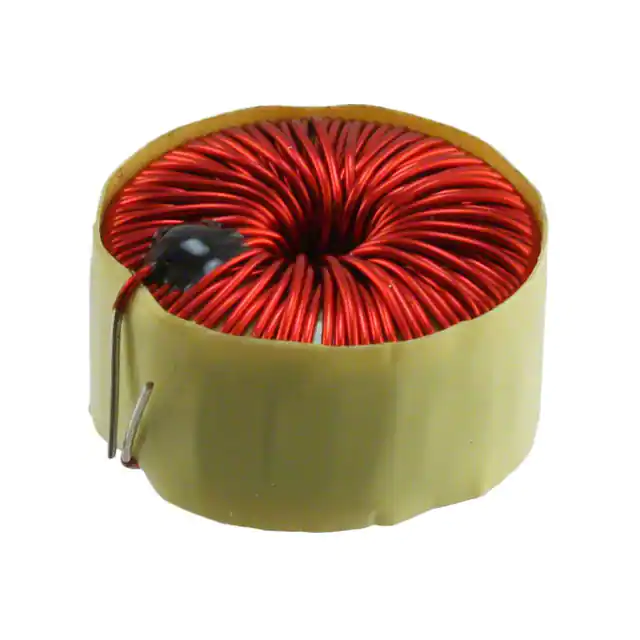

750311431FIXED IND 750UH 250MA 570MOHM TH |
1,095 |
|
Datasheet | MID-FLIT | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 750 µH | ±20% | 250 mA | - | Unshielded | 570mOhm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.580" Dia x 0.365" W (14.73mm x 9.27mm) | - |
|
SBCP-11HY681HFIXED IND 680UH 550MA 1 OHM TH |
1,713 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 550 mA | 1.1A | Unshielded | 1Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
IHSM4825ER330LFIXED IND 33UH 1.3A 222 MOHM SMD |
2,875 |
|
Datasheet | IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±15% | 1.3 A | 880mA | Unshielded | 222mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
|
2890R-02KFIXED IND 1.5UH 2.19A 90 MOHM TH |
4,236 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±10% | 2.19 A | - | Unshielded | 90mOhm Max | 60 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-04KFIXED IND 2.2UH 1.64A 160MOHM TH |
3,554 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±10% | 1.64 A | - | Unshielded | 160mOhm Max | 60 @ 7.9MHz | 125MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-06KFIXED IND 2.7UH 1.4A 220 MOHM TH |
4,065 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±10% | 1.4 A | - | Unshielded | 220mOhm Max | 60 @ 7.9MHz | 115MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-10KFIXED IND 3.9UH 980MA 450MOHM TH |
4,663 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.9 µH | ±10% | 980 mA | - | Unshielded | 450mOhm Max | 60 @ 7.9MHz | 95MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-12KFIXED IND 4.7UH 880MA 560MOHM TH |
2,121 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±10% | 880 mA | - | Unshielded | 560mOhm Max | 60 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-14KFIXED IND 5.6UH 760MA 745MOHM TH |
3,615 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 5.6 µH | ±10% | 760 mA | - | Unshielded | 745mOhm Max | 60 @ 7.9MHz | 80MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-16KFIXED IND 6.8UH 640MA 1.05OHM TH |
2,713 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 6.8 µH | ±10% | 640 mA | - | Unshielded | 1.05Ohm Max | 60 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-18KFIXED IND 8.2UH 555MA 1.4 OHM TH |
1,722 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 8.2 µH | ±10% | 555 mA | - | Unshielded | 1.4Ohm Max | 60 @ 7.9MHz | 68MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-20KFIXED IND 10UH 475MA 1.9 OHM TH |
3,471 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 10 µH | ±10% | 475 mA | - | Unshielded | 1.9Ohm Max | 60 @ 7.9MHz | 60MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-22KFIXED IND 12UH 405MA 2.65 OHM TH |
3,188 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 12 µH | ±10% | 405 mA | - | Unshielded | 2.65Ohm Max | 40 @ 2.5MHz | 53MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-24KFIXED IND 15UH 365MA 3.25 OHM TH |
4,526 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 15 µH | ±10% | 365 mA | - | Unshielded | 3.25Ohm Max | 40 @ 2.5MHz | 50MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-26KFIXED IND 18UH 320MA 4.15 OHM TH |
4,069 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 18 µH | ±10% | 320 mA | - | Unshielded | 4.15Ohm Max | 40 @ 2.5MHz | 45MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-28KFIXED IND 22UH 815MA 295 MOHM TH |
1,767 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 22 µH | ±10% | 815 mA | - | Unshielded | 295mOhm Max | 50 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-30KFIXED IND 27UH 750MA 350 MOHM TH |
3,627 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 27 µH | ±10% | 750 mA | - | Unshielded | 350mOhm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-32KFIXED IND 33UH 595MA 550 MOHM TH |
3,835 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 33 µH | ±10% | 595 mA | - | Unshielded | 550mOhm Max | 60 @ 2.5MHz | 19MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
2890R-34KFIXED IND 39UH 550MA 650 MOHM TH |
3,293 |
|
Datasheet | 2890R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 39 µH | ±10% | 550 mA | - | Unshielded | 650mOhm Max | 55 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
