Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHSM7832RG3R3LFIXED IND 3.3UH 8.1A 17 MOHM SMD |
4,193 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±15% | 8.1 A | 2.8A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG6R8LFIXED IND 6.8UH 5.6A 28 MOHM SMD |
3,042 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±15% | 5.6 A | 2.1A | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG8R2LFIXED IND 8.2UH 5.3A 32 MOHM SMD |
1,631 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±15% | 5.3 A | 1.9A | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
MP2A-100-RFIXED IND 10UH 1.29A 179MOHM SMD |
2,027 |
|
Datasheet | MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 10 µH | ±20% | 1.29 A | 1.42A | Unshielded | 179mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
|
2150-00JFIXED IND 470NH 2.27A 60 MOHM TH |
4,245 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±5% | 2.27 A | - | Unshielded | 60mOhm Max | 65 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-01JFIXED IND 560NH 2.1A 70 MOHM TH |
2,145 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±5% | 2.1 A | - | Unshielded | 70mOhm Max | 65 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-02JFIXED IND 680NH 1.96A 80 MOHM TH |
4,992 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±5% | 1.96 A | - | Unshielded | 80mOhm Max | 65 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-03JFIXED IND 820NH 1.67A 110MOHM TH |
1,523 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±5% | 1.67 A | - | Unshielded | 110mOhm Max | 65 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-04JFIXED IND 1UH 1.48A 140 MOHM TH |
3,640 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±5% | 1.48 A | - | Unshielded | 140mOhm Max | 65 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-05JFIXED IND 1.2UH 1.27A 190MOHM TH |
4,633 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±5% | 1.27 A | - | Unshielded | 190mOhm Max | 40 @ 7.9MHz | 180MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-06JFIXED IND 1.5UH 1.05A 280MOHM TH |
3,243 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±5% | 1.05 A | - | Unshielded | 280mOhm Max | 40 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-07JFIXED IND 1.8UH 915MA 370MOHM TH |
1,319 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±5% | 915 mA | - | Unshielded | 370mOhm Max | 40 @ 7.9MHz | 150MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-08JFIXED IND 2.2UH 785MA 500MOHM TH |
3,866 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±5% | 785 mA | - | Unshielded | 500mOhm Max | 40 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-10JFIXED IND 2.7UH 690MA 650MOHM TH |
2,374 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±5% | 690 mA | - | Unshielded | 650mOhm Max | 40 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-12JFIXED IND 3.3UH 555MA 1 OHM TH |
3,271 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.3 µH | ±5% | 555 mA | - | Unshielded | 1Ohm Max | 40 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-14JFIXED IND 3.9UH 505MA 1.2 OHM TH |
4,236 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.9 µH | ±5% | 505 mA | - | Unshielded | 1.2Ohm Max | 40 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-16JFIXED IND 4.7UH 415MA 1.8 OHM TH |
2,366 |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±5% | 415 mA | - | Unshielded | 1.8Ohm Max | 40 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|

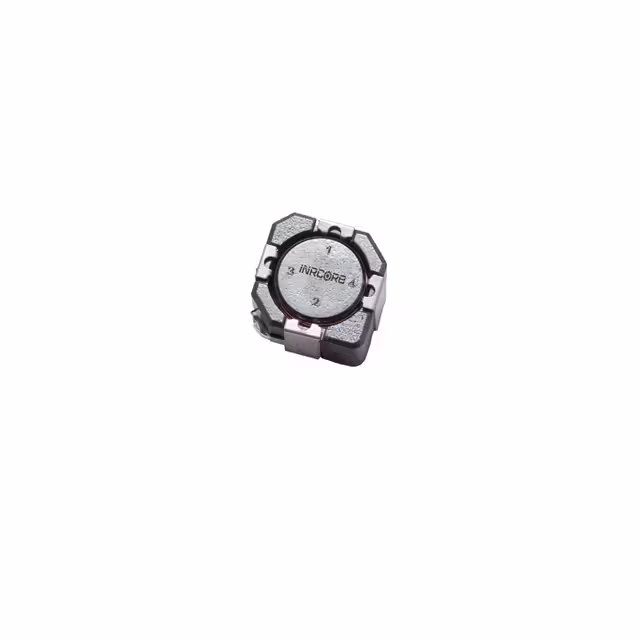

PL9401TFIXED IND 680NH 7A 4.4 MOHM SMD |
2,121 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 nH | ±30% | 7 A | 7A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
|
15MG331KMOLDED NON-MAGNETIC INDUCTOR AXL |
2,509 |
|
Datasheet | 15MG | Axial | Tape & Reel (TR) | Active | - | Non-Magnetic | 3.3 µH | ±10% | 300 mA | - | Unshielded | 2Ohm Max | 33 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
15MG391KMOLDED NON-MAGNETIC INDUCTOR AXL |
1,182 |
|
Datasheet | 15MG | Axial | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 3.9 µH | ±10% | 280 mA | - | Unshielded | 2.3Ohm Max | 33 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
