Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P3519R-562KFIXED IND 5.6UH 1.54A 120MOHM SM |
4,980 |
|
Datasheet | P3519R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±10% | 1.54 A | 1.83A | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
|
P3519R-563KFIXED IND 56UH 550MA 980MOHM SMD |
3,733 |
|
Datasheet | P3519R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±10% | 550 mA | 580mA | Unshielded | 980mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
|
P3519R-681JFIXED IND 680NH 3.31A 30MOHM SMD |
2,724 |
|
Datasheet | P3519R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±5% | 3.31 A | 5.24A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
|
P3519R-682KFIXED IND 6.8UH 1.47A 140MOHM SM |
1,420 |
|
Datasheet | P3519R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 1.47 A | 1.66A | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
|
P3519R-683KFIXED IND 68UH 520MA 1.07OHM SMD |
1,931 |
|
Datasheet | P3519R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±10% | 520 mA | 520mA | Unshielded | 1.07Ohm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
|
P3519R-821KFIXED IND 820NH 3.16A 30MOHM SMD |
4,395 |
|
Datasheet | P3519R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 nH | ±10% | 3.16 A | 4.77A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
|
P3519R-822KFIXED IND 8.2UH 1.11A 240MOHM SM |
3,181 |
|
Datasheet | P3519R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±10% | 1.11 A | 1.5A | Unshielded | 240mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
|
P3519R-823KFIXED IND 82UH 390MA 1.96OHM SMD |
1,723 |
|
Datasheet | P3519R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±10% | 390 mA | 480mA | Unshielded | 1.96Ohm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
CTM2F-4R7K4.7UH AXIAL MOLDED INDUCTOR |
3,438 |
|
Datasheet | CTM2F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±10% | 294 mA | - | Unshielded | 2.6Ohm Max | 33 @ 7.9MHz | 90MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|

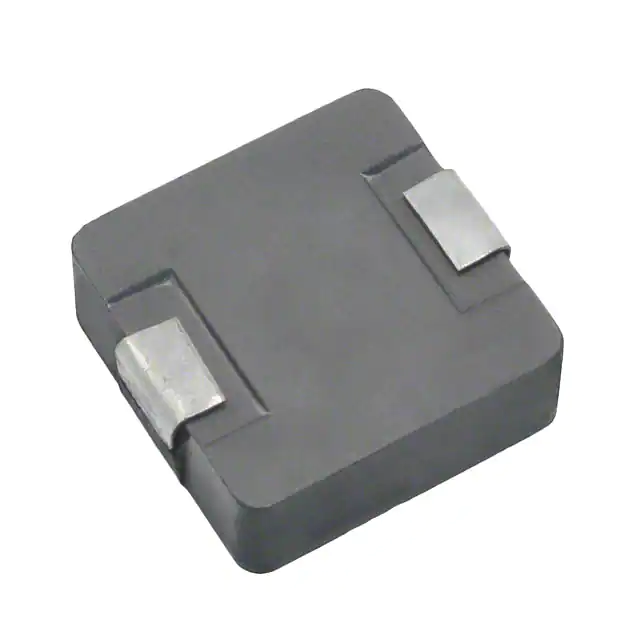

PCMC133E-R56MFFIXED IND 560NH 29A 2.2 MOHM SMD |
2,070 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 560 nH | ±20% | 29 A | 51A | Unshielded | 2.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.130" (3.30mm) |
|
|
PCMC133E-R68MFFIXED IND 680NH 28A 2.5 MOHM SMD |
4,182 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 nH | ±20% | 28 A | 49A | Unshielded | 2.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.130" (3.30mm) |
|
|
PCMC133E-1R0MFFIXED IND 1UH 24A 3.5 MOHM SMD |
1,701 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±20% | 24 A | 40A | Unshielded | 3.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.130" (3.30mm) |
|
|
PCMC133E-2R2MFFIXED IND 2.2UH 16A 8 MOHM SMD |
2,957 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 16 A | 29A | Unshielded | 8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.130" (3.30mm) |
|
CLF12555T-101M-HFIXED IND 100UH 1.3A 190MOHM SMD |
4,686 |
|
Datasheet | CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.3 A | 2.1A | Shielded | 190mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.217" (5.50mm) |
|
|
CLF12555T-1R5N-HFIXED IND 1.5UH 6.7A 7.3MOHM SMD |
1,558 |
|
Datasheet | CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.7 A | 16.4A | Shielded | 7.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.217" (5.50mm) |
|
SRP1038WA-1R5MIND,11X10X3.8MM,1.5UH20%,22A,SHD |
4,733 |
|
Datasheet | SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 22 A | 24A | Shielded | 4.5mOhm Max | 20 @ 100kHz | 32MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038WA-R82MIND,11X10X3.8MM,0.82UH20%,27A,SH |
1,991 |
|
Datasheet | SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 820 nH | ±20% | 27 A | 26.5A | Shielded | 2.7mOhm Max | 15 @ 100kHz | 44MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
PG0255.601NLTFIXED IND 600NH 27A 1.87MOHM SMD |
2,755 |
|
Datasheet | PG0255NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 600 nH | ±15% | 27 A | 28A | Shielded | 1.87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PG0255.401NLTFIXED IND 400NH 29A 1.15MOHM SMD |
2,802 |
|
Datasheet | PG0255NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±15% | 29 A | 29A | Shielded | 1.15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PG0255.222NLTFIXED IND 2.2UH 13A 7 MOHM SMD |
4,748 |
|
Datasheet | PG0255NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±15% | 13 A | 20A | Shielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.406" W (10.80mm x 10.30mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
