Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP2-R47-RFIXED IND 470NH 10.1A 4.9MOHM SM |
2,526 |
|
Datasheet | UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 10.1 A | 11.4A | Unshielded | 4.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
VLF403215MT-1R0N-CAFIXED IND 1UH 3.56A 31 MOHM SMD |
3,209 |
|
Datasheet | VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.56 A | 3.01A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.059" (1.50mm) |
|
ELL-8UV2R7NFIXED IND 2.7UH 4.75MA 10OHM SMD |
1,663 |
|
Datasheet | ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 4.75 mA | - | Unshielded | 10Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
ELL-8UV4R7NFIXED IND 4.7UH 4.2MA 12 OHM SMD |
3,738 |
|
Datasheet | ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.2 mA | - | Unshielded | 12Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
ELL-8UV100MFIXED IND 10UH 3MA 22 OHM SMD |
4,699 |
|
Datasheet | ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3 mA | - | Unshielded | 22Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
ELL-8UV470MFIXED IND 47UH 1.25MA 100OHM SMD |
3,282 |
|
Datasheet | ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.25 mA | - | Unshielded | 100Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
ELL-8UV101MFIXED IND 100UH 0.82MA 160OHM SM |
1,314 |
|
Datasheet | ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 0.82 mA | - | Unshielded | 160Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
ELL-CTV102MFIXED IND 1MH 410MA 1.5 OHM SMD |
3,726 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 410 mA | - | Shielded | 1.5Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|

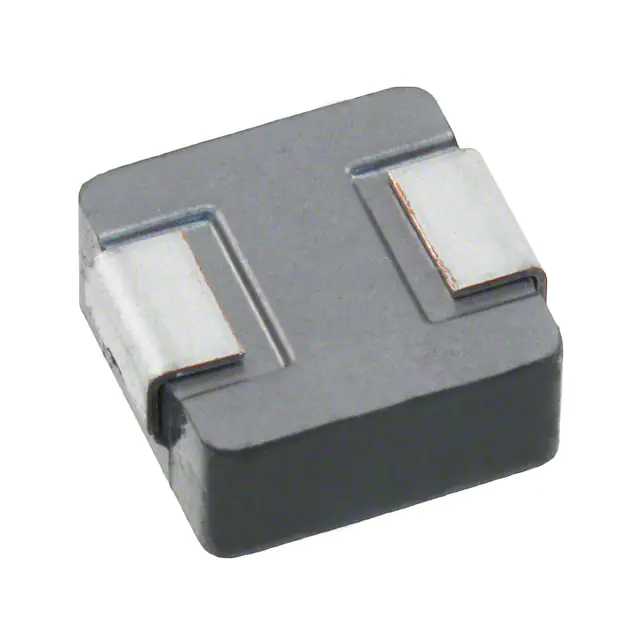

PCMC063T-2R2MNFIXED IND 2.2UH 8A 20 MOHM SMD |
1,686 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 8 A | 14A | Unshielded | 20mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-3R3MNFIXED IND 3.3UH 6A 30 MOHM SMD |
4,252 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±20% | 6 A | 13.5A | Unshielded | 30mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-4R7MNFIXED IND 4.7UH 5.5A 40 MOHM SMD |
3,203 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 5.5 A | 10A | Unshielded | 40mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
ELL-8UV221MFIXED IND 220UH 0.66MA 370OHM SM |
2,258 |
|
Datasheet | ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 0.66 mA | - | Unshielded | 370Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
PA2202.361NLTFIXED IND 365NH 27A 0.48MOHM SMD |
4,685 |
|
Datasheet | PA2202.XXXNL | Nonstandard | Tape & Reel (TR) | Active | - | - | 365 nH | ±15% | 27 A | 30A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.476" L x 0.394" W (12.10mm x 10.00mm) | 0.236" (6.00mm) |
|
CD43NP-220MCFIXED IND 22UH 680MA 378MOHM SMD |
3,649 |
|
Datasheet | CD43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 680 mA | - | Unshielded | 378mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CD43NP-3R9MCFIXED IND 3.9UH 1.84A 93.7 MOHM |
3,190 |
|
Datasheet | CD43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±20% | 1.84 A | - | Unshielded | 93.7mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
PA4304.102NLTFIXED IND 1UH 8.5A 11 MOHM SMD |
4,004 |
|
Datasheet | PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8.5 A | - | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PA4304.105NLTFIXED IND 1MH 360MA 2.27 OHM SMD |
1,449 |
|
Datasheet | PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 360 mA | - | Shielded | 2.27Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PA4304.122NLTFIXED IND 1.2UH 8A 12 MOHM SMD |
2,234 |
|
Datasheet | PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 8 A | - | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PA4304.123NLTFIXED IND 12UH 3.5A 27 MOHM SMD |
1,824 |
|
Datasheet | PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3.5 A | - | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PA4304.124NLTFIXED IND 120UH 1.1A 170MOHM SMD |
1,419 |
|
Datasheet | PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.1 A | - | Shielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
