Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCR1616NP-820MINDUCTOR |
3,325 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 3.1 A | 2.9A | Shielded | 64.5mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-181KINDUCTOR |
4,409 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 2 A | 2A | Shielded | 135mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-391KINDUCTOR |
3,069 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1.3 A | 1.3A | Shielded | 255mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-4R7MINDUCTOR |
1,120 |
|
Datasheet | RCR1616 | Radial | Box | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.2 A | 12.6A | Shielded | 6.7mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial | 0.630" Dia (16.00mm) | - |
|
|
RCR1616NP-390MINDUCTOR |
3,391 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 4.5 A | 4.6A | Shielded | 33mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-470MINDUCTOR |
4,595 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 4.1 A | 4.2A | Shielded | 37mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-821KINDUCTOR |
3,806 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 990 mA | 960mA | Shielded | 575mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-680MINDUCTOR |
4,243 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 3.4 A | 3.3A | Shielded | 56mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-102KINDUCTOR |
4,798 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 930 mA | 850mA | Shielded | 665mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-561KINDUCTOR |
2,260 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.1 A | 1.1A | Shielded | 380mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-560MINDUCTOR |
3,906 |
|
Datasheet | RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 3.8 A | 3.8A | Shielded | 45mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-6R8MINDUCTOR |
3,754 |
|
Datasheet | RCR1616 | Radial | Box | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 8 A | 9.8A | Shielded | 9.35mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial | 0.630" Dia (16.00mm) | - |
|
125CDMCCDS-1R8MCFIXED IND 1.8UH 21A 3.5MOHM SMD |
2,674 |
|
Datasheet | 125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.8 µH | ±20% | 21 A | 35A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|

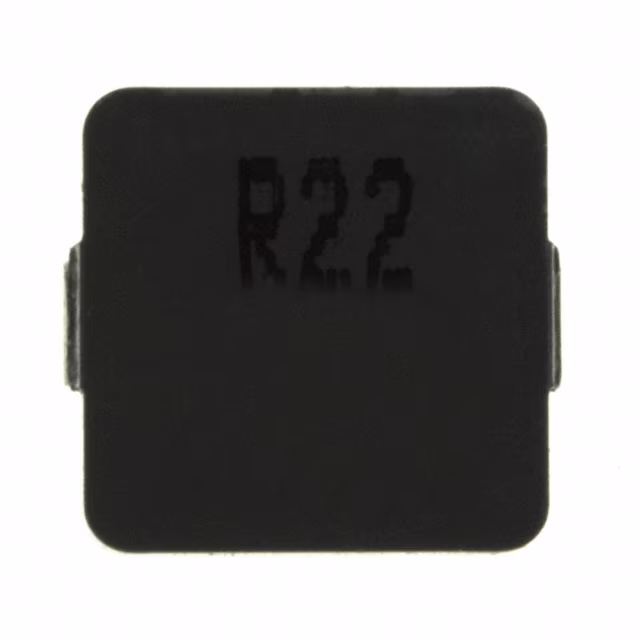

PCMC104T-R22MNFIXED IND 220NH 35A 1 MOHM SMD |
2,049 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 220 nH | ±20% | 35 A | 60A | Unshielded | 1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

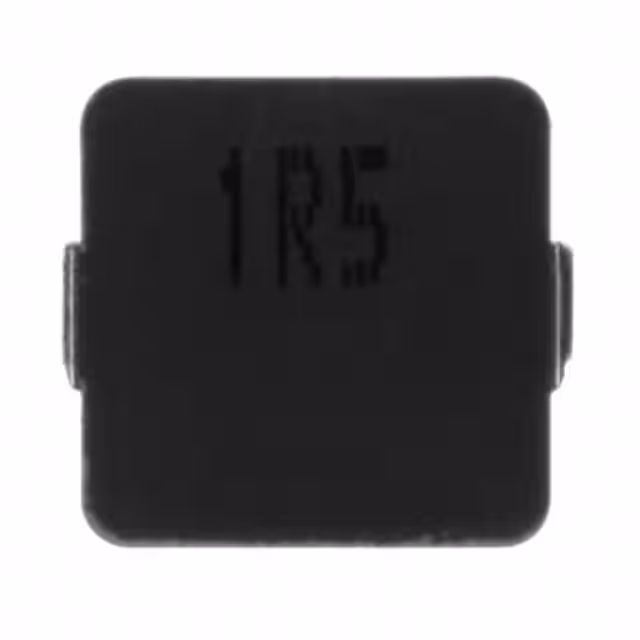

PCMC104T-1R5MNFIXED IND 1.5UH 16A 4.2 MOHM SMD |
1,986 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.5 µH | ±20% | 16 A | 33A | Unshielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PCMB103T-8R2MSFIXED IND 8.2UH 5A 45 MOHM SMD |
2,783 |
|
Datasheet | PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 5 A | 8.5A | Unshielded | 45mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
|
PCMB104T-R36MTFIXED IND 360NH 30A 1.2 MOHM SMD |
2,957 |
|
Datasheet | PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 360 nH | ±20% | 30 A | 50A | Unshielded | 1.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
|
PCMB104T-1R8MSFIXED IND 1.8UH 15A 5 MOHM SMD |
1,436 |
|
Datasheet | PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 15 A | 15A | Unshielded | 5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
|
PCMB104E-2R2MSFIXED IND 2.2UH 14A 7 MOHM SMD |
1,311 |
|
Datasheet | PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 14 A | 16A | Unshielded | 7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
|
PCMB104E-3R3MSFIXED IND 3.3UH 11A 13.2MOHM SMD |
1,249 |
|
Datasheet | PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 11 A | 14.5A | Unshielded | 13.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
