Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMC1812ER821JFIXED IND 820UH 30MA 35 OHM SMD |
4,228 |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 30 mA | - | Unshielded | 35Ohm Max | 30 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV102JFIXED IND 1MH 30MA 40 OHM SMD |
4,267 |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 250kHz | 2.5MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV471JFIXED IND 470UH 62MA 26 OHM SMD |
3,652 |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV561JFIXED IND 560UH 50MA 30 OHM SMD |
4,457 |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV681JFIXED IND 680UH 50MA 30 OHM SMD |
2,333 |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV821JFIXED IND 820UH 30MA 35 OHM SMD |
1,292 |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 30 mA | - | Unshielded | 35Ohm Max | 30 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CC0603-0018KCERAMIC SMT CHIP INDUCTOR |
2,460 |
|
Datasheet | CC0603 | Nonstandard | Tape & Reel (TR) | Active | - | Ceramic | 1.8 nH | ±10% | 1 A | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
IHLP1616ABER47NM11FIXED IND 47NH 15A 3.3 MOHM SMD |
3,428 |
|
Datasheet | IHLP-1616AB-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 47 nH | ±20% | 15 A | 15A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MLRF10M390KMIL MOLDED AXIAL RF COIL |
4,760 |
|
Datasheet | MLRF10M | Axial | Tape & Reel (TR) | Active | - | Phenolic | 390 nH | ±10% | 700 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 365MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
MLRF10M120KMIL MOLDED AXIAL RF COIL |
4,516 |
|
Datasheet | MLRF10M | Axial | Tape & Reel (TR) | Active | - | Phenolic | 120 nH | ±10% | 1.27 A | - | Unshielded | 90mOhm Max | 40 @ 25MHz | 640MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
MLRF10M180KMIL MOLDED AXIAL RF COIL |
3,299 |
|
Datasheet | MLRF10M | Axial | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±10% | 1.105 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
MLRF10M470KMIL MOLDED AXIAL RF COIL |
1,948 |
|
Datasheet | MLRF10M | Axial | Tape & Reel (TR) | Active | - | Phenolic | 470 nH | ±10% | 650 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
MLRF10M330KMIL MOLDED AXIAL RF COIL |
2,845 |
|
Datasheet | MLRF10M | Axial | Tape & Reel (TR) | Active | - | Phenolic | 330 nH | ±10% | 815 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
MLRF10M270KMIL MOLDED AXIAL RF COIL |
3,382 |
|
Datasheet | MLRF10M | Axial | Tape & Reel (TR) | Active | - | Phenolic | 270 nH | ±10% | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
MLRF10M220KMIL MOLDED AXIAL RF COIL |
3,377 |
|
Datasheet | MLRF10M | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±10% | 1.025 A | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
MLRF10M100KMIL MOLDED AXIAL RF COIL |
1,736 |
|
Datasheet | MLRF10M | Axial | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±10% | 1.35 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
MLRF10M150KMIL MOLDED AXIAL RF COIL |
1,552 |
|
Datasheet | MLRF10M | Axial | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
SRP0515-1R5KFIXED IND 1.5UH 6.3A 24.2MOHM SM |
4,703 |
|
Datasheet | SRP0515 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1.5 µH | ±10% | 6.3 A | 9.4A | Shielded | 24.2mOhm Max | 49 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|

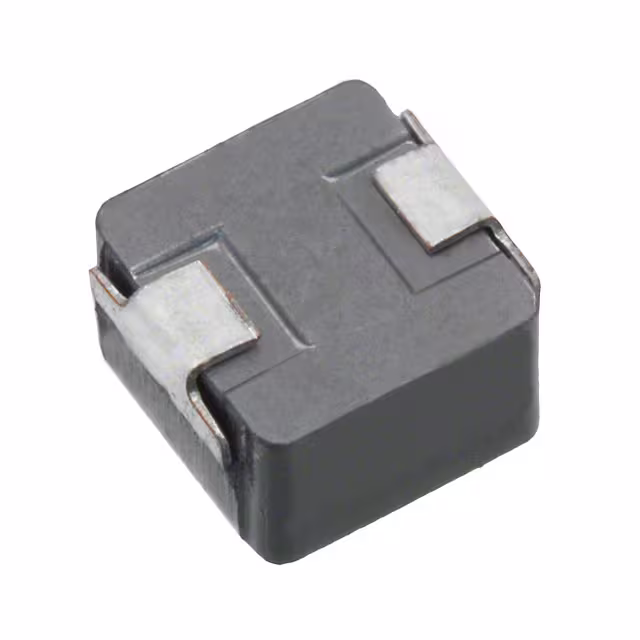

PCMC053T-R68MNFIXED IND 680NH 8.5A 12 MOHM SMD |
1,551 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 nH | ±20% | 8.5 A | 14A | Unshielded | 12mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.118" (3.00mm) |
|
|
PCMC053T-1R0MNFIXED IND 1UH 7A 14 MOHM SMD |
2,098 |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±20% | 7 A | 11A | Unshielded | 14mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.118" (3.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
