Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1040-R80MFIXED IND 800NH 21A 3 MOHM SMD |
1,418 |
|
Datasheet | SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 800 nH | ±20% | 21 A | 30A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|

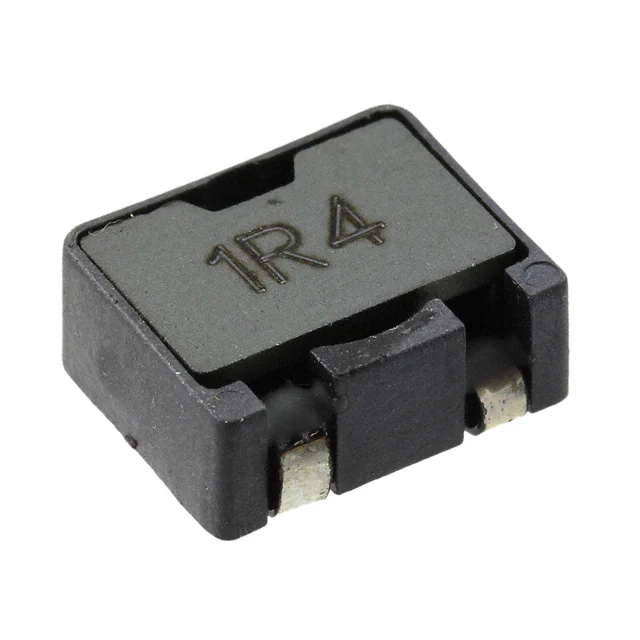

SRP1045-1R4MFIXED IND 1.4UH 13A 4.4 MOHM SMD |
1,891 |
|
Datasheet | SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.4 µH | ±20% | 13 A | 14A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-2R2MFIXED IND 2.2UH 9.5A 8.7MOHM SMD |
4,203 |
|
Datasheet | SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 9.5 A | 10A | Shielded | 8.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-3R2MFIXED IND 3.2UH 8A 10.4 MOHM SMD |
2,342 |
|
Datasheet | SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.2 µH | ±20% | 8 A | 8A | Shielded | 10.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-R36YFIXED IND 360NH 23A 1.7 MOHM SMD |
2,099 |
|
Datasheet | SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 360 nH | ±30% | 23 A | 26A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|

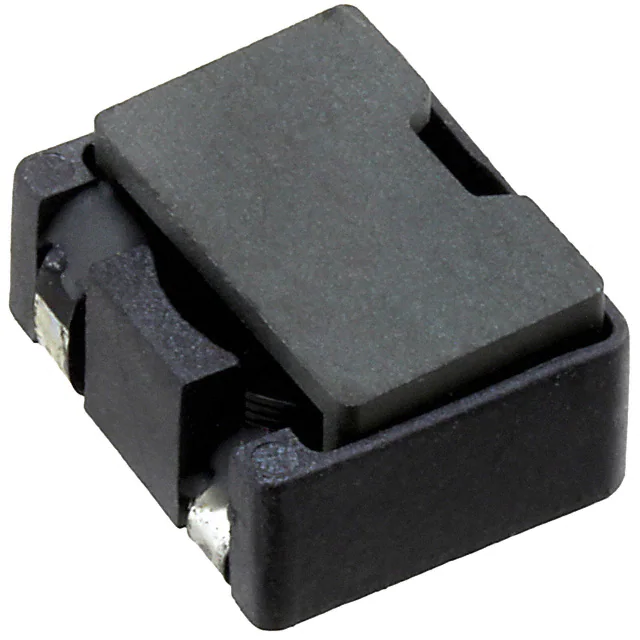

SRP1055-4R3MFIXED IND 4.3UH 10A 8.5 MOHM SMD |
2,472 |
|
Datasheet | SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.3 µH | ±20% | 10 A | 8A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.228" (5.80mm) |
|
|
SRP1055-7R2MFIXED IND 7.2UH 7A 15.5 MOHM SMD |
1,061 |
|
Datasheet | SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7.2 µH | ±20% | 7 A | 6.2A | Shielded | 15.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.228" (5.80mm) |
|

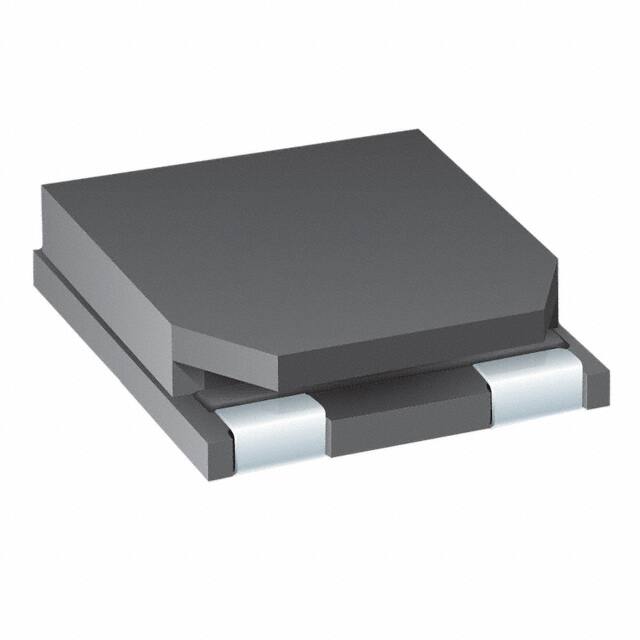

SRP1204-1R1MFIXED IND 1.1UH 12A 4.5 MOHM SMD |
4,890 |
|
Datasheet | SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.1 µH | ±20% | 12 A | 13A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|
|
SRP1204-R50MFIXED IND 550NH 13A 3 MOHM SMD |
4,270 |
|
Datasheet | SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 550 nH | ±20% | 13 A | 14A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|

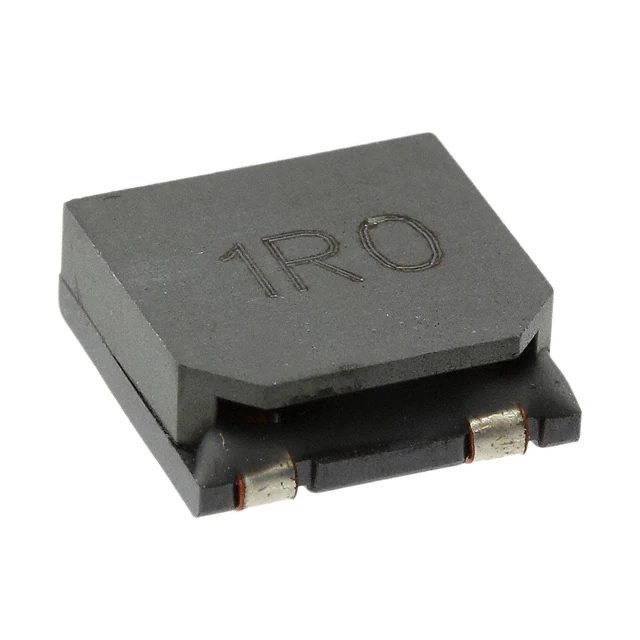

SRP1205-1R0YFIXED IND 1UH 14A 3.4 MOHM SMD |
1,678 |
|
Datasheet | SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±25% | 14 A | 22A | Shielded | 3.4mOhm Max | - | 75MHz | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
