Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9230-70FIXED IND 120UH 97MA 13 OHM TH |
3,478 |
|
Datasheet | 9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 120 µH | ±10% | 97 mA | - | Unshielded | 13Ohm Max | 30 @ 790kHz | 12MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-72FIXED IND 150UH 85MA 15 OHM TH |
3,200 |
|
Datasheet | 9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 150 µH | ±10% | 85 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-74FIXED IND 180UH 79MA 17 OHM TH |
4,566 |
|
Datasheet | 9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 180 µH | ±10% | 79 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-78FIXED IND 270UH 65MA 25 OHM TH |
4,229 |
|
Datasheet | 9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 270 µH | ±10% | 65 mA | - | Unshielded | 25Ohm Max | 30 @ 790kHz | 8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-86FIXED IND 560UH 48MA 46 OHM TH |
2,448 |
|
Datasheet | 9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 560 µH | ±10% | 48 mA | - | Unshielded | 46Ohm Max | 30 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-90FIXED IND 820UH 40MA 65 OHM TH |
2,554 |
|
Datasheet | 9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 820 µH | ±10% | 40 mA | - | Unshielded | 65Ohm Max | 30 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-96FIXED IND 120NH 1.1A 80 MOHM TH |
4,427 |
|
Datasheet | 9230 | Axial | Bulk | Obsolete | Molded | Phenolic | 120 nH | ±10% | 1.1 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 650MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

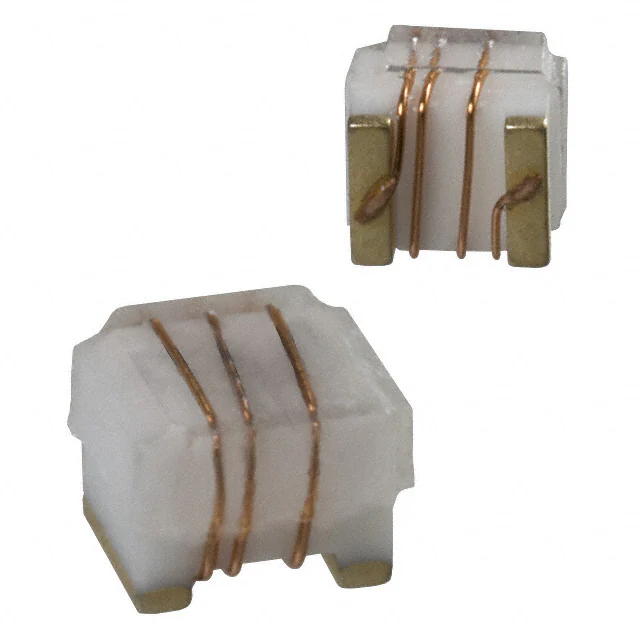

PM1008-8R2KFIXED IND 8.2UH 150MA 9.5OHM SMD |
1,473 |
|
Datasheet | PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 8.2 µH | ±10% | 150 mA | - | Unshielded | 9.5Ohm | 20 @ 25MHz | 35MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
PM125S-120MFIXED IND 12UH 2.5A 50 MOHM SMD |
1,085 |
|
Datasheet | PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.5 A | 5.31A | Shielded | 50mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-121MFIXED IND 120UH 950MA 280MOHM SM |
4,005 |
|
Datasheet | PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 950 mA | 950mA | Shielded | 280mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
