Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP4020FA-4R7MFIXED IND 4.7UH 5.1A 57.2MOHM SM |
3,842 |
|
Datasheet | SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 5.1 A | 2.7A | Shielded | 57.2mOhm Max | 15 @ 100kHz | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
SRP6540-3R3MFIXED IND 3.3UH 6.5A 23 MOHM SMD |
3,143 |
|
Datasheet | SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6.5 A | 7A | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP4020FA-1R2MFIXED IND 1.2UH 9.5A 13.4MOHM SM |
2,720 |
|
Datasheet | SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 9.5 A | 5A | Shielded | 13.4mOhm Max | 20 @ 100kHz | 53MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
SRP6540-R82MFIXED IND 820NH 15A 5.5 MOHM SMD |
2,426 |
|
Datasheet | SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±20% | 15 A | 15A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP6540-6R8MFIXED IND 6.8UH 5A 49.5 MOHM SMD |
5,640 |
|
Datasheet | SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 5 A | 5.5A | Shielded | 49.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|

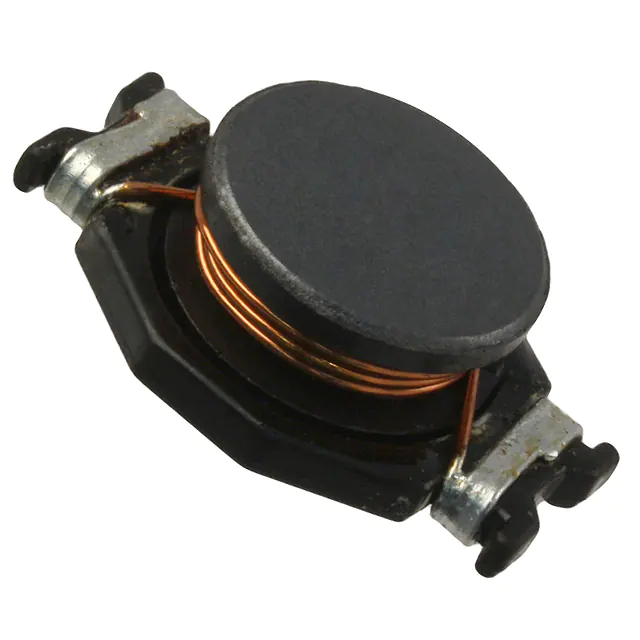

SDR2207-101KLFIXED IND 100UH 2.2A 168MOHM SMD |
1,864 |
|
Datasheet | SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.2 A | 3A | Unshielded | 168mOhm Max | 18 @ 2MHz | 6.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SDR2207-100MLFIXED IND 10UH 6.5A 17.2MOHM SMD |
882 |
|
Datasheet | SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.5 A | 10A | Unshielded | 17.2mOhm Max | 53 @ 5MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
RL895-100M-RCFIXED IND 10UH 2.6A 40 MOHM TH |
1,092 |
|
Datasheet | RL895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | - | Unshielded | 40mOhm Max | 40 @ 2.52MHz | 14MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
SRP1038A-6R8MFIXED IND 6.8UH 8.5A 23.3MOHM SM |
15,406 |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 8.5 A | 13.5A | Shielded | 23.3mOhm Max | 20 @ 100kHz | 13MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038A-2R2MFIXED IND 2.2UH 12A 7 MOHM SMD |
6,795 |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 12 A | 27A | Shielded | 7mOhm Max | 20 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
