Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1120-101KFIXED IND 100UH 4A 80 MOHM TH |
2,741 |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4 A | - | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

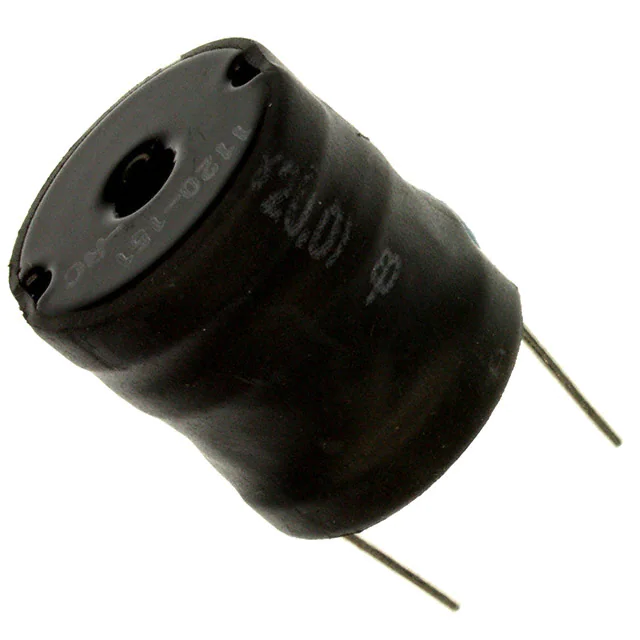

1120-151KFIXED IND 150UH 4A 98 MOHM TH |
2,389 |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 4 A | - | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

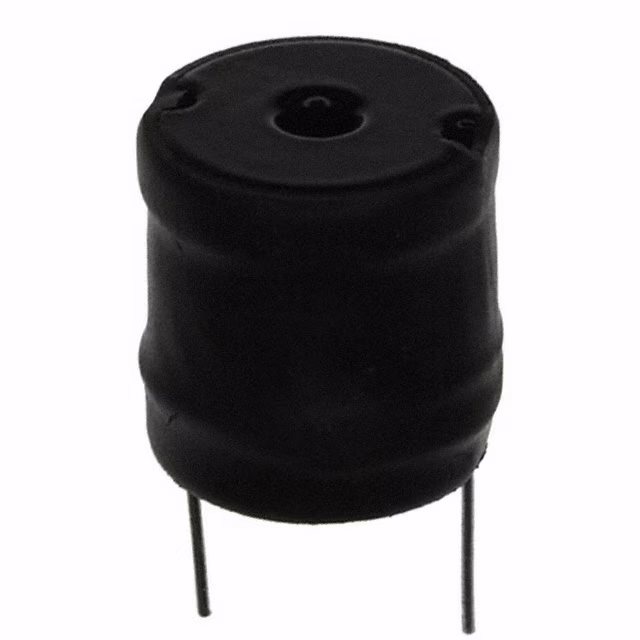

1120-221KFIXED IND 220UH 2.8A 150 MOHM TH |
2,721 |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 2.8 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-271KFIXED IND 270UH 2A 213 MOHM TH |
1,439 |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 2 A | - | Unshielded | 213mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

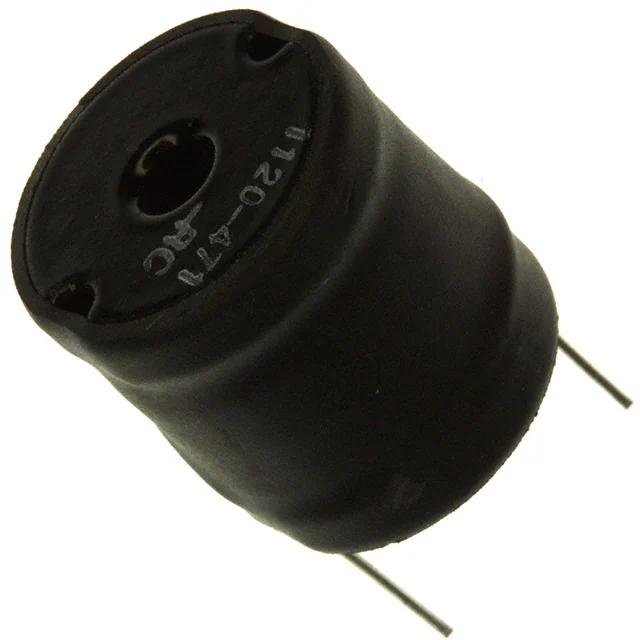

1120-471KFIXED IND 470UH 1.6A 355 MOHM TH |
2,031 |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.6 A | - | Unshielded | 355mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

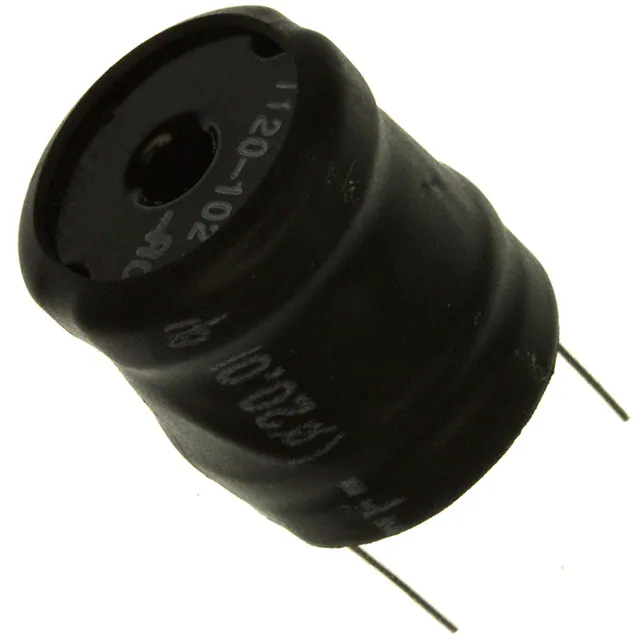

1120-102KFIXED IND 1MH 1A 818 MOHM TH |
4,841 |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1 A | - | Unshielded | 818mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

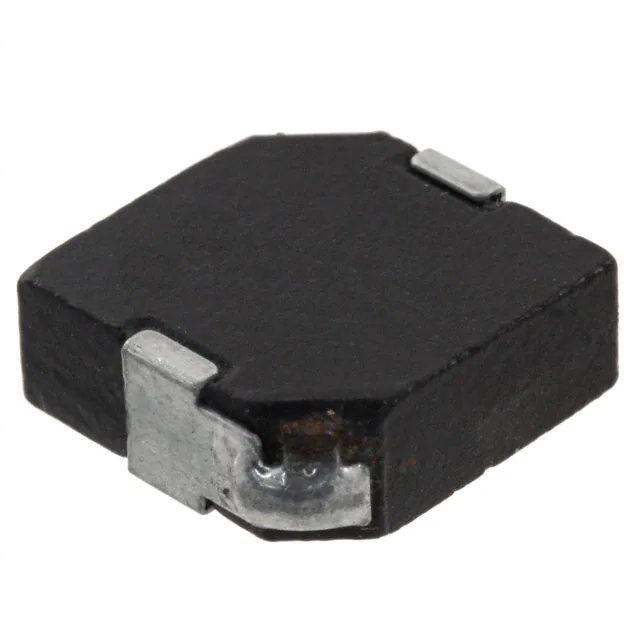

PM13666S-1R0M-RCFIXED IND 1UH 29A 2.5 MOHM SMD |
2,033 |
|
Datasheet | PM13666S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 29 A | 50A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
SRP1060VR-R15MIND 0.15UH 90A SLD SMD |
2,206 |
|
Datasheet | SRP1060VR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | Metal | 150 nH | ±20% | 90 A | 87A | Shielded | 210mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.228" W (12.70mm x 5.80mm) | 0.453" (11.50mm) |
|
|
SRP1060VR-90NMIND 0.09UH 90A SLD SMD |
3,374 |
|
Datasheet | SRP1060VR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | Metal | 90 nH | ±20% | 90 A | 95A | Shielded | 210mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.228" W (12.70mm x 5.80mm) | 0.453" (11.50mm) |
|
|
SRP1060VR-R10MIND 0.10UH 90A SLD SMD |
1,252 |
|
Datasheet | SRP1060VR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | Metal | 100 nH | ±20% | 90 A | 93A | Shielded | 210mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.228" W (12.70mm x 5.80mm) | 0.453" (11.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
