Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

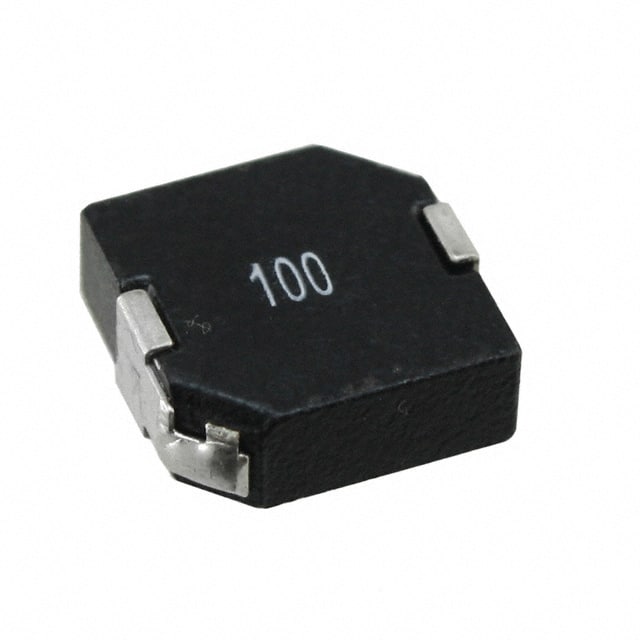

PM13560S-100MFIXED IND 10UH 7.5A 14.9MOHM SMD |
2,465 |
|
Datasheet | PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±20% | 7.5 A | - | Shielded | 14.9mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
2200HT-150-V-RCFIXED IND 15UH 10.3A 17 MOHM TH |
1,715 |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 15 µH | ±15% | 10.3 A | - | Shielded | 17mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-180-V-RCFIXED IND 18UH 9.7A 18 MOHM TH |
4,414 |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 18 µH | ±15% | 9.7 A | - | Shielded | 18mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-1R2-V-RCFIXED IND 1.2UH 23.8A 3 MOHM TH |
3,925 |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1.2 µH | ±15% | 23.8 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-270-V-RCFIXED IND 27UH 8.9A 22 MOHM TH |
1,384 |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 27 µH | ±15% | 8.9 A | - | Shielded | 22mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-2R2-V-RCFIXED IND 2.2UH 20.1A 5 MOHM TH |
2,146 |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 2.2 µH | ±15% | 20.1 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-391-V-RCFIXED IND 390UH 3A 190 MOHM TH |
1,579 |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 390 µH | ±15% | 3 A | - | Shielded | 190mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-3R3-V-RCFIXED IND 3.3UH 18.8A 5 MOHM TH |
4,458 |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 3.3 µH | ±15% | 18.8 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-470-V-RCFIXED IND 47UH 6.4A 42 MOHM TH |
4,552 |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 47 µH | ±15% | 6.4 A | - | Shielded | 42mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-5R6-V-RCFIXED IND 5.6UH 16.1A 7 MOHM TH |
4,389 |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 5.6 µH | ±15% | 16.1 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
