Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

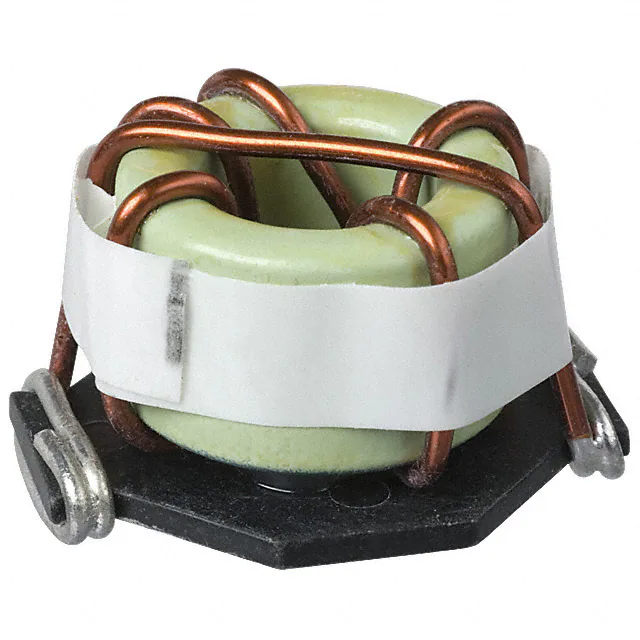

PM2120-1R2M-RCFIXED IND 1.2UH 25.4A 2 MOHM SMD |
2,235 |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 1.2 µH | ±20% | 25.4 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-2R7M-RCFIXED IND 2.7UH 19.7A 3 MOHM SMD |
2,236 |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 2.7 µH | ±20% | 19.7 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-3R3M-RCFIXED IND 3.3UH 18A 4 MOHM SMD |
3,473 |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 3.3 µH | ±20% | 18 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-3R9M-RCFIXED IND 3.9UH 18A 4 MOHM SMD |
1,660 |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 3.9 µH | ±20% | 18 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-1R8M-RCFIXED IND 1.8UH 22A 3 MOHM SMD |
4,881 |
|
Datasheet | PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 1.8 µH | ±20% | 22 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
2203-HFIXED IND 15UH 11.3A 8 MOHM TH |
2,648 |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 15 µH | ±15% | 11.3 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2205-HFIXED IND 22UH 10.3A 10 MOHM TH |
1,037 |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 22 µH | ±15% | 10.3 A | - | Shielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2206-HFIXED IND 27UH 9.8A 11 MOHM TH |
4,243 |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 27 µH | ±15% | 9.8 A | - | Shielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2207-HFIXED IND 33UH 7.4A 20 MOHM TH |
1,105 |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 33 µH | ±15% | 7.4 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2209-HFIXED IND 47UH 6.7A 24 MOHM TH |
3,796 |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 47 µH | ±15% | 6.7 A | - | Shielded | 24mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
