Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1305-R90ZLFIXED IND 900NH 20A 2.5 MOHM SMD |
3,915 |
|
Datasheet | SRR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±25% | 20 A | 22A | Shielded | 2.5mOhm Max | - | 95MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.209" (5.30mm) |
|

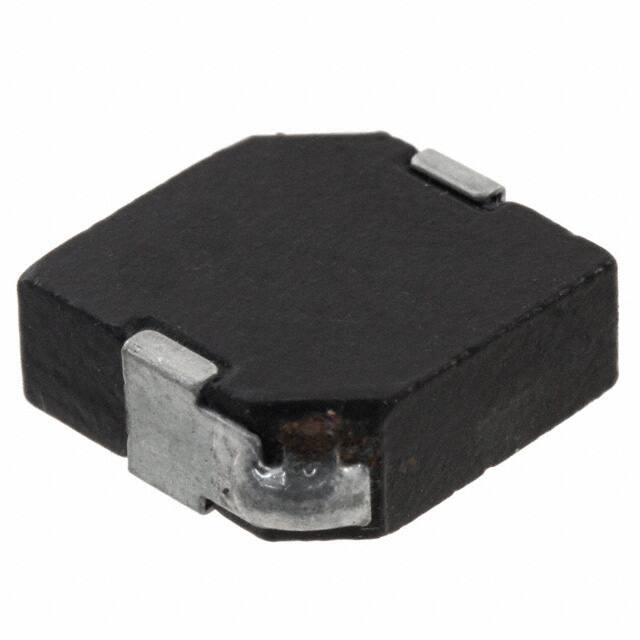

PM13666S-1R0MFIXED IND 1UH 25A 14.4 MOHM SMD |
2,485 |
|
Datasheet | PM13666S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 25 A | - | Shielded | 14.4mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
SRR1208-181YLFIXED IND 180UH 1.2A 270MOHM SMD |
4,803 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±15% | 1.2 A | 1.7A | Shielded | 270mOhm Max | 14 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
5300-02FIXED IND 1.2UH 3.2A 19 MOHM TH |
4,519 |
|
Datasheet | 5300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 3.2 A | 2.7A | Unshielded | 19mOhm Max | - | 170MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
SRU1028A-1R5YFIXED IND 1.5UH 6.5A 10 MOHM SMD |
3,582 |
|
Datasheet | SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.5 A | 6.5A | Shielded | 10mOhm Max | 12 @ 7.96MHz | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
SRU1028A-4R7YFIXED IND 4.7UH 4.5A 23 MOHM SMD |
4,086 |
|
Datasheet | SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.5 A | 3.8A | Shielded | 23mOhm Max | 12 @ 7.96MHz | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
SRU1028A-6R8YFIXED IND 6.8UH 3.5A 33 MOHM SMD |
4,682 |
|
Datasheet | SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.5 A | 3A | Shielded | 33mOhm Max | 12 @ 7.96MHz | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
SRU1028A-8R2YFIXED IND 8.2UH 3.3A 37 MOHM SMD |
2,154 |
|
Datasheet | SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 3.3 A | 2.7A | Shielded | 37mOhm Max | 12 @ 7.96MHz | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
SRU1028A-330YFIXED IND 33UH 1.25A 180MOHM SMD |
3,725 |
|
Datasheet | SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.25 A | 1.2A | Shielded | 180mOhm Max | 24 @ 2.52MHz | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
SRU1028A-470YFIXED IND 47UH 1.3A 230 MOHM SMD |
3,165 |
|
Datasheet | SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.3 A | 1.1A | Shielded | 230mOhm Max | 20 @ 2.52MHz | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
