Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-64FIXED IND 68UH 135MA 6.7 OHM TH |
1,572 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 135 mA | - | Unshielded | 6.7Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

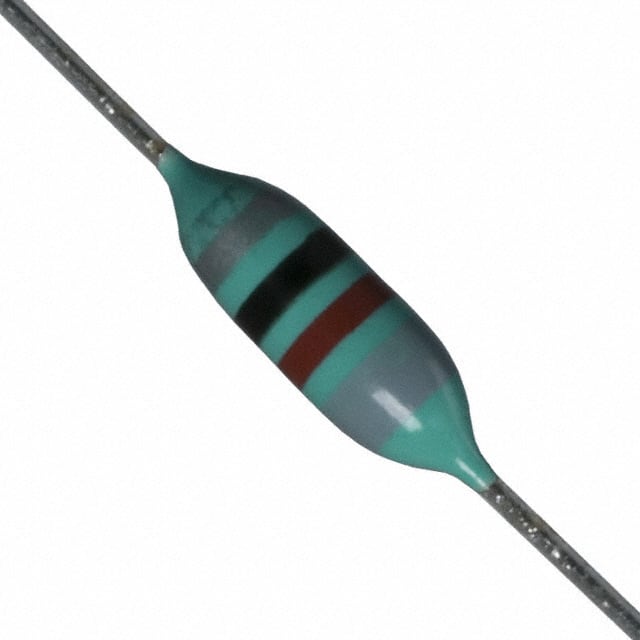

8230-66FIXED IND 82UH 130MA 7.3 OHM TH |
1,328 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 130 mA | - | Unshielded | 7.3Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-68FIXED IND 100UH 125MA 8 OHM TH |
4,925 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 125 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-72FIXED IND 150UH 85MA 15 OHM TH |
3,643 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 85 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-74FIXED IND 180UH 79MA 17 OHM TH |
2,440 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 79 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

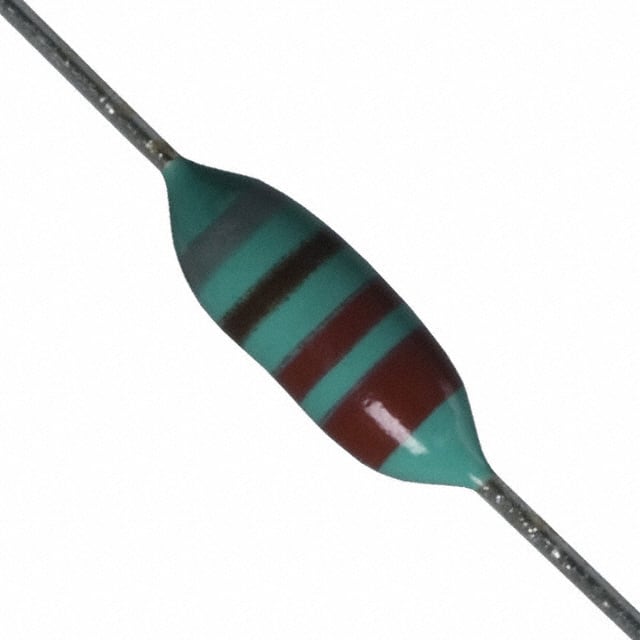

8230-76FIXED IND 220UH 73MA 21 OHM TH |
4,272 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 73 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-78FIXED IND 270UH 65MA 25 OHM TH |
1,039 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 65 mA | - | Unshielded | 25Ohm Max | 30 @ 790kHz | 8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-80FIXED IND 330UH 62MA 28 OHM TH |
3,380 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 62 mA | - | Unshielded | 28Ohm Max | 30 @ 790kHz | 4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-82FIXED IND 390UH 55MA 35 OHM TH |
4,783 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 55 mA | - | Unshielded | 35Ohm Max | 30 @ 790kHz | 6.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-84FIXED IND 470UH 50MA 42 OHM TH |
4,777 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 50 mA | - | Unshielded | 42Ohm Max | 30 @ 790kHz | 6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
