Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

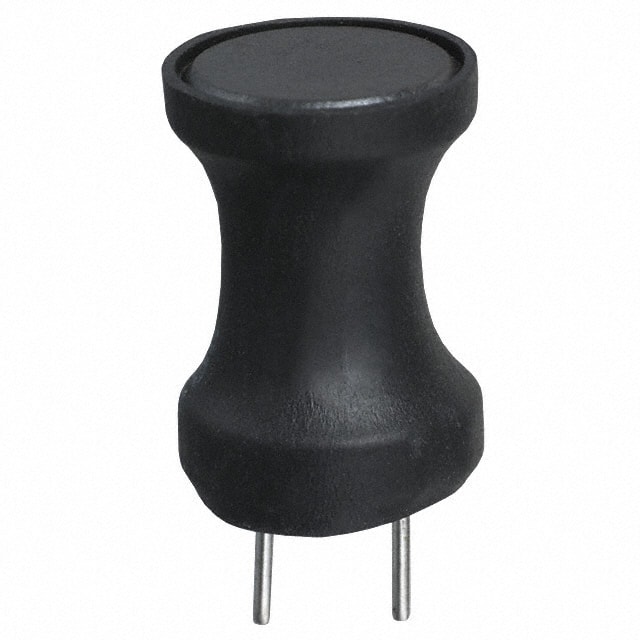

RL824-470K-RCFIXED IND 47UH 1.29A 110 MOHM TH |
2,809 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.29 A | - | Unshielded | 110mOhm Max | 58 @ 2.5MHz | 4.1MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-121K-RCFIXED IND 120UH 940MA 190MOHM TH |
4,779 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 940 mA | - | Unshielded | 190mOhm Max | 58 @ 790kHz | 2.6MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-151K-RCFIXED IND 150UH 920MA 220MOHM TH |
2,467 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 920 mA | - | Unshielded | 220mOhm Max | 58 @ 790kHz | 2.2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-391K-RCFIXED IND 390UH 520MA 560MOHM TH |
1,000 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 520 mA | - | Unshielded | 560mOhm Max | 35 @ 790kHz | 1.4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-821K-RCFIXED IND 820UH 400MA 860MOHM TH |
4,599 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 400 mA | - | Unshielded | 860mOhm Max | 26 @ 790kHz | 1MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-152K-RCFIXED IND 1.5MH 270MA 2.1 OHM TH |
2,997 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 270 mA | - | Unshielded | 2.1Ohm Max | 45 @ 250kHz | 770kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-122K-RCFIXED IND 1.2MH 280MA 1.8 OHM TH |
4,189 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 280 mA | - | Unshielded | 1.8Ohm Max | 45 @ 250kHz | 830kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-182K-RCFIXED IND 1.8MH 240MA 2.3 OHM TH |
2,953 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 240 mA | - | Unshielded | 2.3Ohm Max | 45 @ 250kHz | 710kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-220K-RCFIXED IND 22UH 1.7A 76 MOHM TH |
1,201 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.7 A | - | Unshielded | 76mOhm Max | 135 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
|
RL824-271K-RCFIXED IND 270UH 600MA 480MOHM TH |
4,144 |
|
Datasheet | RL824 | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 600 mA | - | Unshielded | 480mOhm Max | 35 @ 790kHz | 1.6MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
