Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM40-R22MFIXED IND 220NH 450MA 320MOHM SM |
4,942 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 220 nH | ±20% | 450 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 350MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

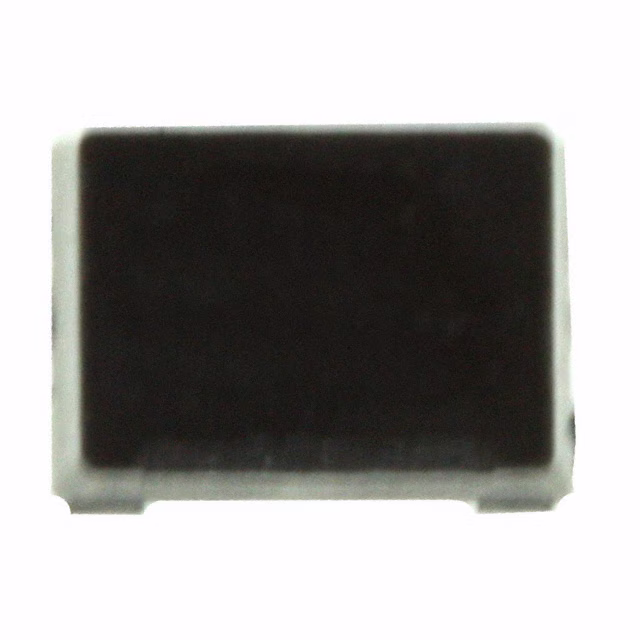

PM40-R27MFIXED IND 270NH 450MA 360MOHM SM |
4,486 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 270 nH | ±20% | 450 mA | - | Unshielded | 360mOhm Max | 30 @ 25.2MHz | 320MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-R33MFIXED IND 330NH 450MA 400MOHM SM |
2,606 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 330 nH | ±20% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 300MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-R47MFIXED IND 470NH 450MA 500MOHM SM |
2,571 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 470 nH | ±20% | 450 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 320MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

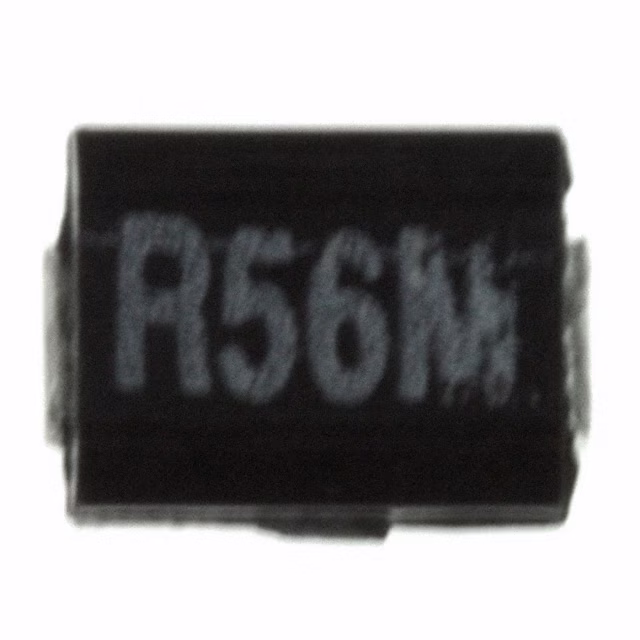

PM40-R56MFIXED IND 560NH 450MA 550MOHM SM |
4,038 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 560 nH | ±20% | 450 mA | - | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 180MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
PM40-R68MFIXED IND 680NH 450MA 600MOHM SM |
3,479 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 680 nH | ±20% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 160MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-1R0KFIXED IND 1UH 450MA 500 MOHM SMD |
4,281 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 1 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 100MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-1R2KFIXED IND 1.2UH 430MA 550MOHM SM |
1,966 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 1.2 µH | ±10% | 430 mA | - | Unshielded | 550mOhm Max | 50 @ 7.96MHz | 80MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-1R5KFIXED IND 1.5UH 410MA 600MOHM SM |
3,989 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 1.5 µH | ±10% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.96MHz | 70MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-2R2KFIXED IND 2.2UH 380MA 700MOHM SM |
1,047 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 2.2 µH | ±10% | 380 mA | - | Unshielded | 700mOhm Max | 50 @ 7.96MHz | 55MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
