Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP3020CC-100MIND SMD 10UH 1.3A |
1,318 |
|
Datasheet | SRP3020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 10 µH | ±20% | 1.3 A | 1.3A | Shielded | 422mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRP3020CC-R36MIND SMD 0.36UH 7A |
1,965 |
|
Datasheet | SRP3020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 360 nH | ±20% | 7 A | 8A | Shielded | 21mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRP3020CC-R22YIND SMD 0.22UH 8.5A |
4,871 |
|
Datasheet | SRP3020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 220 nH | ±30% | 8.5 A | 9.2A | Shielded | 14mOhm Max | - | 185MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
5300-41-TR-RCINDUCTOR, AXIAL, CONFORMAL COA |
2,588 |
|
Datasheet | 5300 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 mH | ±10% | 100 mA | 64mA | Unshielded | 19Ohm Max | - | 640kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
70F335AIFIXED IND 33UH 208MA 2.76 OHM TH |
4,528 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 33 µH | ±5% | 208 mA | - | Unshielded | 2.76Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|

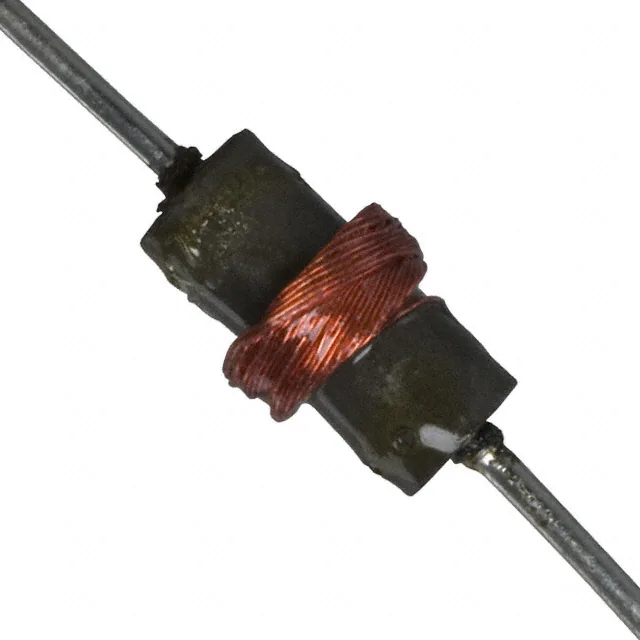

70F475AIFIXED IND 47UH 188MA 3.36 OHM TH |
1,343 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 47 µH | ±5% | 188 mA | - | Unshielded | 3.36Ohm Max | 44 @ 2.5MHz | 9.1MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
PM5022S-101MFIXED IND 100UH 1.7A 207MOHM SMD |
4,776 |
|
Datasheet | PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.7 A | 2.4A | Shielded | 207mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-470MFIXED IND 47UH 2.4A 97 MOHM SMD |
3,959 |
|
Datasheet | PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.4 A | 4A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
SRR1240-561KFIXED IND 560UH 550MA 1.5OHM SMD |
1,121 |
|
Datasheet | SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 550 mA | 520mA | Shielded | 1.5Ohm Max | 12 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SRR1240-681KFIXED IND 680UH 500MA 2 OHM SMD |
2,394 |
|
Datasheet | SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 500 mA | 480mA | Shielded | 2Ohm Max | 14 @ 796kHz | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
