Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM40-820KFIXED IND 82UH 120MA 7 OHM SMD |
4,957 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 82 µH | ±10% | 120 mA | - | Unshielded | 7Ohm Max | 50 @ 2.52MHz | 8MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-561KFIXED IND 560UH 50MA 30 OHM SMD |
2,777 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 560 µH | ±10% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 2MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
PM40-821KFIXED IND 820UH 30MA 45 OHM SMD |
2,016 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 820 µH | ±10% | 30 mA | - | Unshielded | 45Ohm Max | 30 @ 796kHz | 2MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

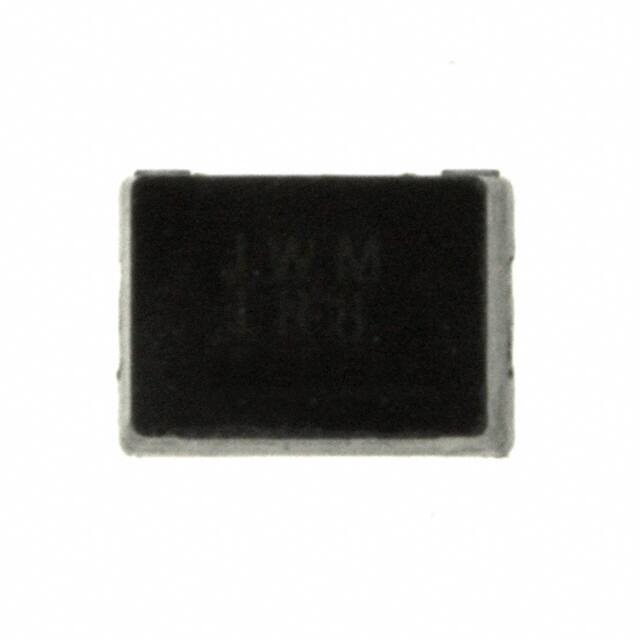

PM40-1R8KFIXED IND 1.8UH 390MA 650MOHM SM |
4,749 |
|
Datasheet | PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 1.8 µH | ±10% | 390 mA | - | Unshielded | 650mOhm Max | 50 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM20-R018MFIXED IND 18NH 450MA 180MOHM SMD |
3,650 |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 18 nH | ±20% | 450 mA | - | Unshielded | 180mOhm Max | 21 @ 100MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-100KFIXED IND 10UH 150MA 2.5 OHM SMD |
2,688 |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 10 µH | ±10% | 150 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 36MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-101KFIXED IND 100UH 40MA 10 OHM SMD |
1,490 |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 100 µH | ±10% | 40 mA | - | Unshielded | 10Ohm Max | 20 @ 796kHz | 10MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-120KFIXED IND 12UH 140MA 2.8 OHM SMD |
2,384 |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 12 µH | ±10% | 140 mA | - | Unshielded | 2.8Ohm Max | 30 @ 2.52MHz | 33MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-121KFIXED IND 120UH 70MA 11 OHM SMD |
2,454 |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 120 µH | ±10% | 70 mA | - | Unshielded | 11Ohm Max | 20 @ 796kHz | 10MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
PM20-150KFIXED IND 15UH 130MA 3.2 OHM SMD |
4,119 |
|
Datasheet | PM20 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 15 µH | ±10% | 130 mA | - | Unshielded | 3.2Ohm Max | 30 @ 2.52MHz | 30MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
