Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR0745A-120MFIXED IND 12UH 2A 62 MOHM SMD |
3,303 |
|
Datasheet | SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±20% | 2 A | 2.3A | Shielded | 62mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
SRP1038CC-4R7MIND SMD 4.7UH 13A |
4,720 |
|
Datasheet | SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 13 A | 20A | Shielded | 15.5mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
6000-3R3M-RCFIXED IND 3.3UH 5.5A 25 MOHM TH |
2,217 |
|
Datasheet | 6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.5 A | - | Unshielded | 25mOhm Max | 20 @ 7.96MHz | 79MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
6100-330K-RCFIXED IND 33UH 3.39A 0.059OHM TH |
1,654 |
|
Datasheet | 6100 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 3.39 A | - | Unshielded | 59mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.413" (10.50mm) |
|
|
SRP1038CC-8R2MIND SMD 8.2UH 9A |
1,137 |
|
Datasheet | SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 9 A | 13.5A | Shielded | 22.5mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP3012TA-100MFIXED IND 10UH 1A 550 MOHM SMD |
1,378 |
|
Datasheet | SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 1 A | 1.4A | Shielded | 550mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
SRR1005-470YFIXED IND 47UH 1A 190 MOHM SMD |
1,735 |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 1 A | 1.3A | Shielded | 190mOhm Max | 35 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

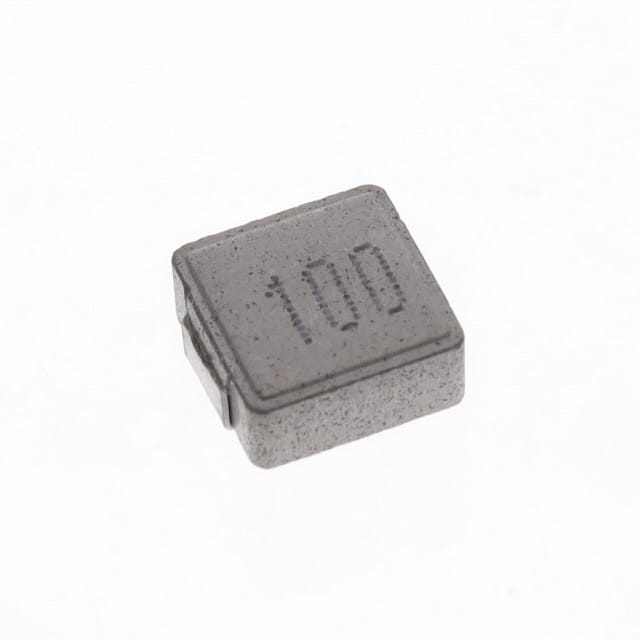

SRP6530A-100MIND,7.1X6.6X3MM,10UH20%,4A,SHD |
1,908 |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 4 A | 7A | Shielded | 105mOhm Max | 26 @ 2.52MHz | 10MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP1038CC-220MIND SMD 22UH 5.2A |
3,720 |
|
Datasheet | SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 22 µH | ±20% | 5.2 A | 7.5A | Shielded | 74mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
PM127SH-100M-RCFIXED IND 10UH 6A 19.5 MOHM SMD |
1,329 |
|
Datasheet | PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6 A | 6.3A | Shielded | 19.5mOhm Max | 24 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
