Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS160808-R82KFIXED IND 820NH 100MA 1.4OHM SMD |
9,843 |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±10% | 100 mA | - | Shielded | 1.4Ohm Max | 30 @ 25MHz | 75MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CS160808-R47KFIXED IND 470NH 150MA 700MOHM SM |
4,171 |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±10% | 150 mA | - | Shielded | 700mOhm Max | 30 @ 25MHz | 105MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-,95.jpg "CVH160808-R47M")
|
CVH160808-R47MFIXED IND 470NH 1.2A 125MOHM SMD |
2,863 |
|
Datasheet | CVH160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.2 A | - | Shielded | 125mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |

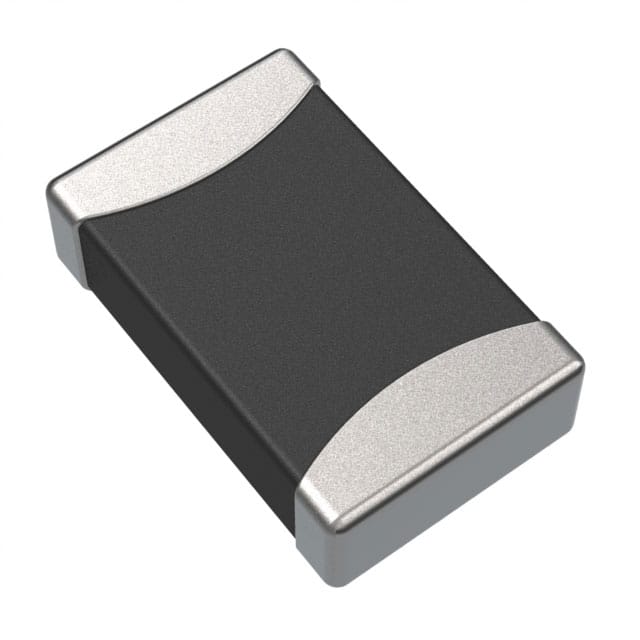

-,55.jpg "CVH201205-2R2M")
|
CVH201205-2R2MFIXED IND 2.2UH 600MA 412.5 MOHM |
10,528 |
|
Datasheet | CVH201205 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 600 mA | - | Shielded | 412.5mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
.JPG "CW161009A-20NJ")
|
CW161009A-20NJFIXED IND 20NH 700MA 120MOHM SMD |
20,285 |
|
Datasheet | CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 20 nH | ±5% | 700 mA | - | Unshielded | 120mOhm Max | 35 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
.JPG "CW105550A-3N9J")
|
CW105550A-3N9JFIXED IND 3.9NH 840MA 66MOHM SMD |
11,917 |
|
Datasheet | CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.9 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW105550A-10NJFIXED IND 10NH 480MA 195MOHM SMD |
8,888 |
|
Datasheet | CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 10 nH | ±5% | 480 mA | - | Unshielded | 195mOhm Max | 23 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW105550A-R12JFIXED IND 120NH 110MA 2.66OHM SM |
8,000 |
|
Datasheet | CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 120 nH | ±5% | 110 mA | - | Unshielded | 2.66Ohm Max | 20 @ 150MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
SRN2012T-2R2KIND,2X1.2X1.2MM,2.2UH10%,1.04A,S |
38,991 |
|
Datasheet | SRN2012T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 1.04 A | 740mA | Shielded | 180mOhm | 13 @ 7.9MHz | 100MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
|
|
SRN2012T-4R7KIND,2X1.2X1.2MM,4.7UH10%,0.84A,S |
8,931 |
|
Datasheet | SRN2012T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 840 mA | 520mA | Shielded | 360mOhm | 14 @ 7.9MHz | 65MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
