Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1140-152K-RCFIXED IND 1.5MH 2.9A 324 MOHM TH |
123 |
|
Datasheet | 1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 2.9 A | 5.3A | Unshielded | 324mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
C-7XFIXED IND 10H 90MA 270 OHM CHASS |
691 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 10 H | -20%, +50% | 90 mA | - | Unshielded | 270Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.312" L x 2.000" W (84.12mm x 50.80mm) | 1.940" (49.28mm) |
|

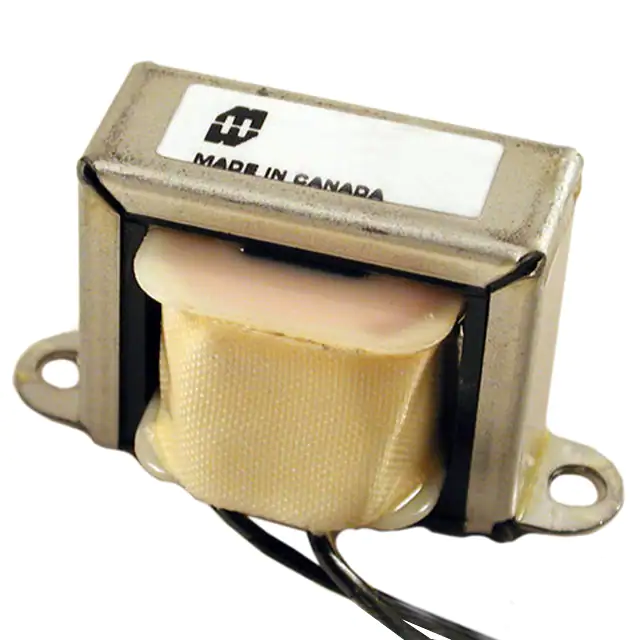

156BFIXED IND 1.5MH 5A 70 MOHM CHASS |
178 |
|
Datasheet | 156 | Nonstandard | Bulk | Active | - | - | 1.5 mH | ±15% | 5 A | - | Unshielded | 70mOhm | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) |
|
SHBC24W-2R1B0065VCMC 65UH 30A 2LN TH |
102 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 65 µH | ±20% | 30 A | - | Unshielded | 6.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 2.268" Dia (57.60mm) | 2.268" (57.60mm) |
|

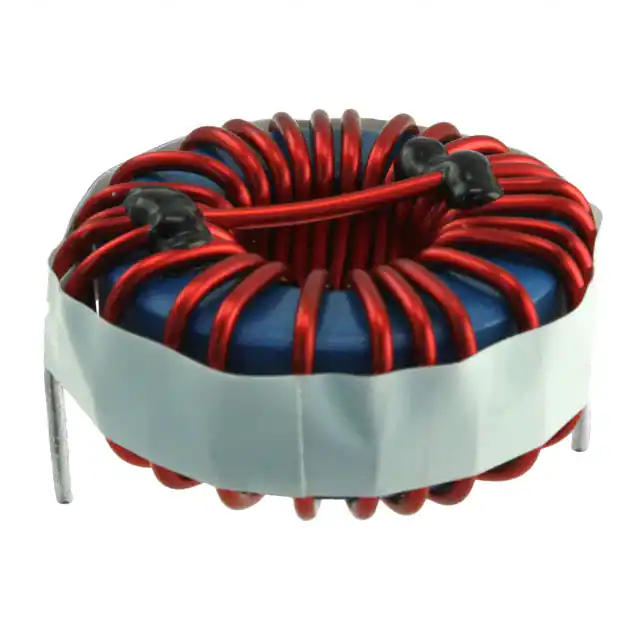

CTX100-10-52LPRFIXED IND 100UH 17.6A 10.9 MOHM |
289 |
|
Datasheet | CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 17.6 A | 13A | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.244" Dia (57.00mm) | 1.083" (27.50mm) |
|
C-59UFIXED IND 10MH 12.5A 100 MOHM |
290 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 10 mH | -20%, +50% | 12.5 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 4.125" L x 3.000" W (104.77mm x 76.20mm) | 3.500" (88.90mm) |
|
MLF2012A2R7JT000FIXED IND 2.7UH 50MA 550MOHM SMD |
16,304 |
|
Datasheet | MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±5% | 50 mA | - | Shielded | 550mOhm Max | 45 @ 10MHz | 70MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
 TDK.jpg "MLF2012E120JT000")
|
MLF2012E120JT000FIXED IND 12UH 15MA 900 MOHM SMD |
7,328 |
|
Datasheet | MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±5% | 15 mA | - | Shielded | 900mOhm Max | 50 @ 2MHz | 25MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
CLF6045NIT-1R5N-DFIXED IND 1.5UH 4.5A 17 MOHM SMD |
6,947 |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.5 A | 5.5A | Shielded | 17mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
MLF2012E100JT000FIXED IND 10UH 15MA 800 MOHM SMD |
6,855 |
|
Datasheet | MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±5% | 15 mA | - | Shielded | 800mOhm Max | 50 @ 2MHz | 30MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012A1R2JT000FIXED IND 1.2UH 80MA 350MOHM SMD |
5,583 |
|
Datasheet | MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±5% | 80 mA | - | Shielded | 350mOhm Max | 45 @ 10MHz | 110MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLF2012DR82JT000FIXED IND 820NH 150MA 650MOHM SM |
3,105 |
|
Datasheet | MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±5% | 150 mA | - | Shielded | 650mOhm Max | 25 @ 25MHz | 130MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CLF6045NIT-330M-DFIXED IND 33UH 1.1A 120 MOHM SMD |
2,778 |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 1.1A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
MLF2012DR56JT000FIXED IND 560NH 150MA 550MOHM SM |
2,510 |
|
Datasheet | MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 560 nH | ±5% | 150 mA | - | Shielded | 550mOhm Max | 25 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CLF6045NIT-221M-DFIXED IND 220UH 470MA 864MOHM SM |
2,248 |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 470 mA | 470mA | Shielded | 864mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
CLF6045NIT-100M-DFIXED IND 10UH 2.1A 42 MOHM SMD |
2,059 |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.1A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
MLF2012A3R3JT000FIXED IND 3.3UH 50MA 600MOHM SMD |
1,222 |
|
Datasheet | MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±5% | 50 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 60MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
BSCQ000603032N0B00FIXED IND 2NH 600MA 150MOHM SMD |
276,722 |
|
Datasheet | BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2 nH | ±0.1nH | 600 mA | - | Unshielded | 150mOhm Max | 14 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
BSCH000603033N6S00FIXED IND 3.6NH 310MA 250MOHM SM |
246,628 |
|
Datasheet | BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.6 nH | ±0.3nH | 310 mA | - | Unshielded | 250mOhm Max | 4 @ 100MHz | 6.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
BSCQ000603033N9B00FIXED IND 3.9NH 350MA 410MOHM SM |
235,394 |
|
Datasheet | BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.1nH | 350 mA | - | Unshielded | 410mOhm Max | 14 @ 500MHz | 7.7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
