Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV12033R3M-10FIXED IND 3.3UH 12A 12 MOHM SMD |
2,919 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 12 A | 27A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0404 (1010 Metric) | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.150" (3.80mm) |
|

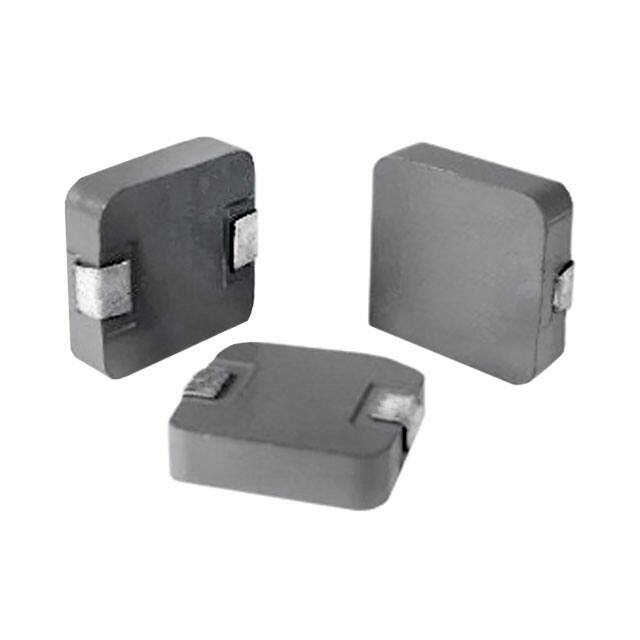

MGV12034R7M-10FIXED IND 4.7UH 10A 16 MOHM SMD |
3,176 |
|
Datasheet | MGV | Nonstandard, 2 Lead | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 10 A | 24A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.150" (3.80mm) |
|
1XC0236-1T0-10FIXED IND 4UH 8.5A 7 MOHM TH |
4,533 |
|
Datasheet | - | Radial, Horizontal Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4 µH | ±25% | 8.5 A | - | Unshielded | 7mOhm | - | - | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.382" Dia x 0.846" L (9.70mm x 21.50mm) | - |
|
|
MGV0602R10N-10FIXED IND 100NH 21A 2.4MOHM SMD |
1,800 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±30% | 21 A | 40A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602R22N-10FIXED IND 220NH 15A 4 MOHM SMD |
2,507 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±30% | 15 A | 32A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602R56M-10FIXED IND 560NH 11A 9.3MOHM SMD |
2,138 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 11 A | 18A | Shielded | 9.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV06021R2M-10FIXED IND 1.2UH 7.5A 23MOHM SMD |
2,168 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 7.5 A | 13A | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV06026R8M-10FIXED IND 6.8UH 4A 73 MOHM SMD |
3,425 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4 A | 5.5A | Shielded | 73mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602100M-10FIXED IND 10UH 2.8A 154MOHM SMD |
1,624 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.8 A | 4A | Shielded | 154mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602150M-10FIXED IND 15UH 2.1A 210MOHM SMD |
4,844 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.1 A | 3.3A | Shielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
