Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS60281R0N-10FIXED IND 1UH 5.2A 10 MOHM SMD |
3,748 |
|
Datasheet | TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 5.2 A | 5.75A | Shielded | 10mOhm | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
TYS6028680M-10FIXED IND 68UH 860MA 360MOHM SMD |
2,121 |
|
Datasheet | TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 860 mA | 800mA | Shielded | 360mOhm | - | 7.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|

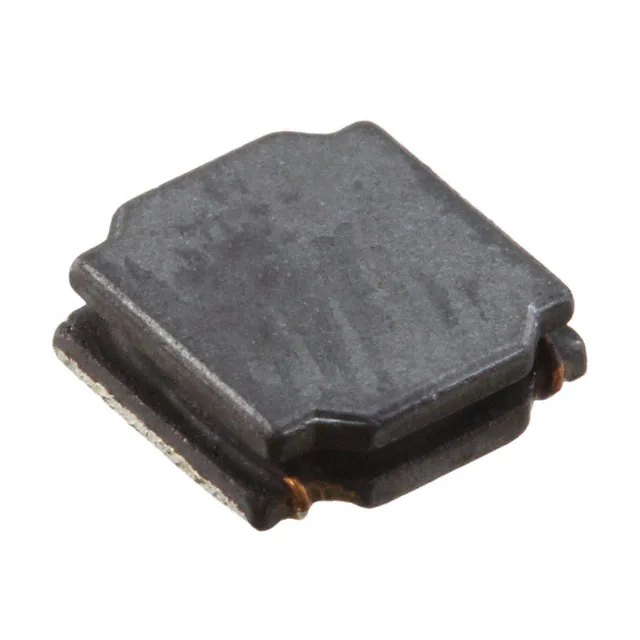

TYS6020220M-10FIXED IND 22UH 1A 204 MOHM SMD |
4,474 |
|
Datasheet | TYS6020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1 A | 1.05A | Shielded | 204mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
-Height-1,00.jpg "CPI0805E4R7R-10")
|
CPI0805E4R7R-10FIXED IND 4.7UH 500MA 300MOHM SM |
19,910 |
|
Datasheet | CPI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 500 mA | - | Unshielded | 300mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
TYS252012L220M-10FIXED IND 22UH 380MA 1.824OHM SM |
9,691 |
|
Datasheet | TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 380 mA | 530mA | Shielded | 1.824Ohm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
TYS8040330M-10FIXED IND 33UH 1.8A 97 MOHM SMD |
4,166 |
|
Datasheet | TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.8 A | 2.05A | Shielded | 97mOhm Max | - | 7.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS80406R8M-10FIXED IND 6.8UH 3.6A 24 MOHM SMD |
3,865 |
|
Datasheet | TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 3.6 A | 4.55A | Shielded | 24mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS80403R3N-10FIXED IND 3.3UH 4.4A 17 MOHM SMD |
3,339 |
|
Datasheet | TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 4.4 A | 6.5A | Shielded | 17mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS80402R2N-10FIXED IND 2.2UH 5.15A 12MOHM SMD |
3,000 |
|
Datasheet | TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 5.15 A | 7.1A | Shielded | 12mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS80404R7N-10FIXED IND 4.7UH 4.1A 19 MOHM SMD |
2,945 |
|
Datasheet | TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.9A | Shielded | 19mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
