Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-6SH221MFIXED IND 220UH 280MA 1.4OHM SMD |
4,780 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 280 mA | - | Shielded | 1.4Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|
|
ELL-6SH271MFIXED IND 270UH 260MA 2.4OHM SMD |
4,752 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 µH | ±20% | 260 mA | - | Shielded | 2.4Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|
|
ELL-6SH331MFIXED IND 330UH 240MA 2.7OHM SMD |
4,420 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±20% | 240 mA | - | Shielded | 2.7Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|
|
ELL-6SH471MFIXED IND 470UH 200MA 3.2OHM SMD |
2,846 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 µH | ±20% | 200 mA | - | Shielded | 3.2Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.130" (3.30mm) |
|
ELL-5PS1R2NFIXED IND 1.2UH 2.5A 22 MOHM SMD |
3,967 |
|
Datasheet | S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.2 µH | ±30% | 2.5 A | 2.5A | Shielded | 22mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

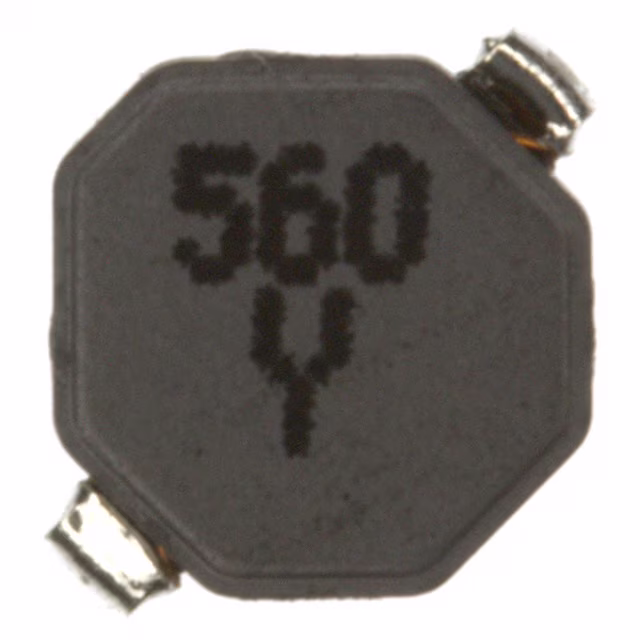

ELL-5PS560MFIXED IND 56UH 500MA 680MOHM SMD |
2,301 |
|
Datasheet | S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±20% | 500 mA | 430mA | Shielded | 680mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELL-5PS820MFIXED IND 82UH 360MA 1.16OHM SMD |
2,602 |
|
Datasheet | S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±20% | 360 mA | 340mA | Shielded | 1.16Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELL-6RH1R0MFIXED IND 1UH 3A 19 MOHM SMD |
1,434 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 3 A | - | Shielded | 19mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.110" (2.80mm) |
|
|
ELL-6RH1R5MFIXED IND 1.5UH 2.4A 24 MOHM SMD |
3,791 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±20% | 2.4 A | - | Shielded | 24mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.110" (2.80mm) |
|
|
ELL-6RH2R7MFIXED IND 2.7UH 1.8A 39 MOHM SMD |
1,654 |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±20% | 1.8 A | - | Shielded | 39mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.110" (2.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
