Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

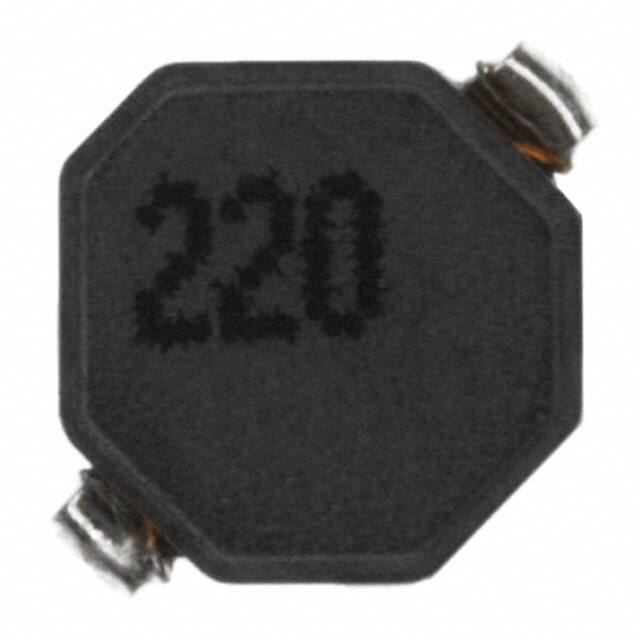

ELL-5PS220MFIXED IND 22UH 750MA 290MOHM SMD |
2,783 |
|
Datasheet | S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 750 mA | 650mA | Shielded | 290mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELL-5PS330MFIXED IND 33UH 490MA 470MOHM SMD |
1,499 |
|
Datasheet | S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 490 mA | 490mA | Shielded | 470mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

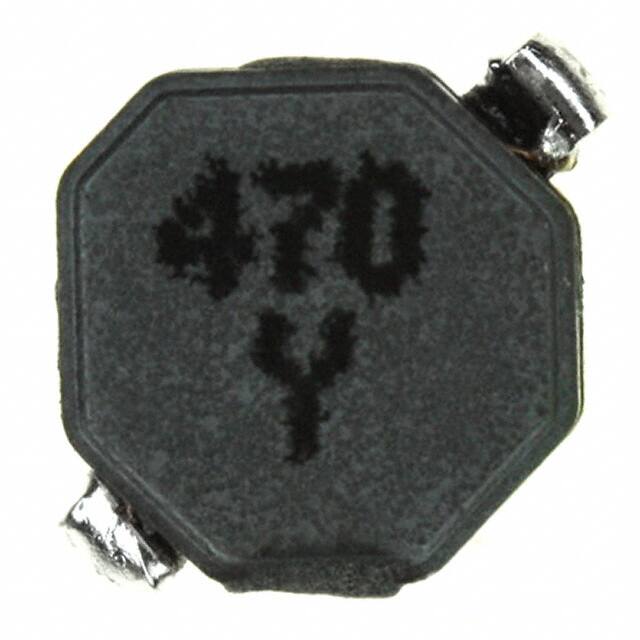

ELL-5PS470MFIXED IND 47UH 550MA 620MOHM SMD |
2,146 |
|
Datasheet | S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 550 mA | 450mA | Shielded | 620mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELL-5PS101MFIXED IND 100UH 340MA 1.32OHM SM |
1,236 |
|
Datasheet | S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 340 mA | 300mA | Shielded | 1.32Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELC-3GN1R0NFIXED IND 1UH 1.3A 64 MOHM SMD |
1,463 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±30% | 1.3 A | - | Unshielded | 64mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ELC-3GN1R6NFIXED IND 1.6UH 1.2A 83 MOHM SMD |
1,418 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.6 µH | ±30% | 1.2 A | - | Unshielded | 83mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ELC-3GN2R2NFIXED IND 2.2UH 1A 100 MOHM SMD |
1,704 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±30% | 1 A | - | Unshielded | 100mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ELC-3GN3R3NFIXED IND 3.3UH 970MA 130MOHM SM |
3,266 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±30% | 970 mA | - | Unshielded | 130mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ELC-3GN4R7NFIXED IND 4.7UH 760MA 200MOHM SM |
2,218 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±30% | 760 mA | - | Unshielded | 200mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ELC-3GN6R8NFIXED IND 6.8UH 680MA 250MOHM SM |
4,293 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 6.8 µH | ±30% | 680 mA | - | Unshielded | 250mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
