Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P6M3R3YLCFIXED IND 3.3UH 17A 6.6 MOHM SMD |
2,111 |
|
Datasheet | PCC-M1060ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 17 A | 26A | Shielded | 6.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.236" (6.00mm) |
|
|
ETQ-P6M2R5YLCFIXED IND 2.5UH 19.6A 5 MOHM SMD |
988 |
|
Datasheet | PCC-M1060ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.5 µH | ±20% | 19.6 A | 27A | Shielded | 5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.236" (6.00mm) |
|

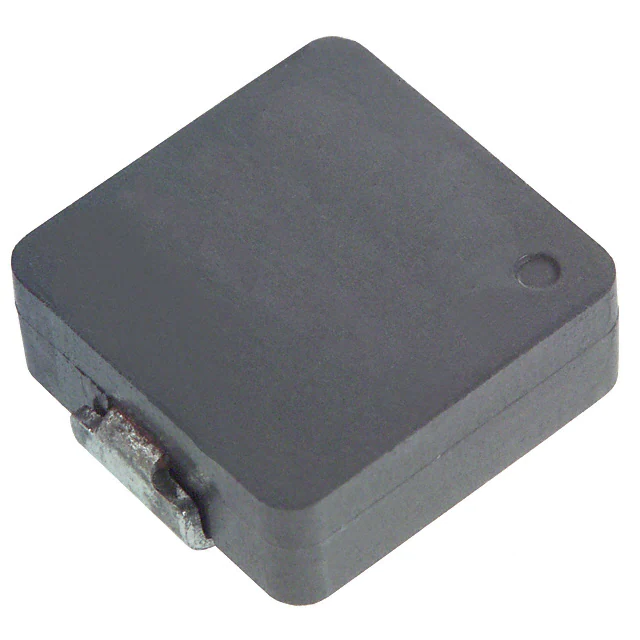

ETQ-P4LR36AFCFIXED IND 360NH 30A 0.76MOHM SMD |
2,742 |
|
Datasheet | PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 360 nH | ±20% | 30 A | - | Shielded | 0.76mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
ETQ-P5LR50XFAFIXED IND 500NH 30A 0.8 MOHM SMD |
1,154 |
|
Datasheet | PCC-M1250L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal Composite | 500 nH | ±20% | 30 A | - | Shielded | 0.8mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.197" (5.00mm) |
|
ETQ-P8M1R0JFAFIXED IND 1UH 31.8A 1.5 MOHM SMD |
739 |
|
Datasheet | PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 31.8 A | 44.4A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.520" W (12.60mm x 13.20mm) | 0.315" (8.00mm) |
|
|
ETQ-P8M3R3JFAFIXED IND 3.3UH 19.6A 3.96 MOHM |
593 |
|
Datasheet | PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 19.6 A | 27.6A | Shielded | 3.96mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.516" W (12.60mm x 13.10mm) | 0.315" (8.00mm) |
|
|
ETQ-P8M2R5JFAFIXED IND 2.5UH 23A 2.86MOHM SMD |
592 |
|
Datasheet | PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.5 µH | ±20% | 23 A | 32.1A | Shielded | 2.86mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.520" W (12.60mm x 13.20mm) | 0.315" (8.00mm) |
|
ETQ-P3MR68KVPFIXED IND 680NH 10.2A 8.36 MOHM |
7,297 |
|
Datasheet | PCC-M0530M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 10.2 A | 15.9A | Shielded | 8.36mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M1R5KVNFIXED IND 1.5UH 9.1A 12.1MOHM SM |
4,969 |
|
Datasheet | PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 9.1 A | 14.2A | Shielded | 12.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M3R3KVNFIXED IND 3.3UH 6.1A 26.51 MOHM |
6,005 |
|
Datasheet | PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 6.1 A | 11.5A | Shielded | 26.51mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
