Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-QF4N7ZFFIXED IND 4.7NH 360MA 170MOHM SM |
2,127 |
|
Datasheet | QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 4.7 nH | ±0.2nH | 360 mA | - | Unshielded | 170mOhm Max | 10 @ 100MHz | 4.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ELJ-RF4N3ZFBFIXED IND 4.3NH 360MA 160MOHM SM |
4,492 |
|
Datasheet | RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 4.3 nH | ±0.2nH | 360 mA | - | Unshielded | 160mOhm Max | 8 @ 100MHz | 5GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

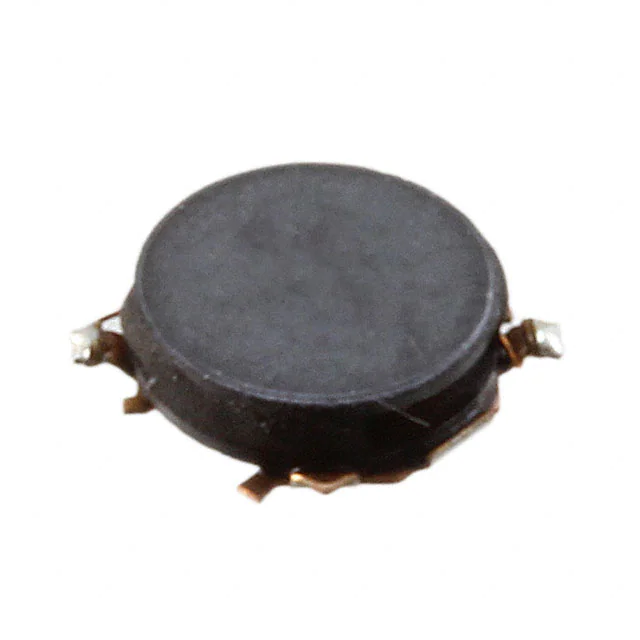

ELL-SFG121MAFIXED IND 120UH 210MA 3.1OHM SMD |
3,079 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±20% | 210 mA | 200mA | Shielded | 3.1Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG1R0NAFIXED IND 1UH 1.7A 49 MOHM SMD |
4,922 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 1.7 A | 1.8A | Shielded | 49mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG221MAFIXED IND 220UH 145MA 6.7OHM SMD |
2,373 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 145 mA | 140mA | Shielded | 6.7Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG680MAFIXED IND 68UH 310MA 1.5 OHM SMD |
4,098 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 310 mA | 270mA | Shielded | 1.5Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG820MAFIXED IND 82UH 270MA 2 OHM SMD |
4,374 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±20% | 270 mA | 220mA | Shielded | 2Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
ELG-TEA1R0NAFIXED IND 1UH 1A 150 MOHM SMD |
1,820 |
|
Datasheet | ELGTEA | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±30% | 1 A | - | Shielded | 150mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

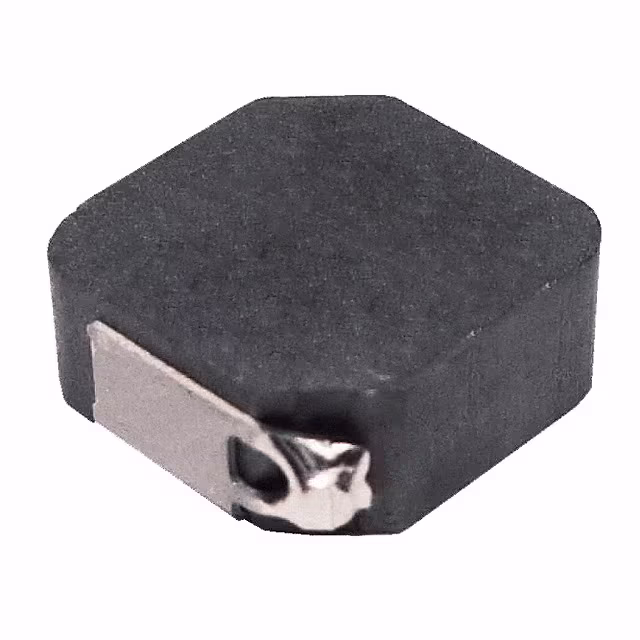

ETQ-P3WR82WFNFIXED IND 820NH 14A 8 MOHM SMD |
4,768 |
|
Datasheet | PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 820 nH | ±20% | 14 A | - | Shielded | 8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
ELC11D2R2FFIXED IND 2.2UH 5.3A 13 MOHM TH |
2,358 |
|
Datasheet | ELC11D | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5.3 A | - | Unshielded | 13mOhm | - | - | - | - | 10 kHz | - | Through Hole | Radial Lead | 0.453" Dia (11.50mm) | 0.547" (13.90mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
