Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-5PR1R5NFIXED IND 1.5UH 2.85A 25MOHM SMD |
1,692 |
|
Datasheet | R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 2.85 A | 4A | Shielded | 25mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

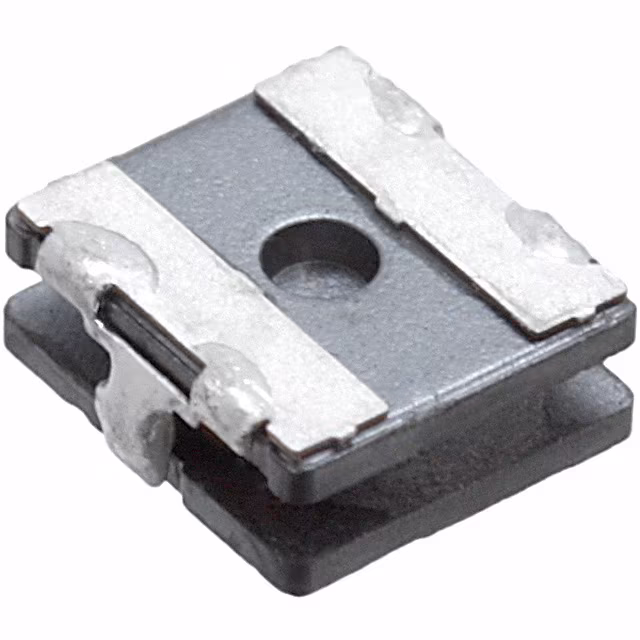

ELL-5PR2R2NFIXED IND 2.2UH 2.4A 32 MOHM SMD |
4,411 |
|
Datasheet | R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 2.4 A | 3.2A | Shielded | 32mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR3R3NFIXED IND 3.3UH 2.3A 37 MOHM SMD |
3,982 |
|
Datasheet | R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 2.3 A | 2.6A | Shielded | 37mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR4R7NFIXED IND 4.7UH 1.8A 56 MOHM SMD |
1,677 |
|
Datasheet | R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.8 A | 2.2A | Shielded | 56mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR6R8NFIXED IND 6.8UH 1.4A 85 MOHM SMD |
3,440 |
|
Datasheet | R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 1.4 A | 1.7A | Shielded | 85mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR100MFIXED IND 10UH 1.06A 150MOHM SMD |
3,168 |
|
Datasheet | R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±30% | 1.06 A | 1.4A | Shielded | 150mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ETQ-P3W1R0WFNFIXED IND 1UH 13A 7.9 MOHM SMD |
4,328 |
|
Datasheet | PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 1 µH | ±20% | 13 A | - | Shielded | 7.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

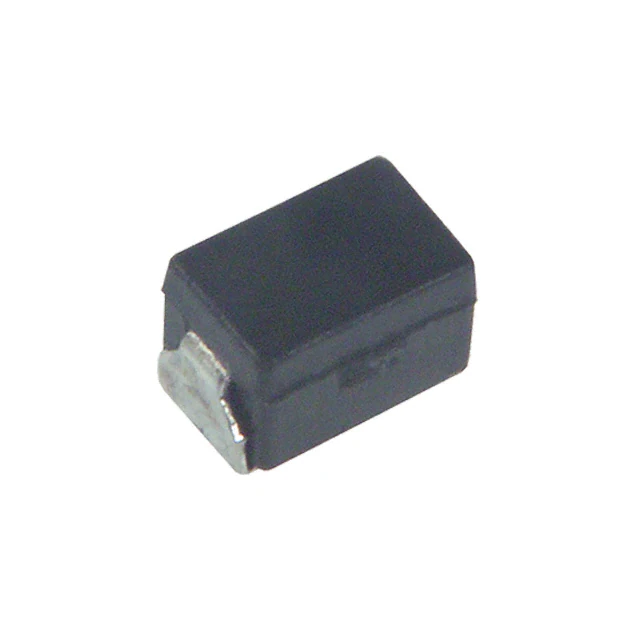

ELJ-PC2R2MF3FIXED IND 2.2UH 700MA 190MOHM SM |
4,170 |
|
Datasheet | PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 700 mA | 330mA | Unshielded | 190mOhm | - | 95MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-PC3R3MF3FIXED IND 3.3UH 650MA 220MOHM SM |
2,866 |
|
Datasheet | PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 650 mA | 260mA | Unshielded | 220mOhm | - | 75MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-PC4R7MF3FIXED IND 4.7UH 610MA 250MOHM SM |
4,821 |
|
Datasheet | PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 610 mA | 220mA | Unshielded | 250mOhm | - | 65MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
